ANSI FLANGE ADAPTOR WITH SPIGOT - (854.035.040 S)
×
![]()
Part Of the Series: Adaptor-flange-ANSI
Type no.: 854.035.040 S
EAN no.: 5705499413250
NRF no.: 2172718

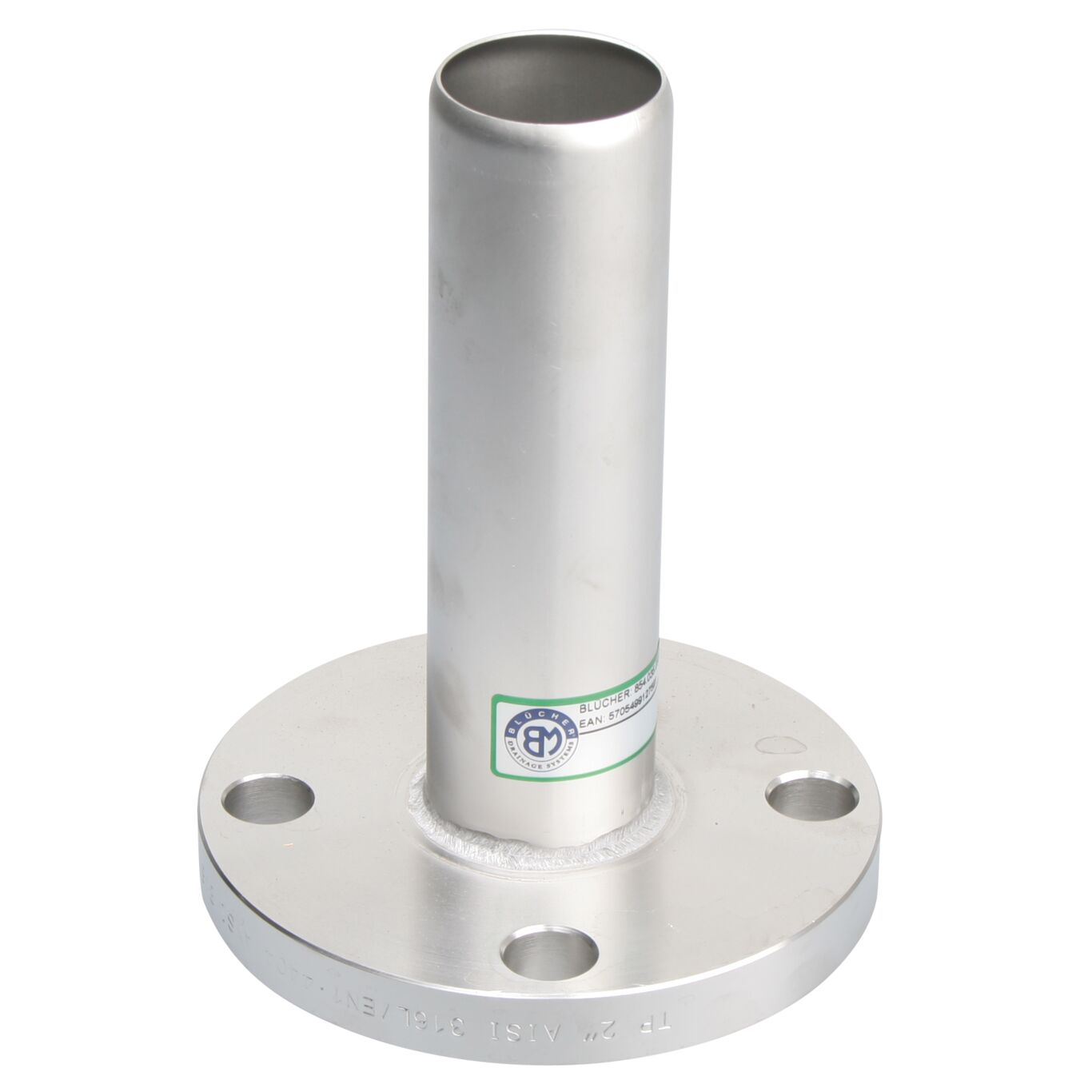

ANSI FLANGE ADAPTOR WITH SPIGOT

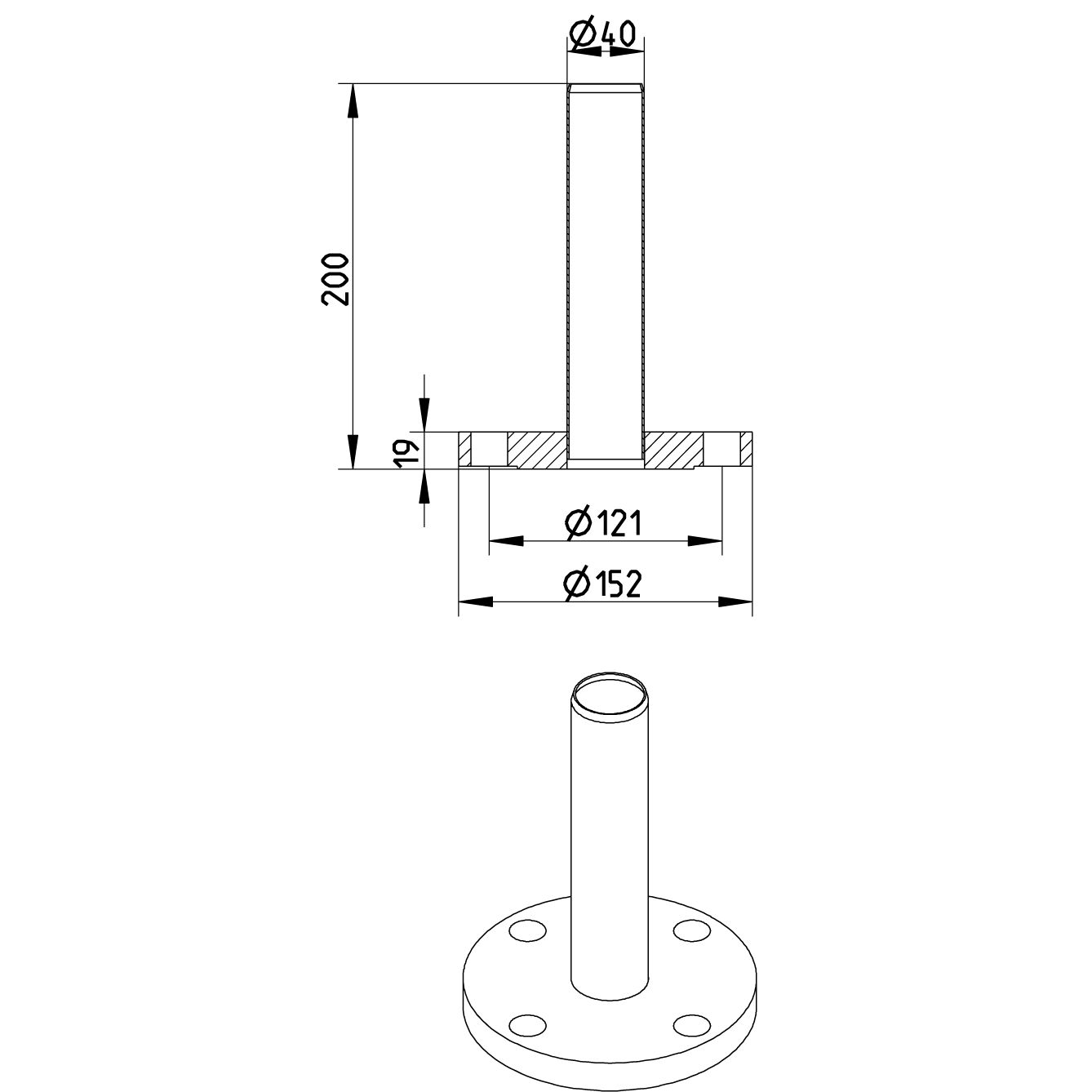

-Diameter: Ø40mm
-Flange ANSI B16.5
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 200 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 2,56 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
