BEND 30° - (820.030.050)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.050
EAN no.: 5705499401226
VVS no.: 160207050
RSK no.: 1550093
NRF no.: 2170044
LVI no.: 0240632

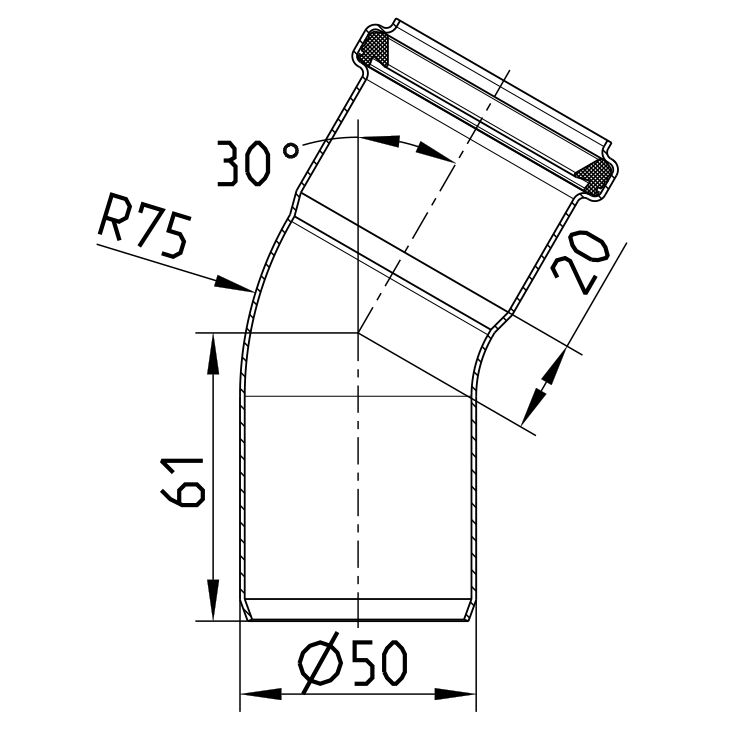

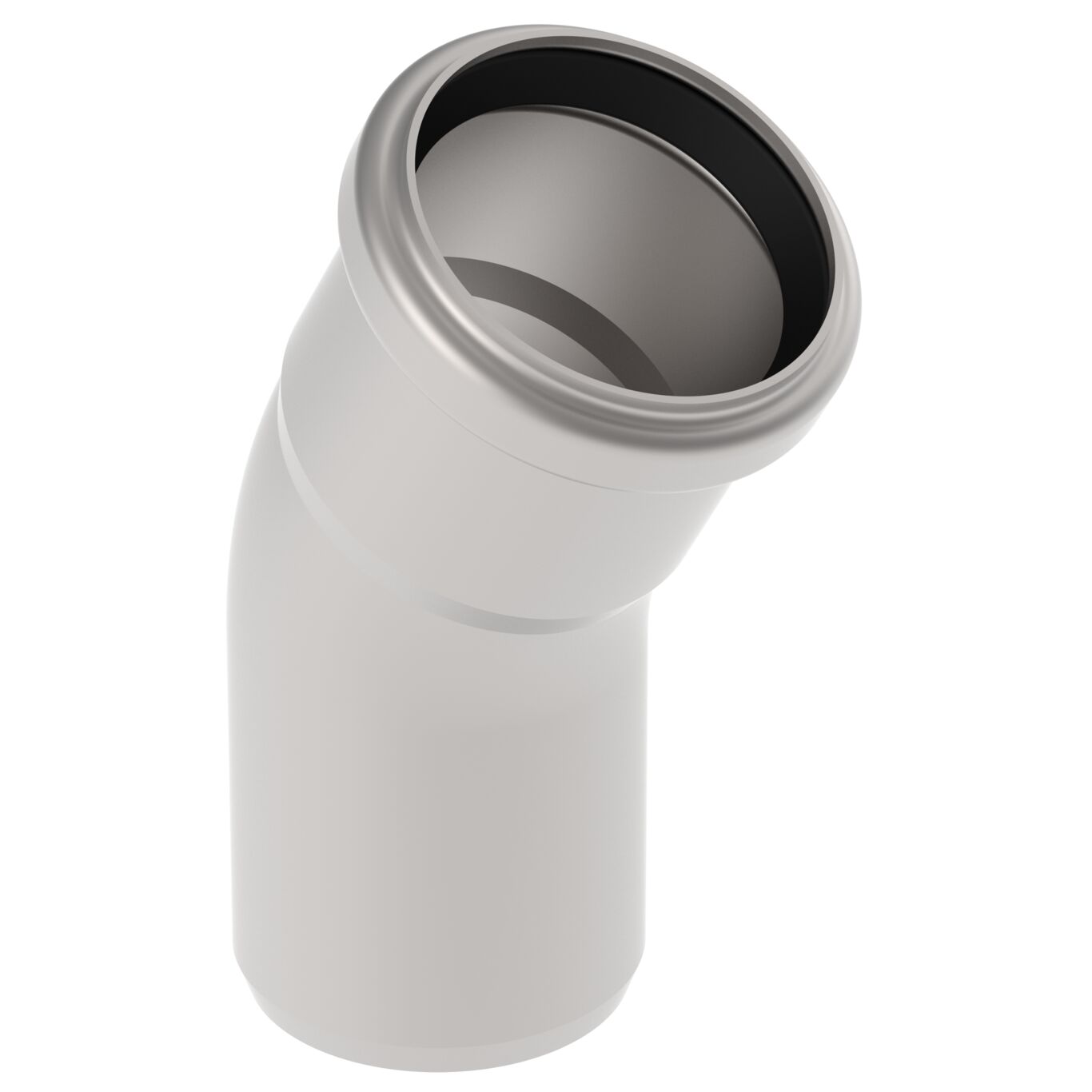

BEND 30°
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,16 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains
