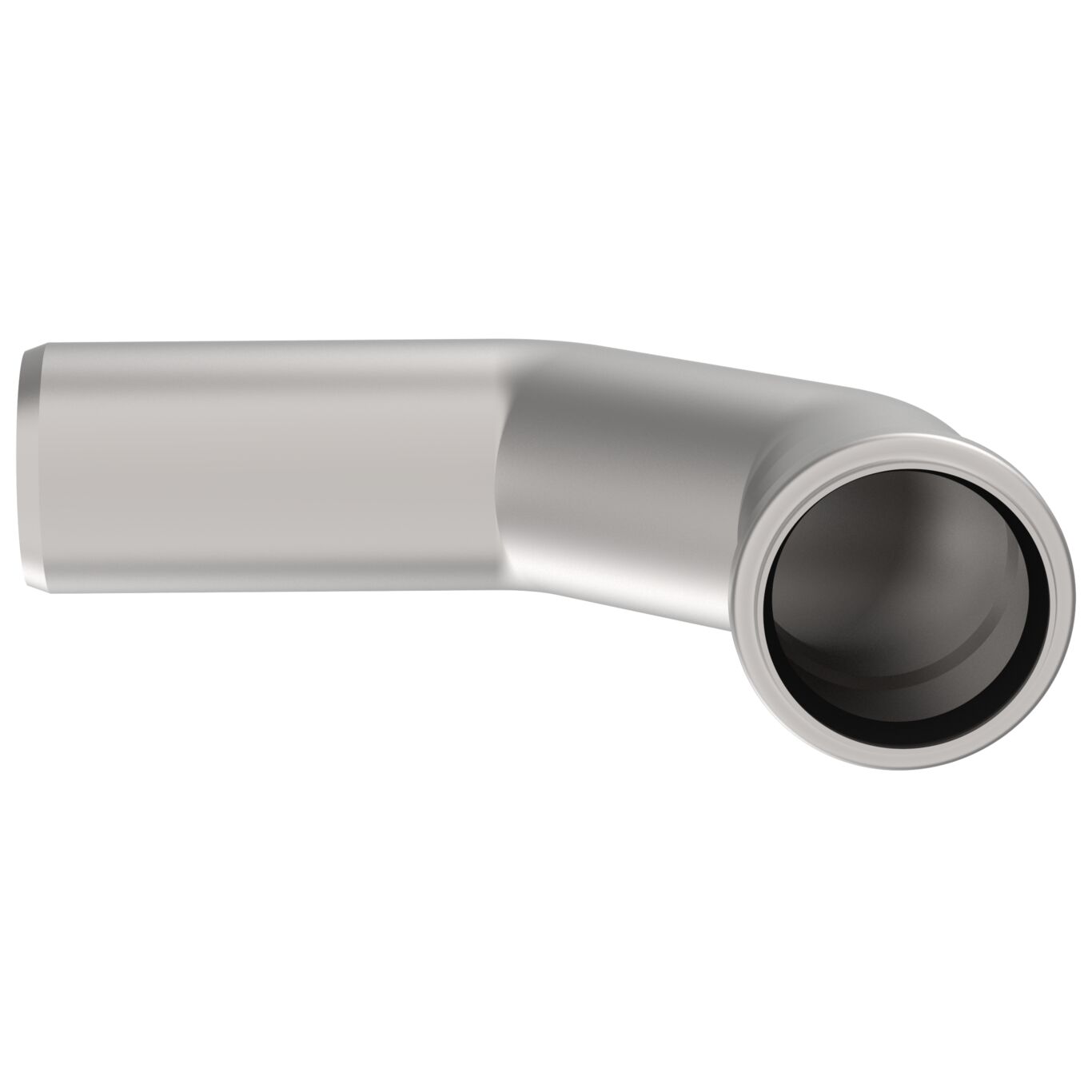

BEND, LONG 87.5°, 164 MM - (821.164.050 S)
×
![]()
Part Of the Series: Bend-87.5-long radius
Type no.: 821.164.050 S
EAN no.: 5705499124057
NRF no.: 2172544

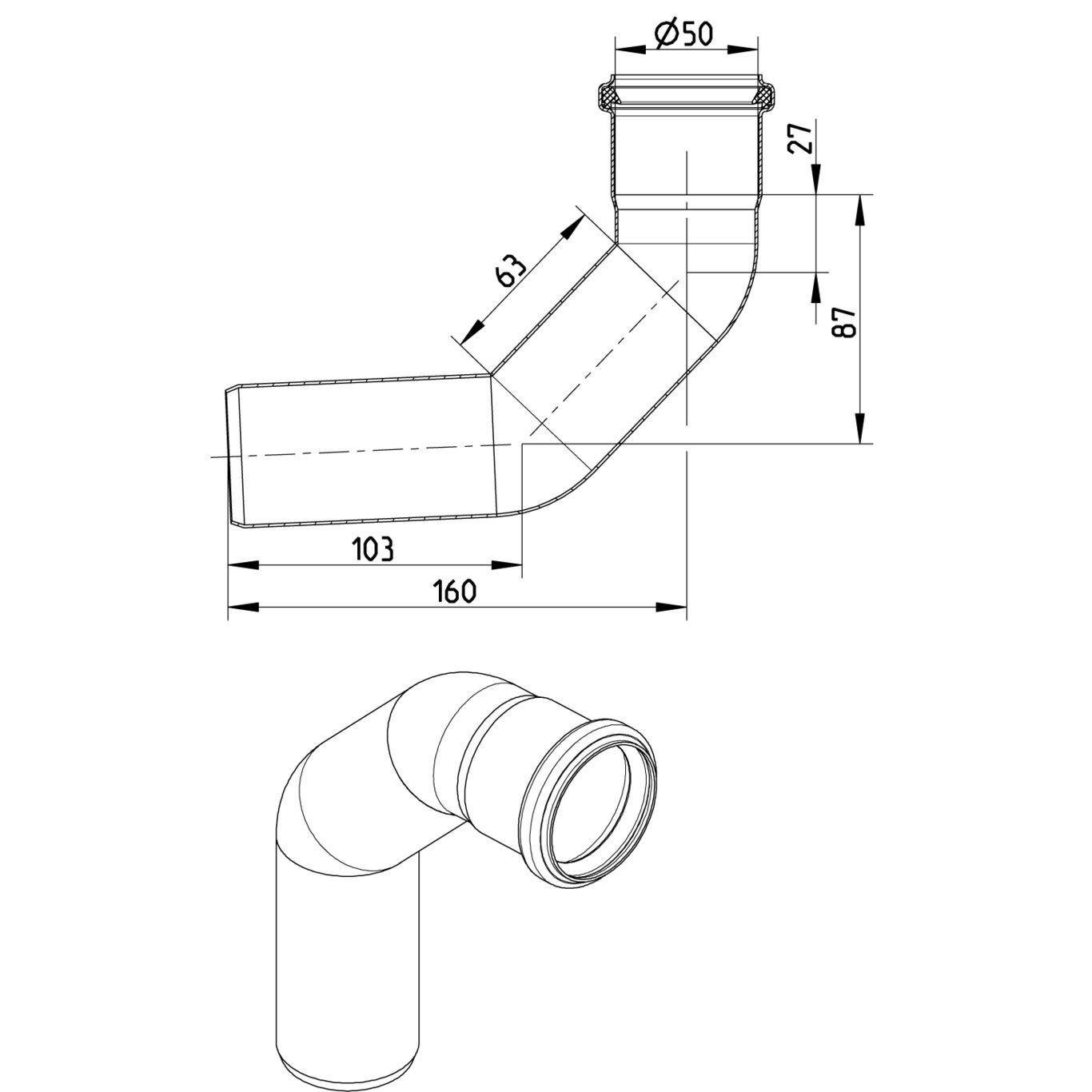

BEND, LONG 87.5°, 164 MM
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 87 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
