BEND 87.5° - (820.090.050 S)

Product Image - Bend-87.5

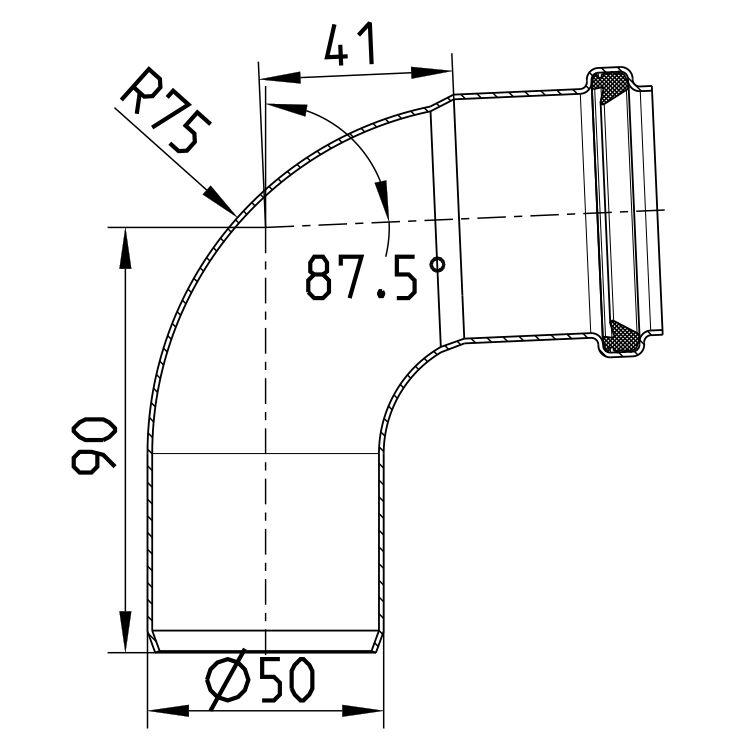

Line Drawing - Bend-87.5

Part Of the Series: Bend-87.5

Type no.: 820.090.050 S

EAN no.: 5705499401394

VVS no.: 160201350

RSK no.: 1550285

NRF no.: 2170764

LVI no.: 0250832

BEND 87.5°
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	87.5
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	50
Weight (kg)	0,21

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Australasia ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22

Find a Sales Representative

Find a Wholesaler/Distributor

Customer Support Access BIM Drawings

Share this Product

Product Accessories

Clamps

PIPE JOINT CLAMP - (847.050.050)

PRESSURE PEAK CLAMP - (847.001.050)

Oil and Lubricants

GLIDEX SILICONE LUBRICANT - (007.200.040)

JOINTING LUBRICANT 0.5 L - (007.100.050)

JOINTING LUBRICANT 0.5 L - (007.100.050 SIL)

Pipe Hangers

PIPE HANGER WITH EPDM - (895.300.050 GS)

PIPE HANGER WITH EPDM - (895.012.050 GS)

PIPE HANGER WITH TPE - (860.040.050)

PIPE HANGER WITH EPDM - (895.403.050 S)

PIPE HANGER WITH EPDM - (895.401.050)

PIPE HANGER WITH EPDM - (895.200.050 S)

PIPE HANGER WITH EPDM - (895.000.050 GS)

PIPE HANGER WITH EPDM - (895.012.050 AGS)

Plugs

SOCKET PLUG - (844.000.050 S)

SOCKET PLUG - (844.100.050 S)

SOCKET PLUG - (844.069.050)

Sealing Rings

NBR SEAL BLACK/YELLOW - (801.NBR.050)

EPDM LIP SEALING BLACK, Ø50MM - (801.EPDM.050)

FPM LIP SEALING GREEN, Ø50MM - (801.FPM.050)

Tools

DIMPLING JAWS - (800.200.001)
