OBLIQUE BRANCH 45° - (838.075.082 S)

Part Of the Series: Branch-45

Type no.: 838.075.082 S

EAN no.: 5705499412017

VVS no.: 160224381

NRF no.: 2172631

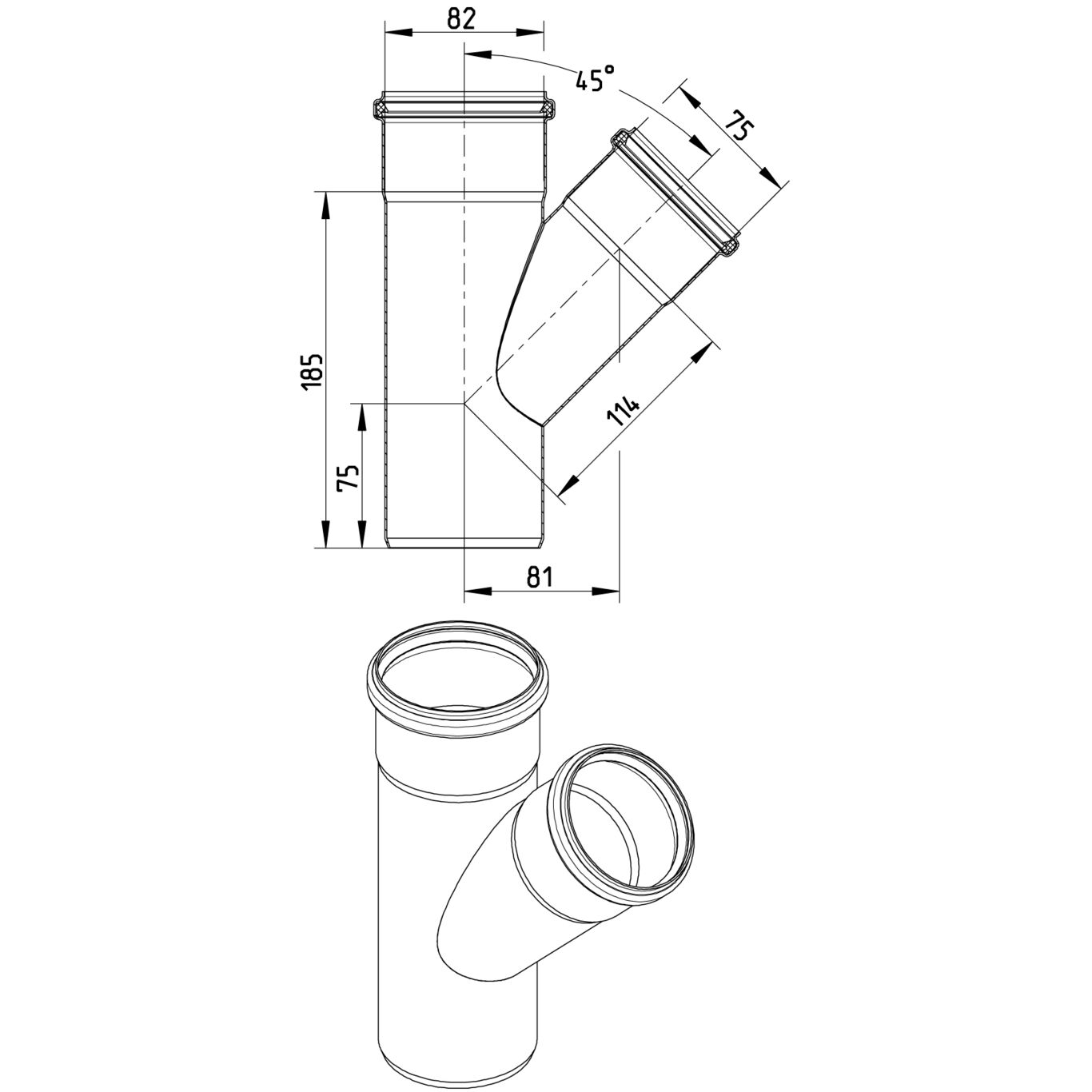

OBLIQUE BRANCH 45°
-Pipe diameter: Ø82mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
All Renovation 82 products	RS82
Angle (°)	45
Length (mm)	185
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	82
Weight (kg)	0,70

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

DK - VA 2.12/19349 EuroPipe DS432 US - IAPMO File No.3247-EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings

Find a Sales Representative

Find a Wholesaler/Distributor

Customer Support Access BIM Drawings
