OBLIQUE BRANCH 45° - (838.075.125)

Part Of the Series: Branch-45

Type no.: 838.075.125

EAN no.: 5705499409314

VVS no.: 160224122

RSK no.: 1551533

NRF no.: 2170115

LVI no.: 0246020

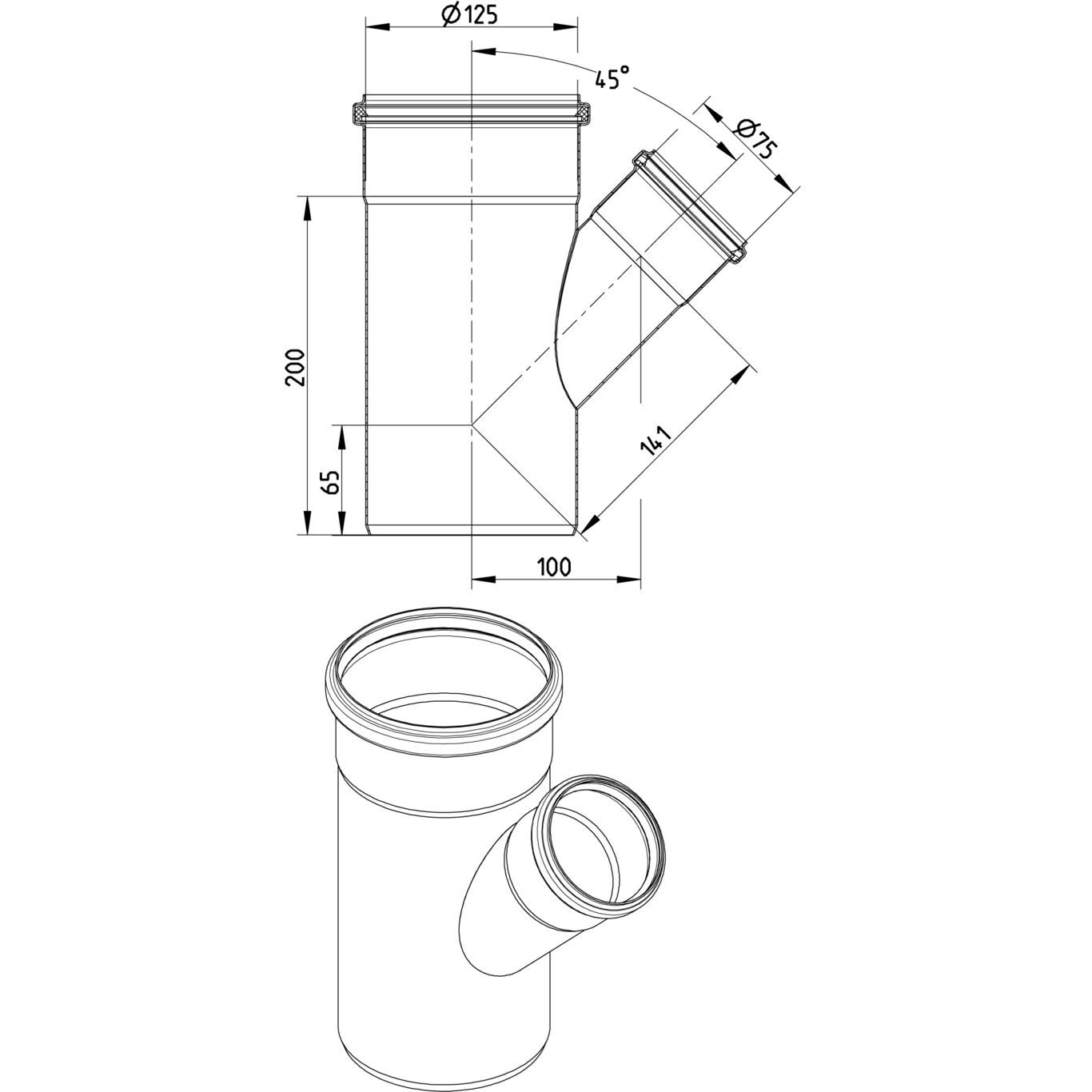

OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301

Product Specification
Angle (°)	45
Length (mm)	200
Material	AISI 304
Material (EN)	EN 1.4301
Outlet Diameter (mm)	125
Weight (kg)	1,32

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001
