OBLIQUE BRANCH 45° - (838.082.082)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.082.082
EAN no.: 5705499412024
VVS no.: 160224082
NRF no.: 2172358

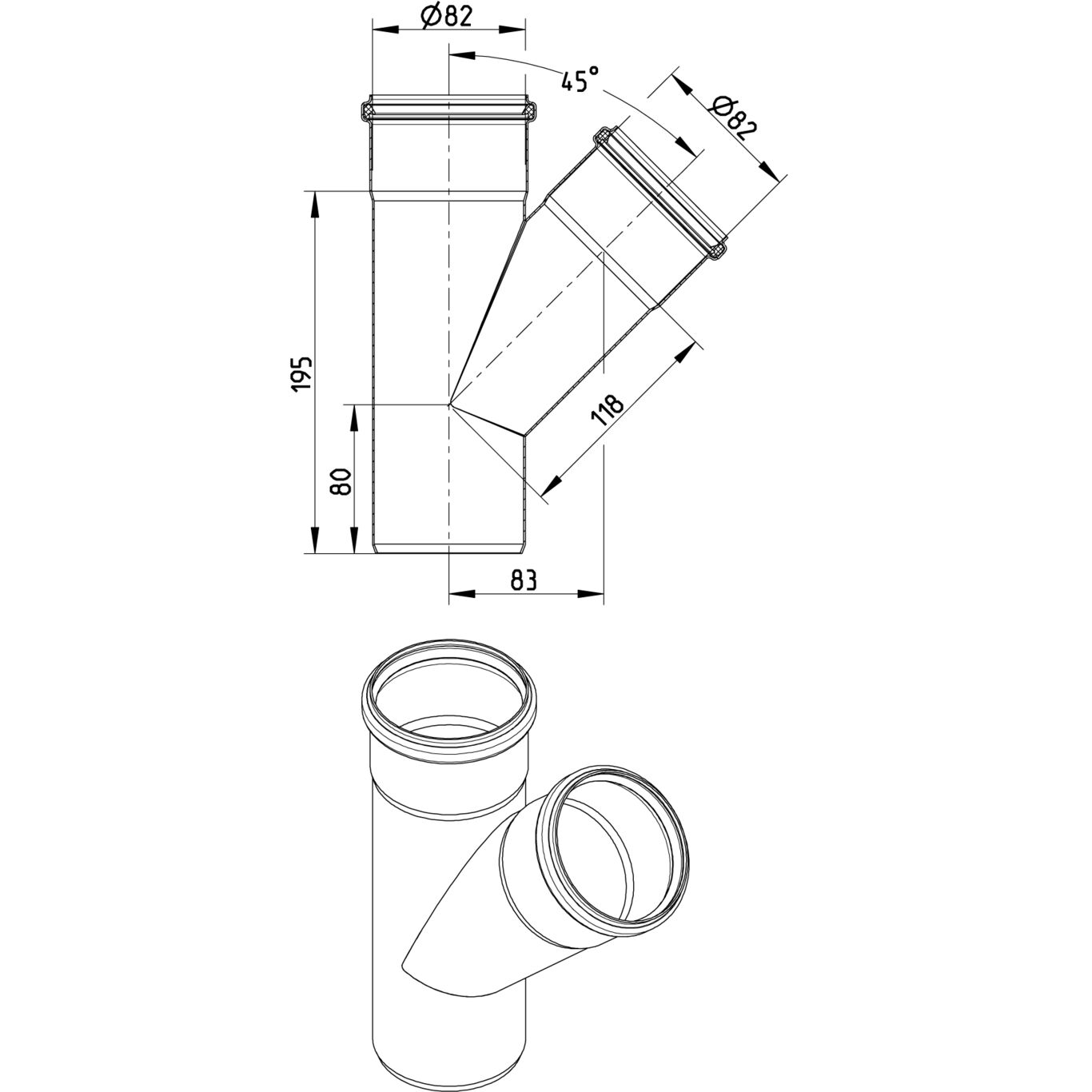

OBLIQUE BRANCH 45°
-Pipe diameter: Ø82mm. Branch diameter: Ø82mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| All Renovation 82 products | RS82 |
| Angle (°) | 45 |
| Length (mm) | 195 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 82 |
| Weight (kg) | 0,75 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02
