OBLIQUE BRANCH 45° - (838.110.110)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.110.110
EAN no.: 5705499402452
VVS no.: 160224110
RSK no.: 1550112
NRF no.: 2170099
LVI no.: 0241160

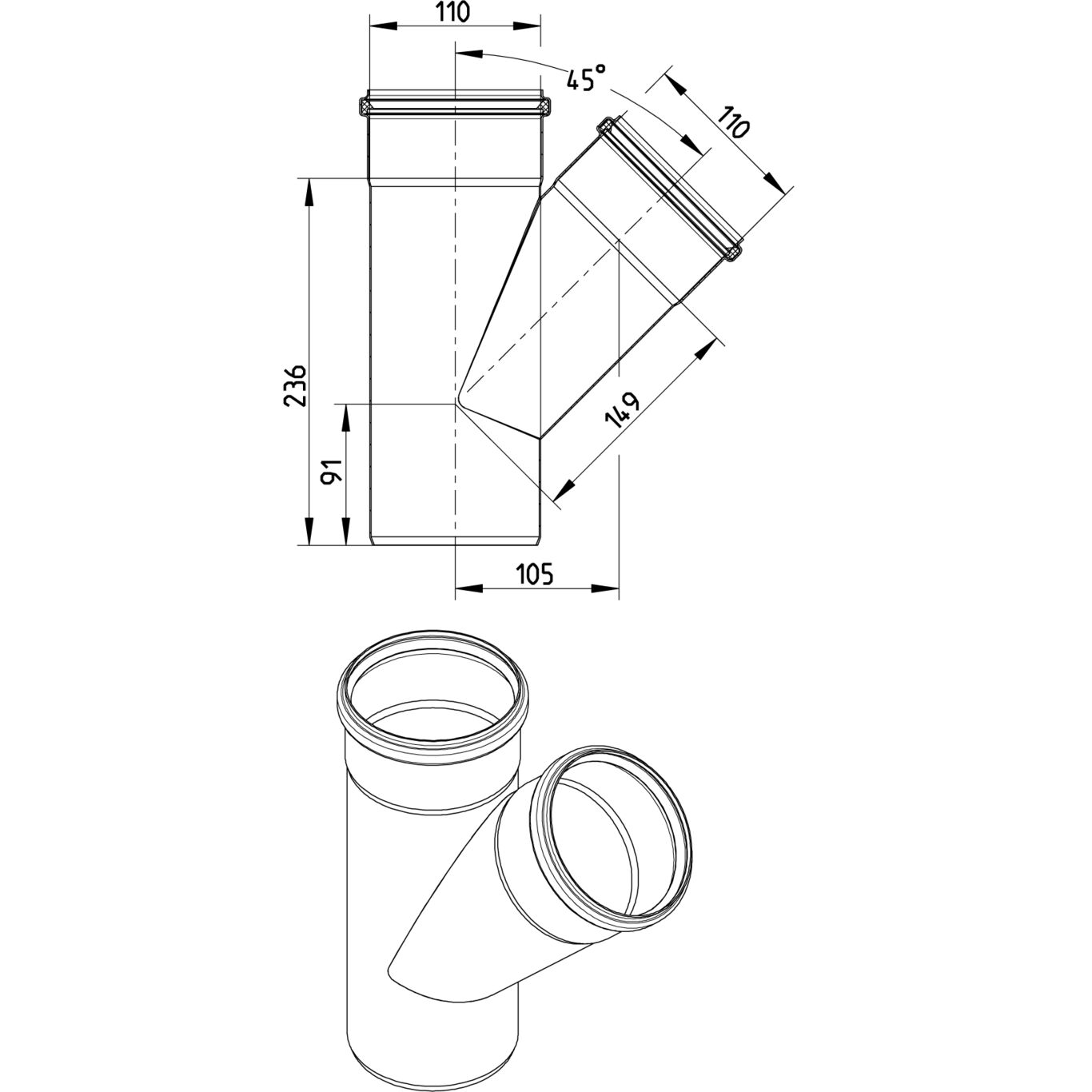

OBLIQUE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 236 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,16 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings
