OBLIQUE BRANCH 45° - (838.110.160)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.110.160
EAN no.: 5705499402476
VVS no.: 160224157
RSK no.: 1550123
NRF no.: 2170106
LVI no.: 0241164

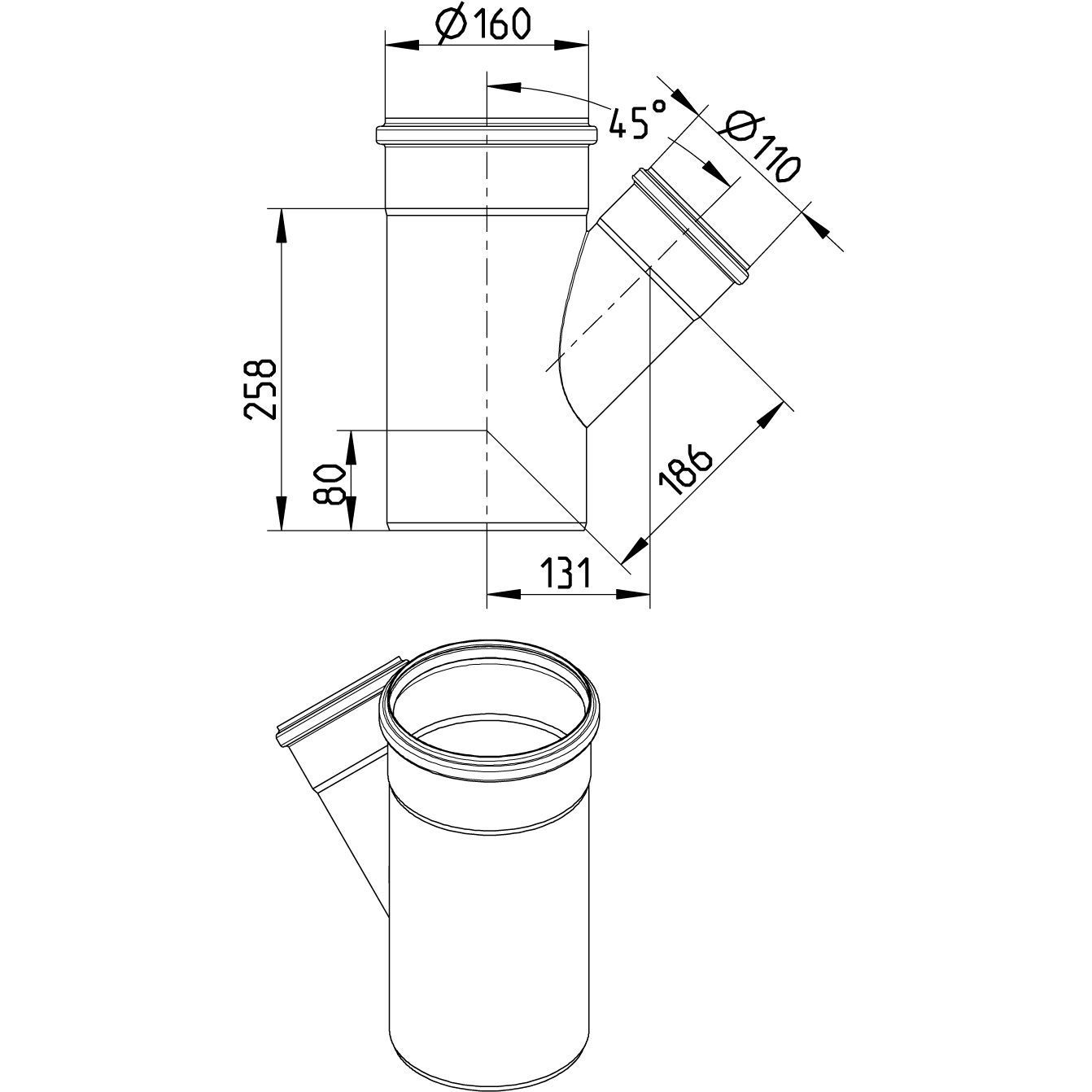

OBLIQUE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 258 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,11 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
