OBLIQUE BRANCH 45° - (838.200.200 S)

Product Image - Branch-45

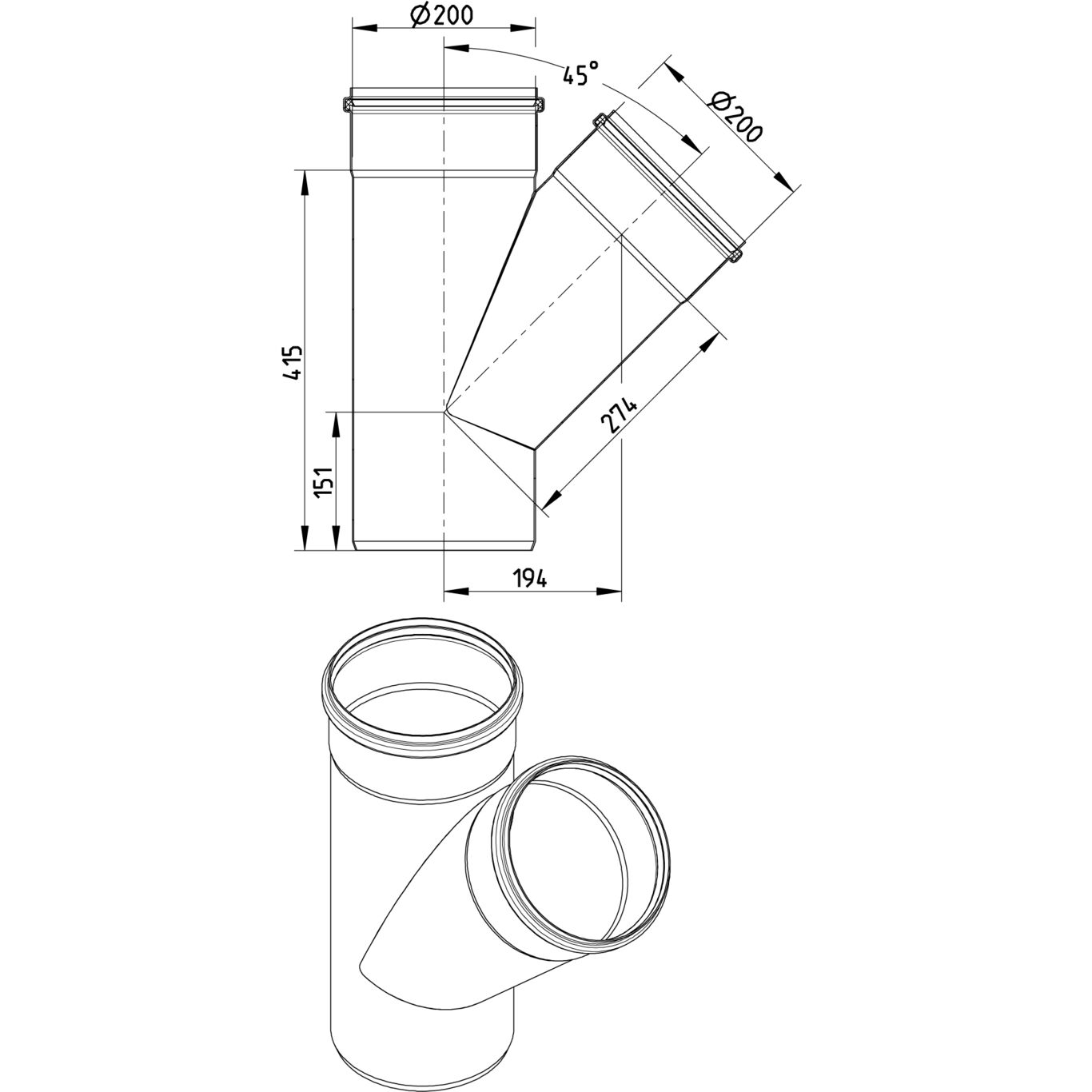

Line Drawing - Branch-45

Part Of the Series: Branch-45

Type no.: 838.200.200 S

EAN no.: 5705499411034

VVS no.: 160224500

RSK no.: 1551552

NRF no.: 2170842

LVI no.: 0251169

OBLIQUE BRANCH 45°
-Pipe diameter: Ø200mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	45
Length (mm)	415
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	200
Weight (kg)	5,47

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

DK - VA 2.12/19350 US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Australasia MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products
