OBLIQUE BRANCH 45° - (838.250.315 S)

Product Image - Branch-45

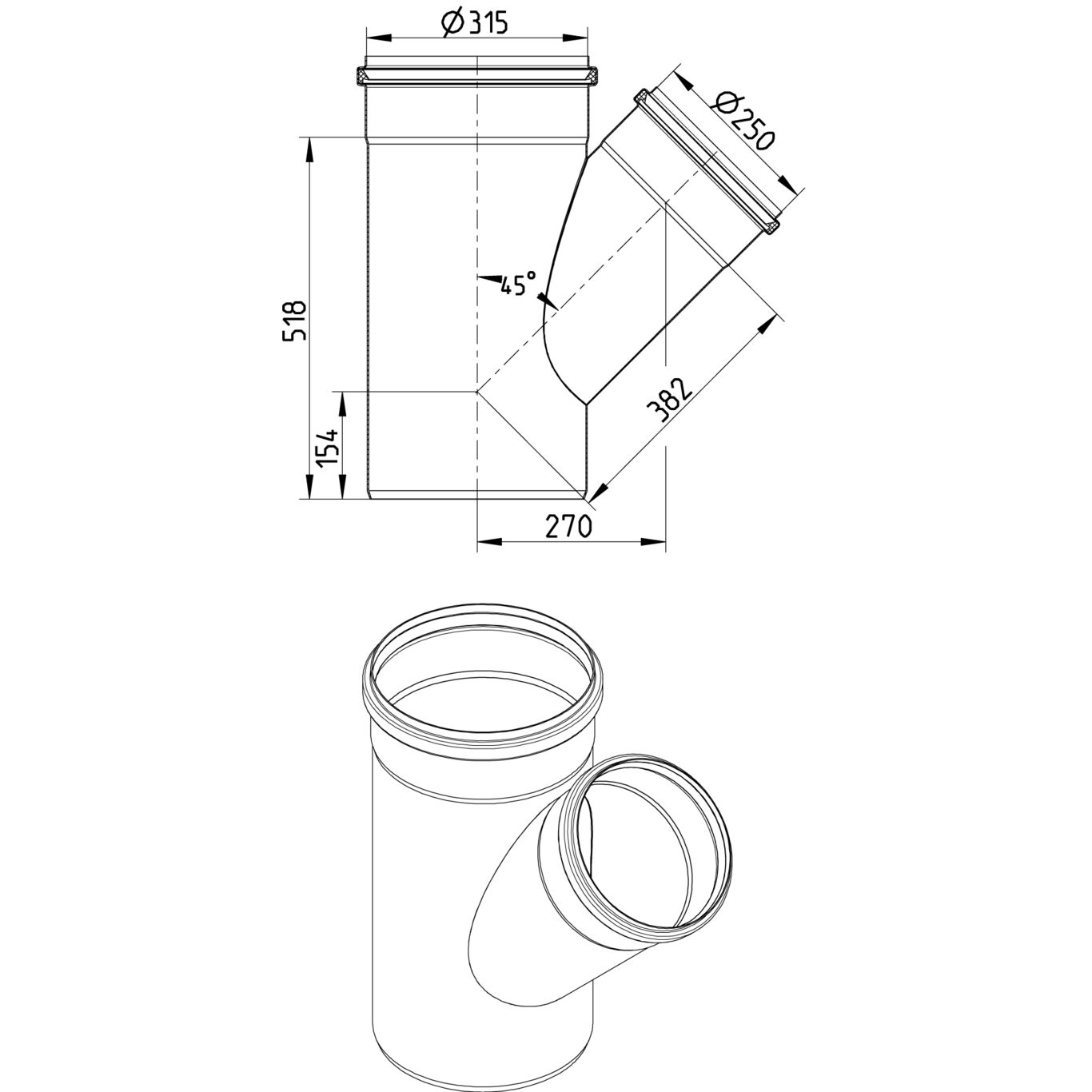

Line Drawing - Branch-45

Part Of the Series: Branch-45

Type no.: 838.250.315 S

EAN no.: 5705499413878

VVS no.: 160224614

NRF no.: 2172633

LVI no.: 0251172

OBLIQUE BRANCH 45°
-Pipe diameter: Ø315mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	45
Length (mm)	518
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	315
Weight (kg)	12,48

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia DK - VA 2.12/19350 HACCP Food Safety Programme - Europe DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products
