BRANCH 67.5° - (829.075.075)
Part Of the Series: Branch-67.5
Type no.: 829.075.075
EAN no.: 5705499401592
VVS no.: 160223075
NRF no.: 2172331
LVI no.: 0246012

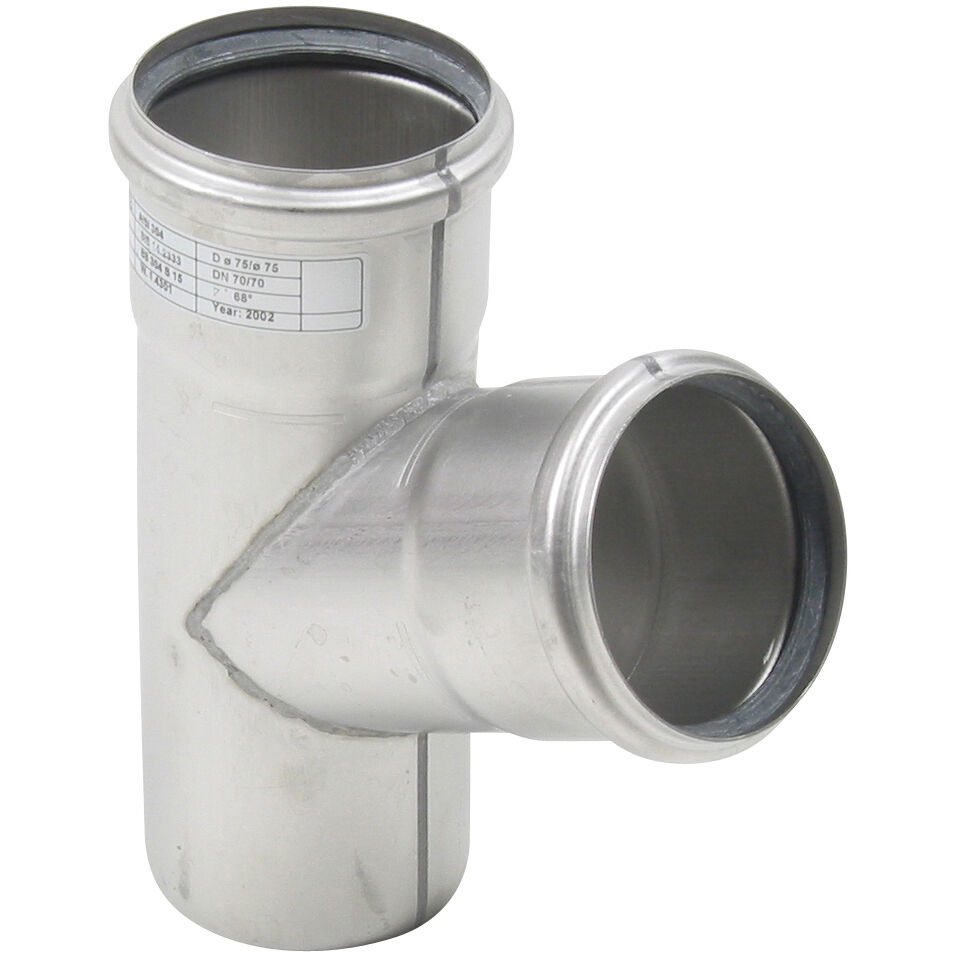

BRANCH 67.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301

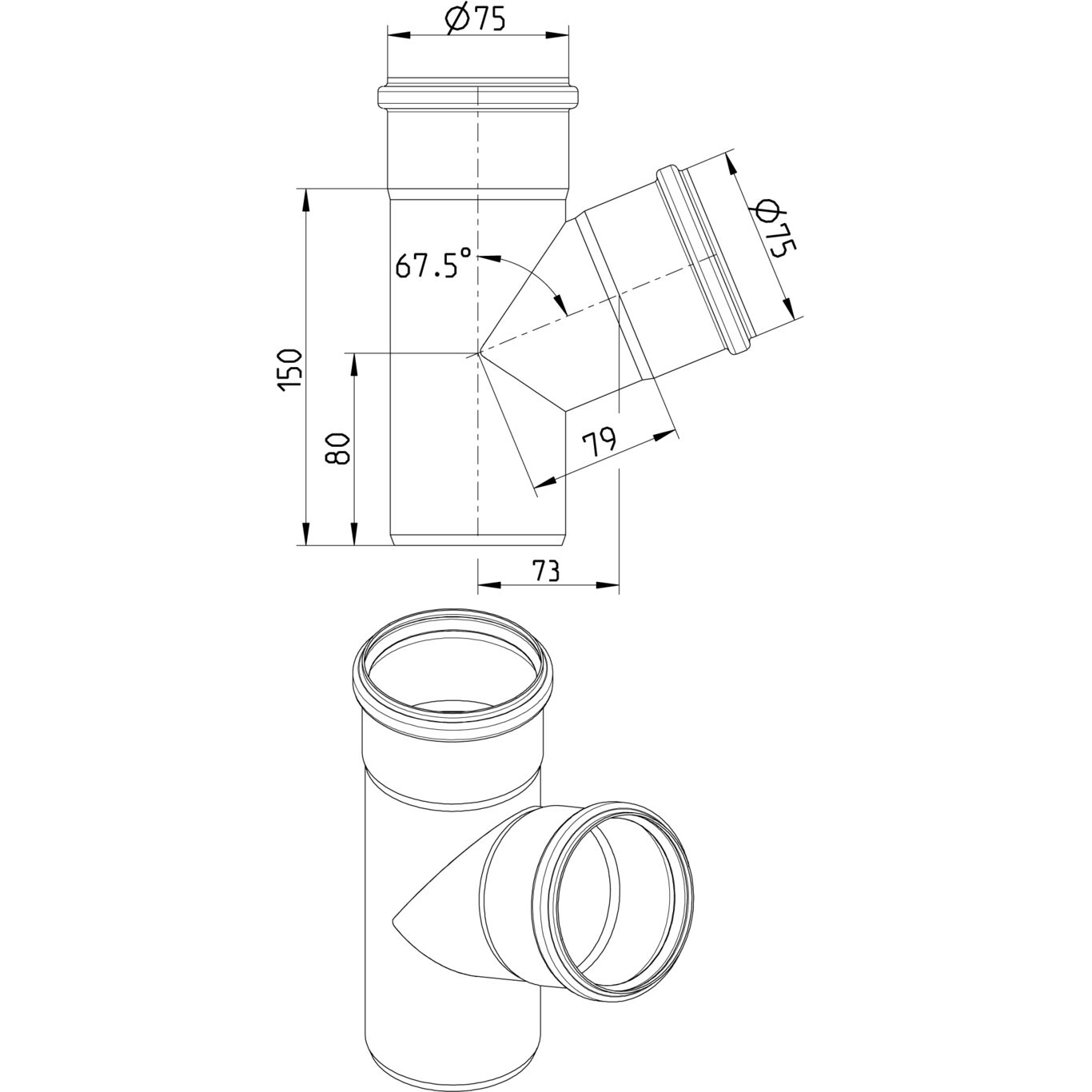

Product Specification | |
---|---|
Angle (°) | 67.5 |
Length (mm) | 150 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 0,53 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
