BRANCH 87.5° - (830.040.050)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.040.050
EAN no.: 5705499412956
VVS no.: 160221049
RSK no.: 1552787
NRF no.: 2171207
LVI no.: 0241952
BRANCH 87.5°

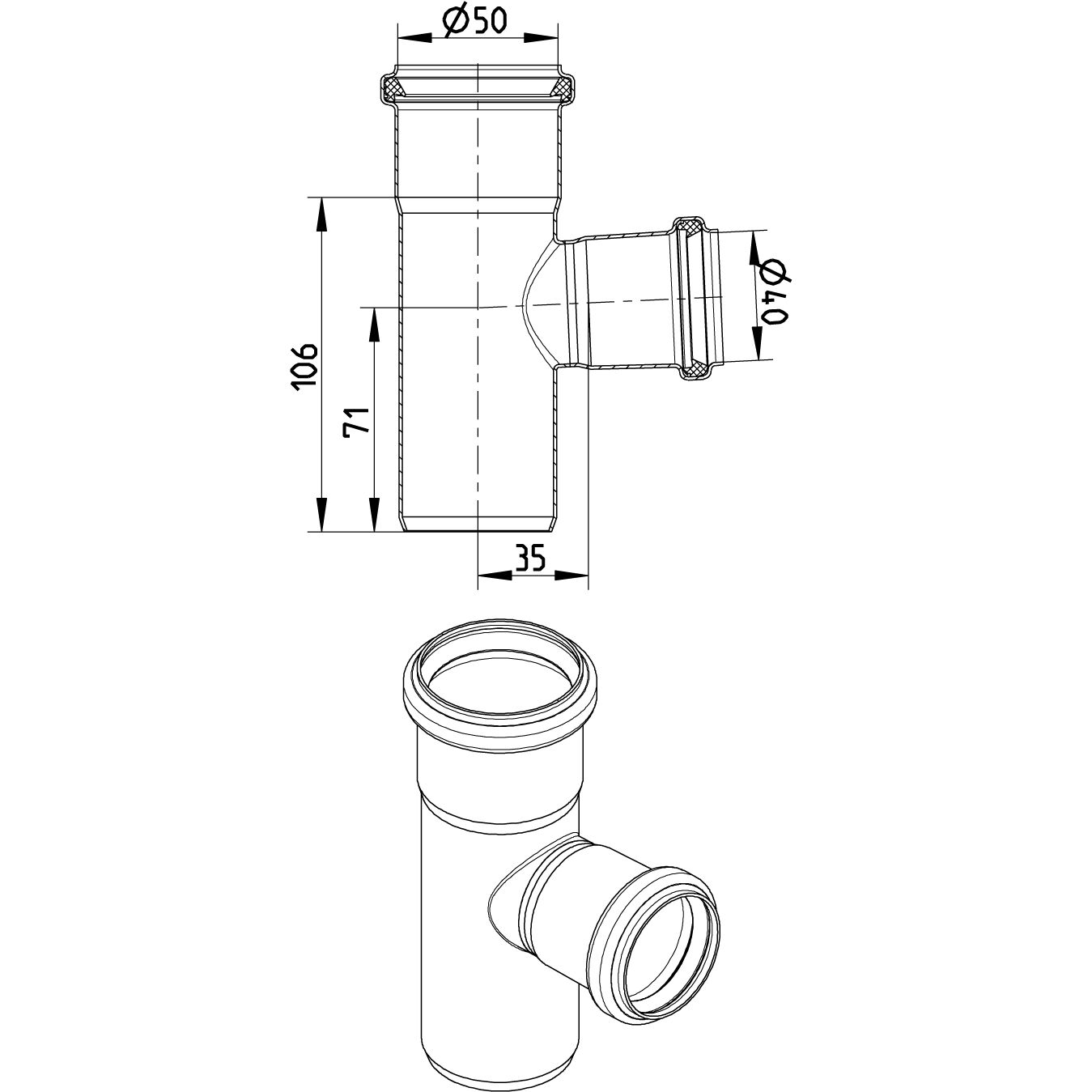

-Pipe diameter: Ø50mm. Branch diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 106 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,26 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22
