BRANCH 87.5° - (830.050.075 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.050.075 S
EAN no.: 5705499401639
VVS no.: 160221373
RSK no.: 1550304
NRF no.: 2170813
LVI no.: 0251955

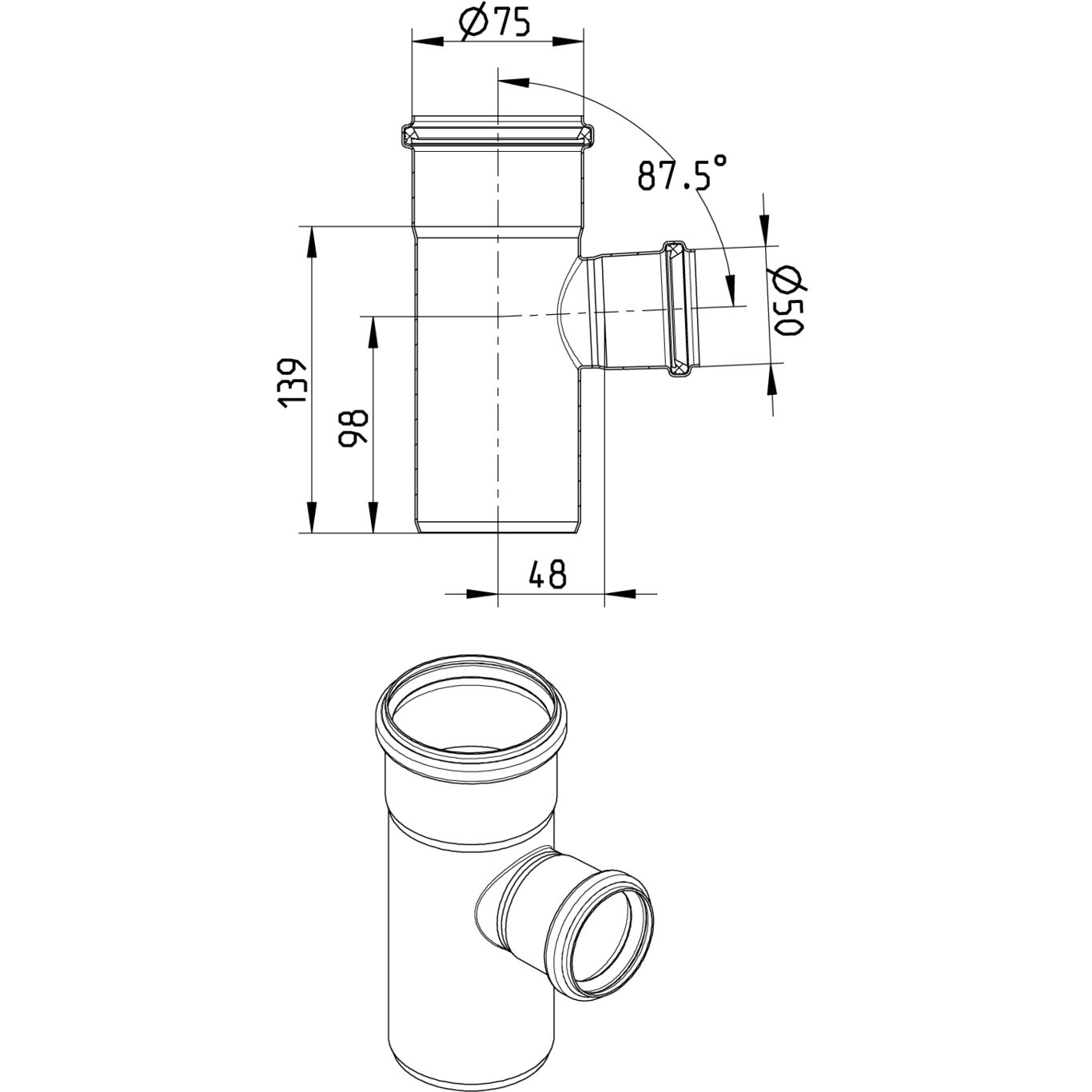

BRANCH 87.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,44 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001
