BRANCH 87.5° - (830.050.160)

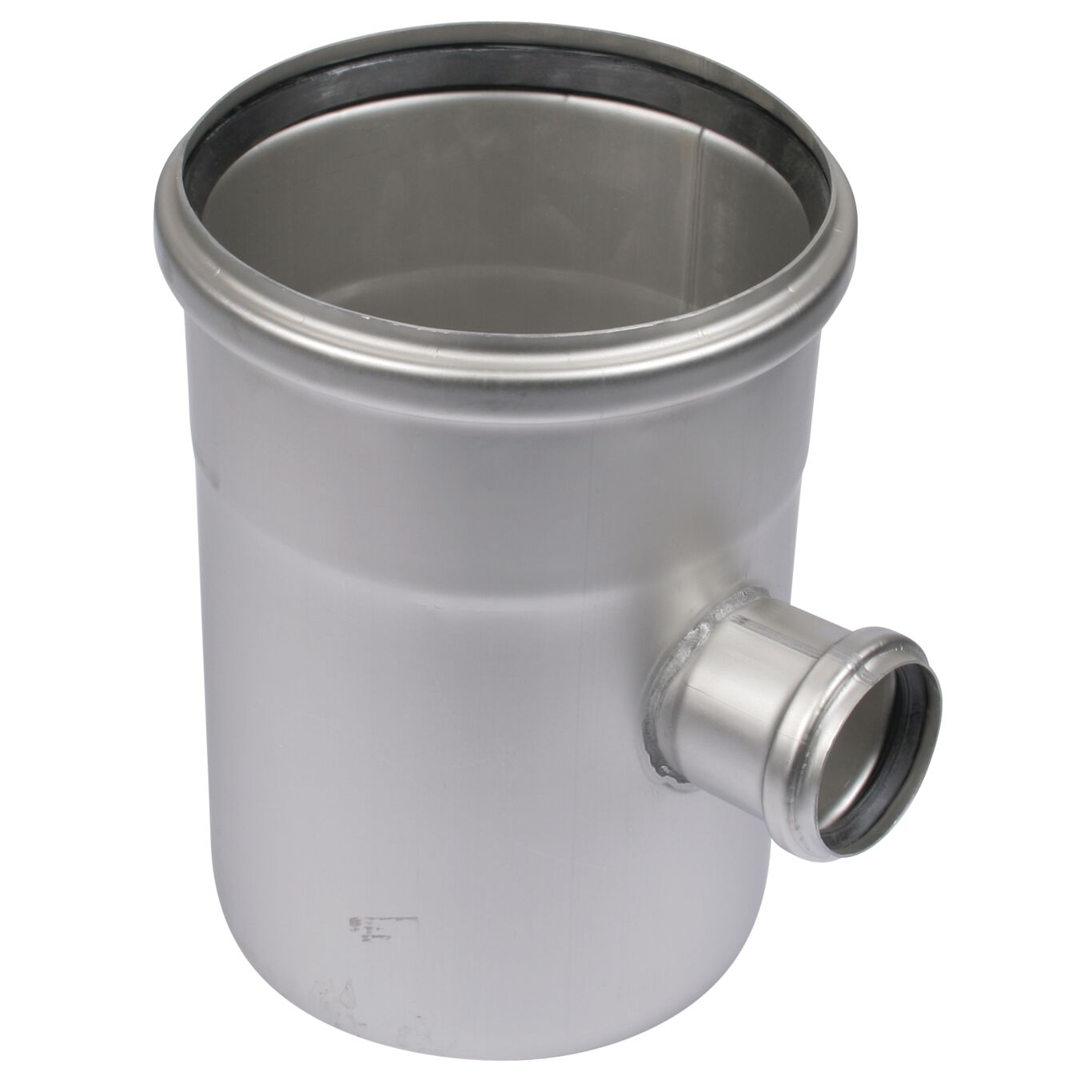

Product Image - Branch-89

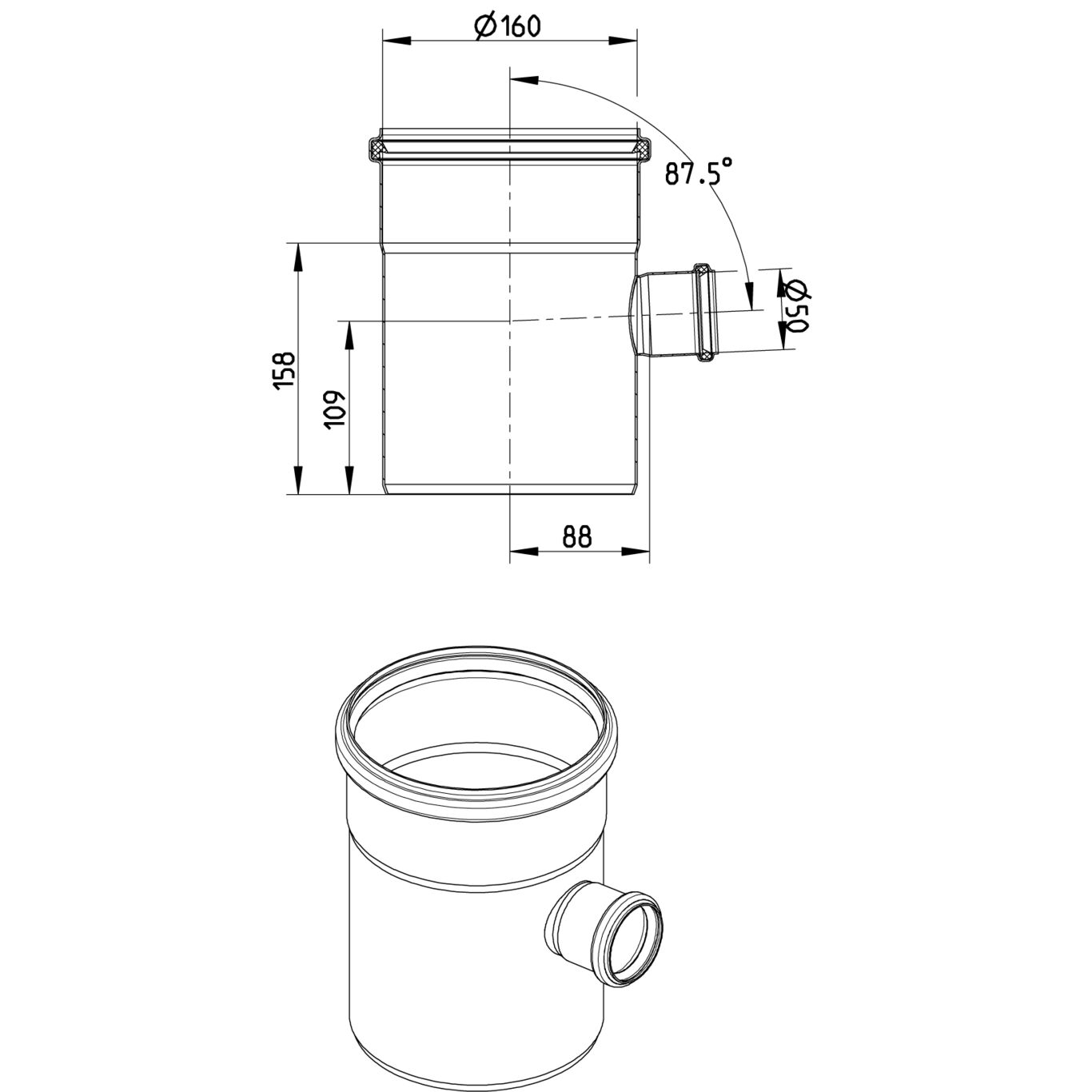

Line Drawing - Branch-87.5
×

Part Of the Series: Branch-87.5

Type no.: 830.050.160

EAN no.: 5705499401660

NRF no.: 2172336

LVI no.: 0246014

BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301

Product Specification
Angle (°) 87.5
Length (mm) 158
Material AISI 304
Material (EN) EN 1.4301
Outlet Diameter (mm) 160
Weight (kg) 2,40
Find a Sales Representative
Find a Wholesaler/Distributor
Customer Support Access BIM Drawings

Share this Product

Product Accessories

Clamps

PRESSURE PEAK CLAMP - (847.001.050)

PIPE JOINT CLAMP - (847.050.050)

PRESSURE PEAK CLAMP - (847.001.160)

PIPE JOINT CLAMP - (847.160.160)

Oil and Lubricants

JOINTING LUBRICANT 0.5 L - (007.100.050)

Pipe Hangers

PIPE HANGER WITH EPDM - (895.401.050)

PIPE HANGER WITH EPDM - (895.403.050 S)

PIPE HANGER WITH EPDM - (895.401.160)

PIPE HANGER WITH EPDM - (895.200.050 S)

PIPE HANGER WITH EPDM - (895.403.160 S)

PIPE HANGER WITH TPE - (860.040.050)

PIPE HANGER WITH EPDM - (895.300.050 GS)

PIPE HANGER WITH EPDM - (895.012.160 AGS)

PIPE HANGER WITH TPE - (860.040.160)

PIPE HANGER WITH EPDM - (895.000.160 GS)

PIPE HANGER WITH EPDM - (895.200.160 S)

PIPE HANGER WITH EPDM - (895.012.050 AGS)

PIPE HANGER WITH EPDM - (895.012.050 GS)

PIPE HANGER WITH EPDM - (895.000.050 GS)

PIPE HANGER WITH EPDM - (895.402.160)

PIPE HANGER WITH EPDM - (895.300.160 GS)

PIPE HANGER WITH EPDM - (895.012.160 GS)

Plugs

SOCKET PLUG - (844.100.050 S)

SOCKET PLUG - (844.000.160 S)

SOCKET PLUG - (845.000.160 S)

SOCKET PLUG - (844.000.050 S)

Sealing Rings

FPM LIP SEALING GREEN, Ø160MM - (801.FPM.160)

EPDM LIP SEALING BLACK, Ø160MM - (801.EPDM.160)

FPM LIP SEALING GREEN, Ø50MM - (801.FPM.050)

NBR SEAL BLACK/YELLOW - (801.NBR.050)

EPDM LIP SEALING BLACK, Ø50MM - (801.EPDM.050)

NBR SEAL BLACK/YELLOW - (801.NBR.160)

Tools

ASSEMBLY TOOL - (806.000.160)

DIMPLING JAWS - (800.200.001)
