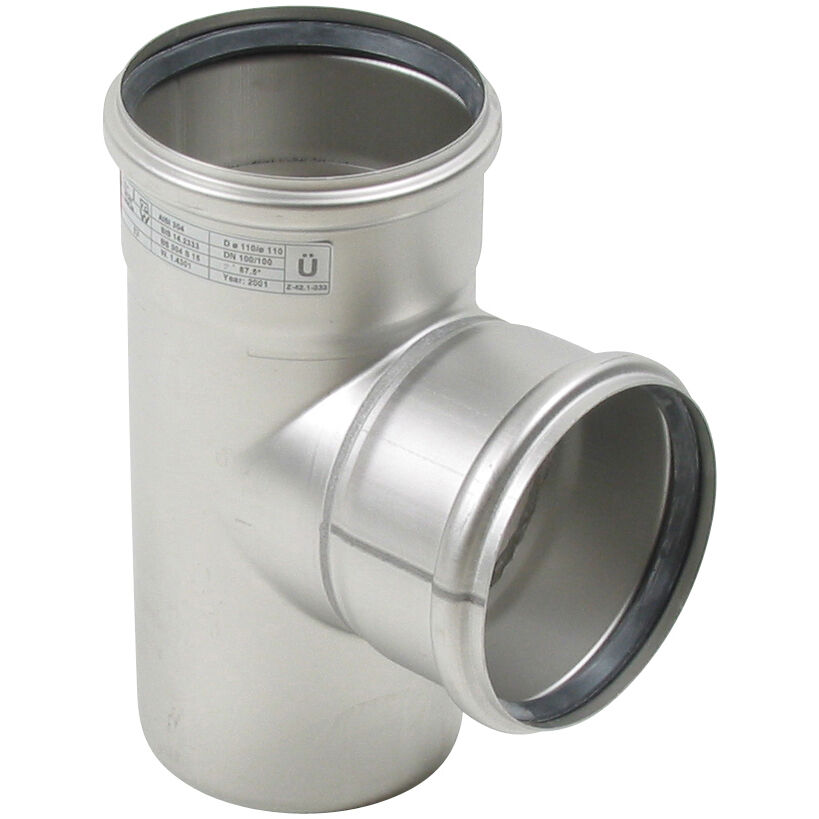

BRANCH 87.5° - (830.110.110)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.110.110
EAN no.: 5705499401721
VVS no.: 160221110
RSK no.: 1550105
NRF no.: 2170126
LVI no.: 0241960

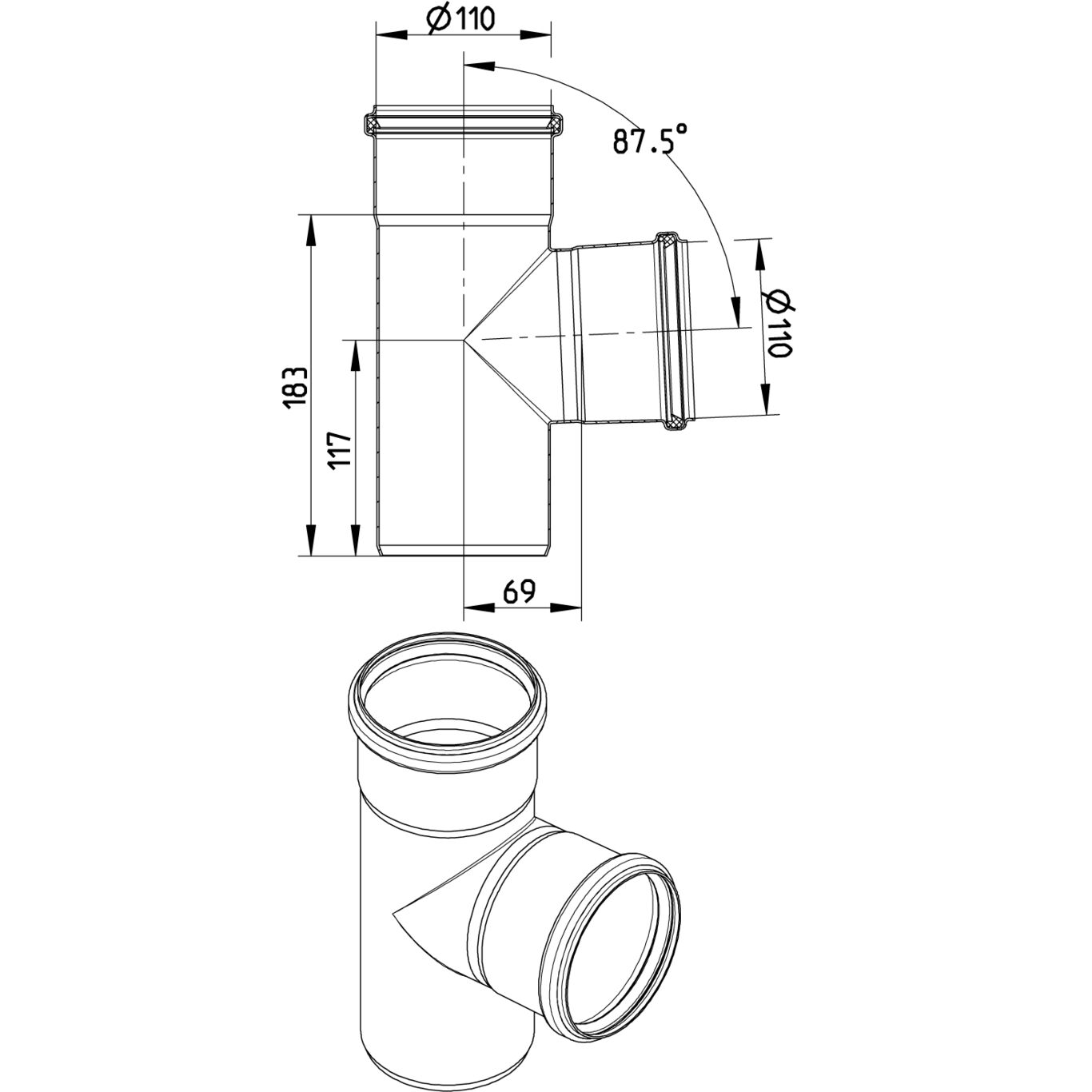

BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 183 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,88 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19350
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 MARINE - R4547 NATO CODIFICATION SYSTEM
