BRANCH 87.5° - (830.160.160 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.160.160 S
EAN no.: 5705499401776
VVS no.: 160221460
RSK no.: 1550301
NRF no.: 2170828
LVI no.: 0251965

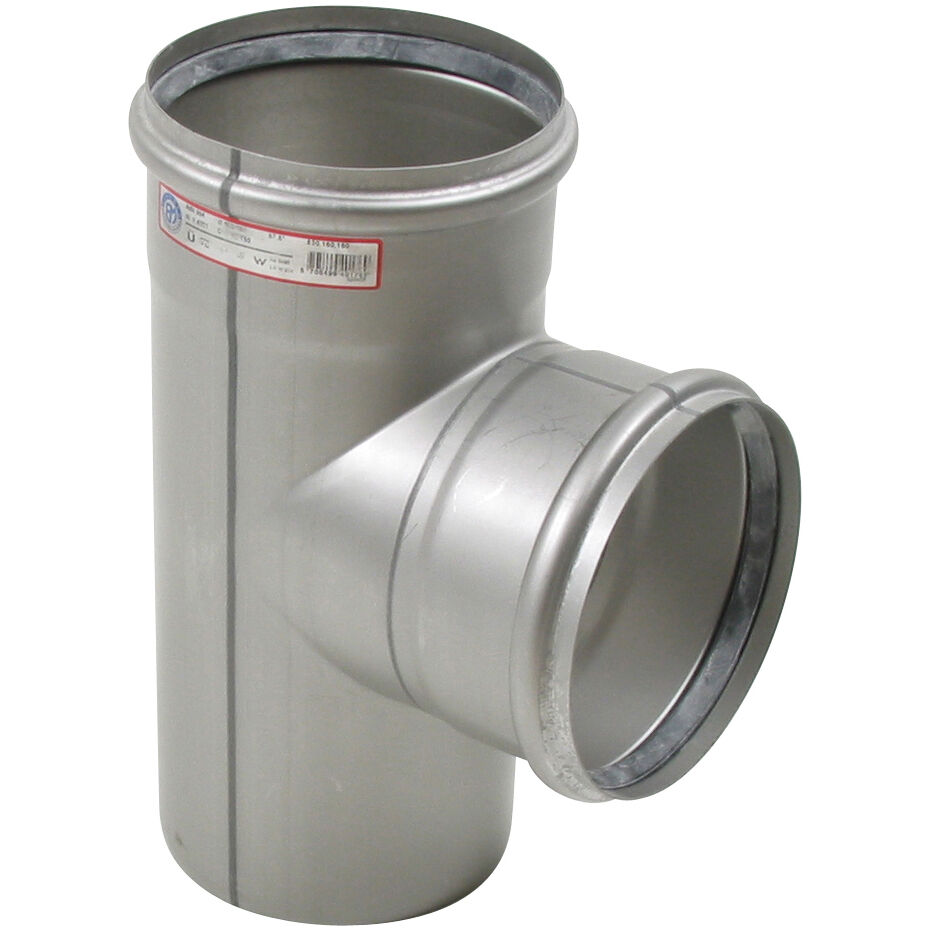

BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404

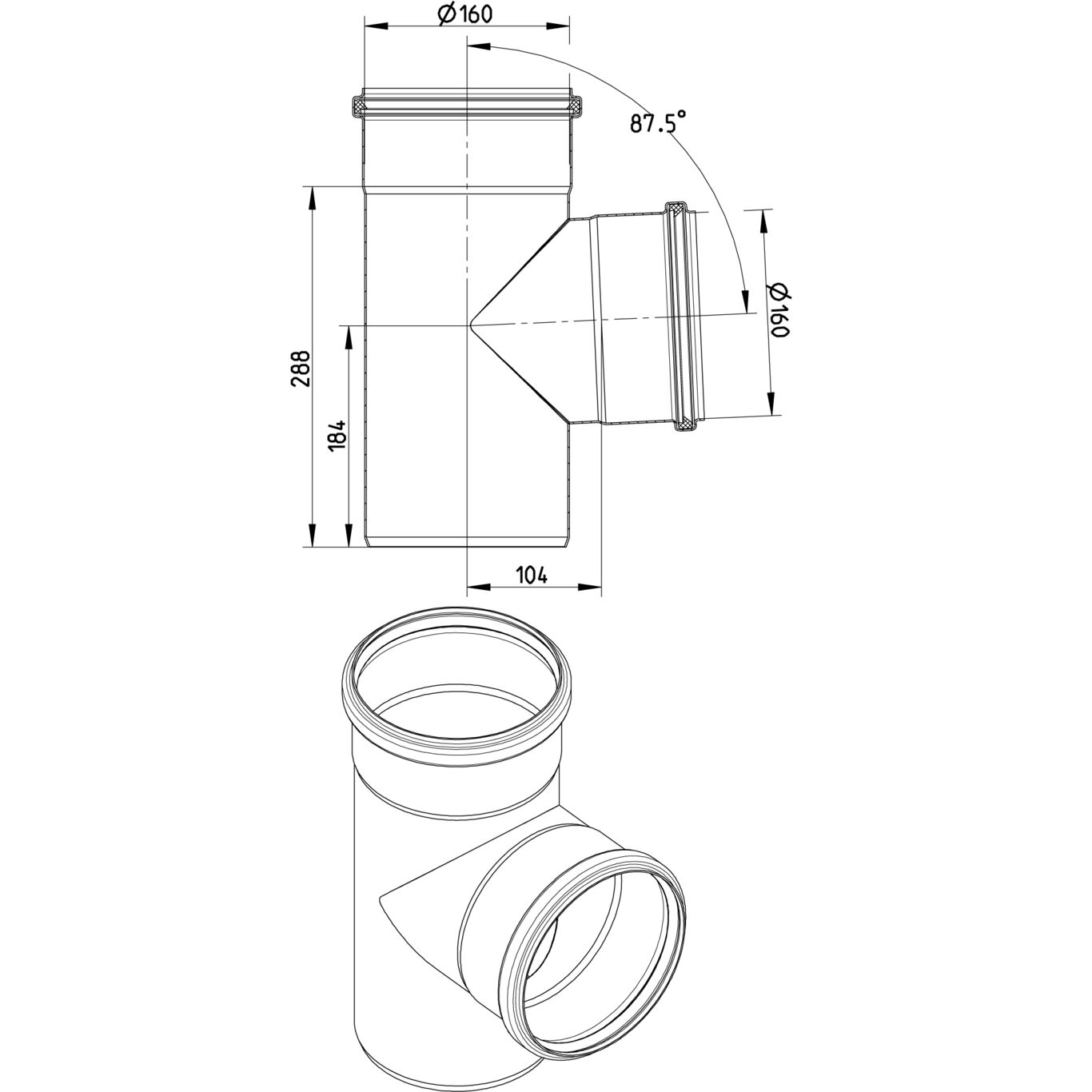

| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 288 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,40 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24 Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22
