BRANCH 87.5° - (830.250.315 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.250.315 S
EAN no.: 5705499413854
VVS no.: 160221614
NRF no.: 2172573
LVI no.: 0251972

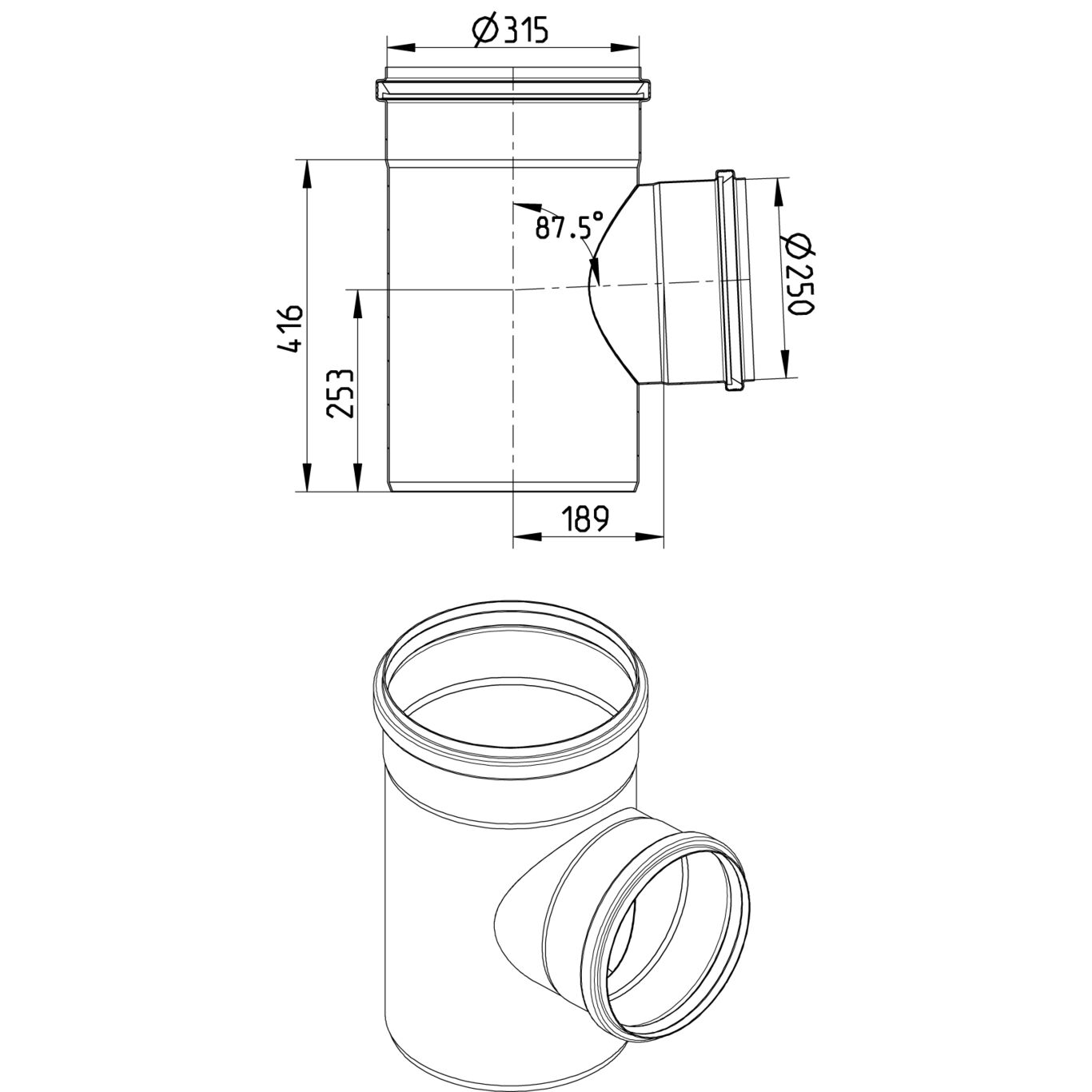

BRANCH 87.5°
-Pipe diameter: Ø315mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 416 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 9,95 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
