DOUBLE BRANCH 45° - (836.050.050 S)

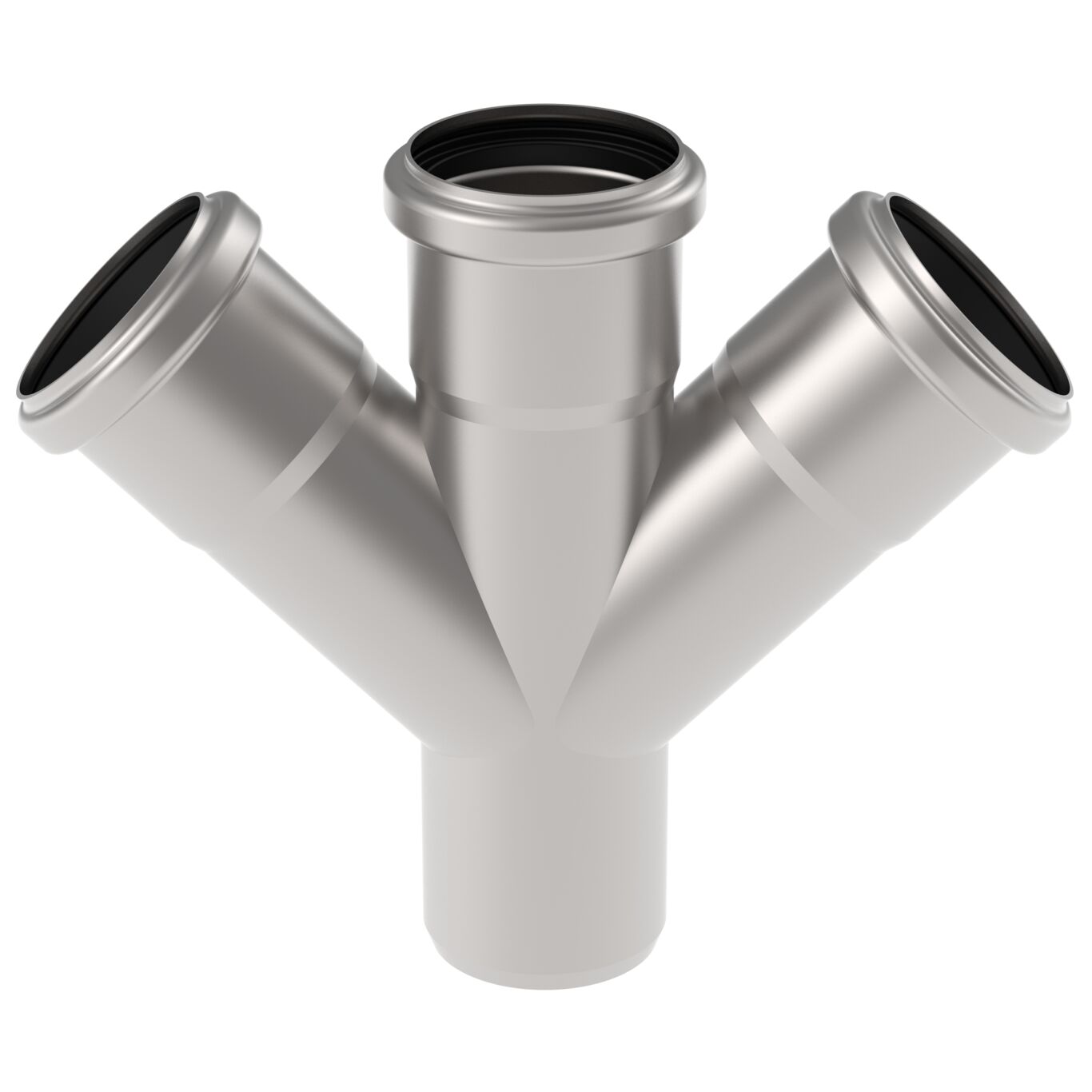

Product Image - Branch-87.5-access

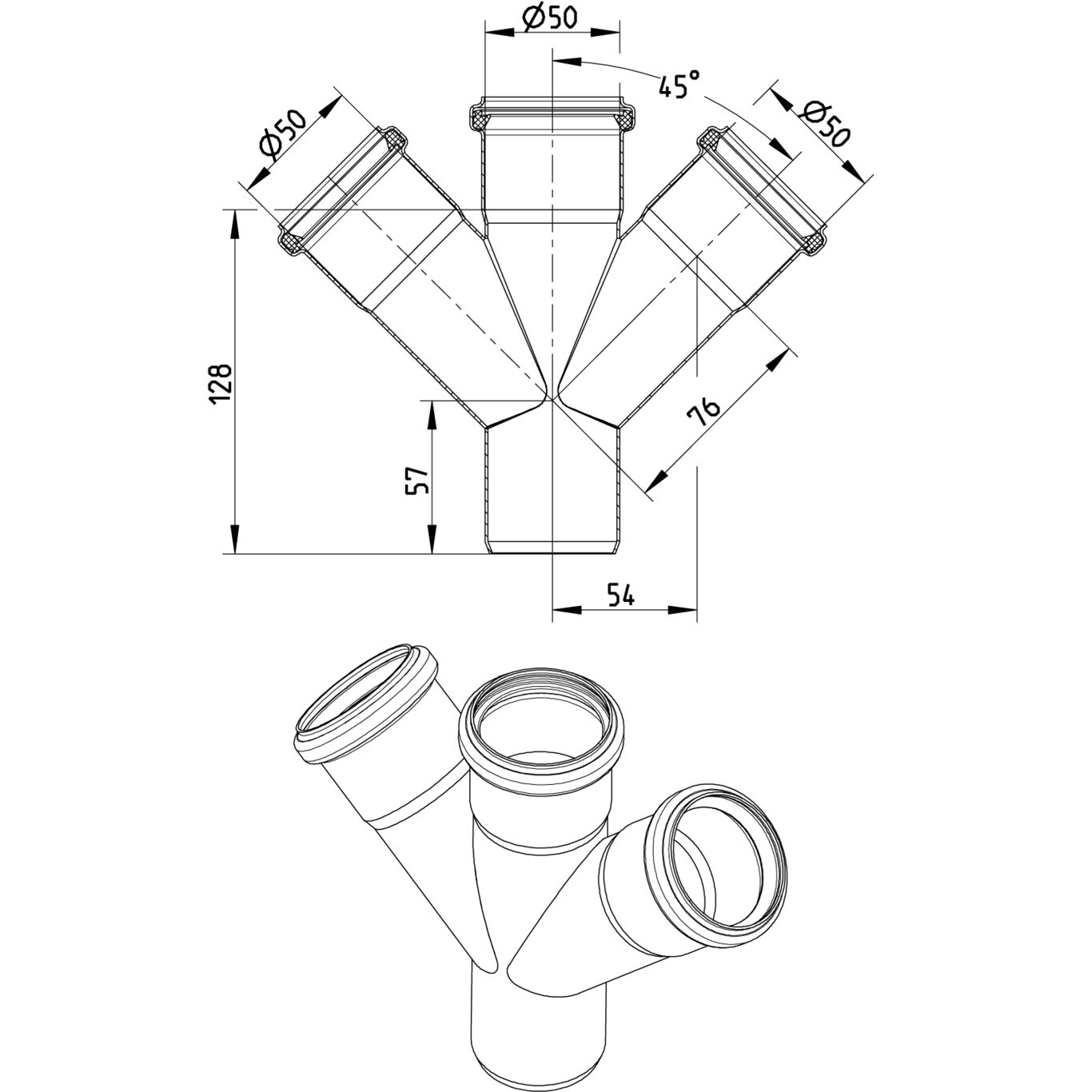

Line Drawing - Double branch-45-180

Part Of the Series: Double branch-45-180

Type no.: 836.050.050 S

EAN no.: 5705499402117

VVS no.: 160235350

RSK no.: 1549392

NRF no.: 2170503

LVI no.: 0253653

DOUBLE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	45
Length (mm)	128
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	50
Weight (kg)	0,59

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia Achilles Certificate - 46702-22 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains
