DOUBLE BRANCH 45° - (836.050.075 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.050.075 S
EAN no.: 5705499402131
VVS no.: 160235373
RSK no.: 1549393
NRF no.: 2170506
LVI no.: 0253655

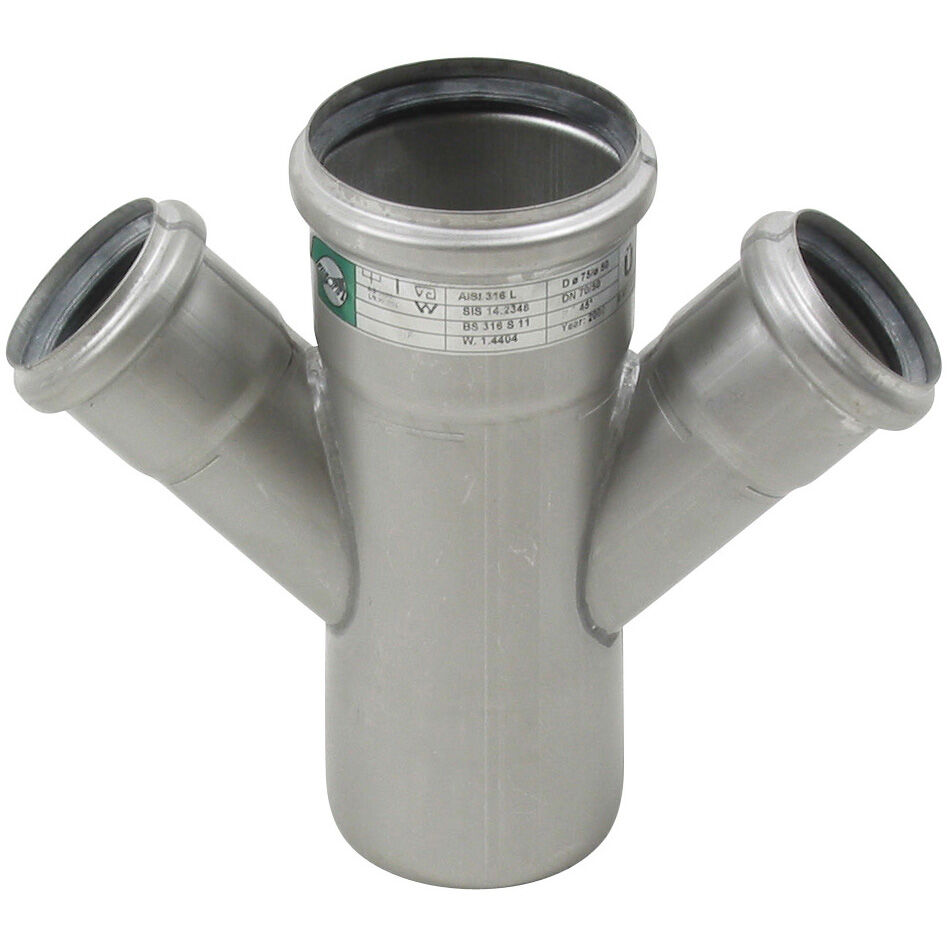

DOUBLE BRANCH 45°

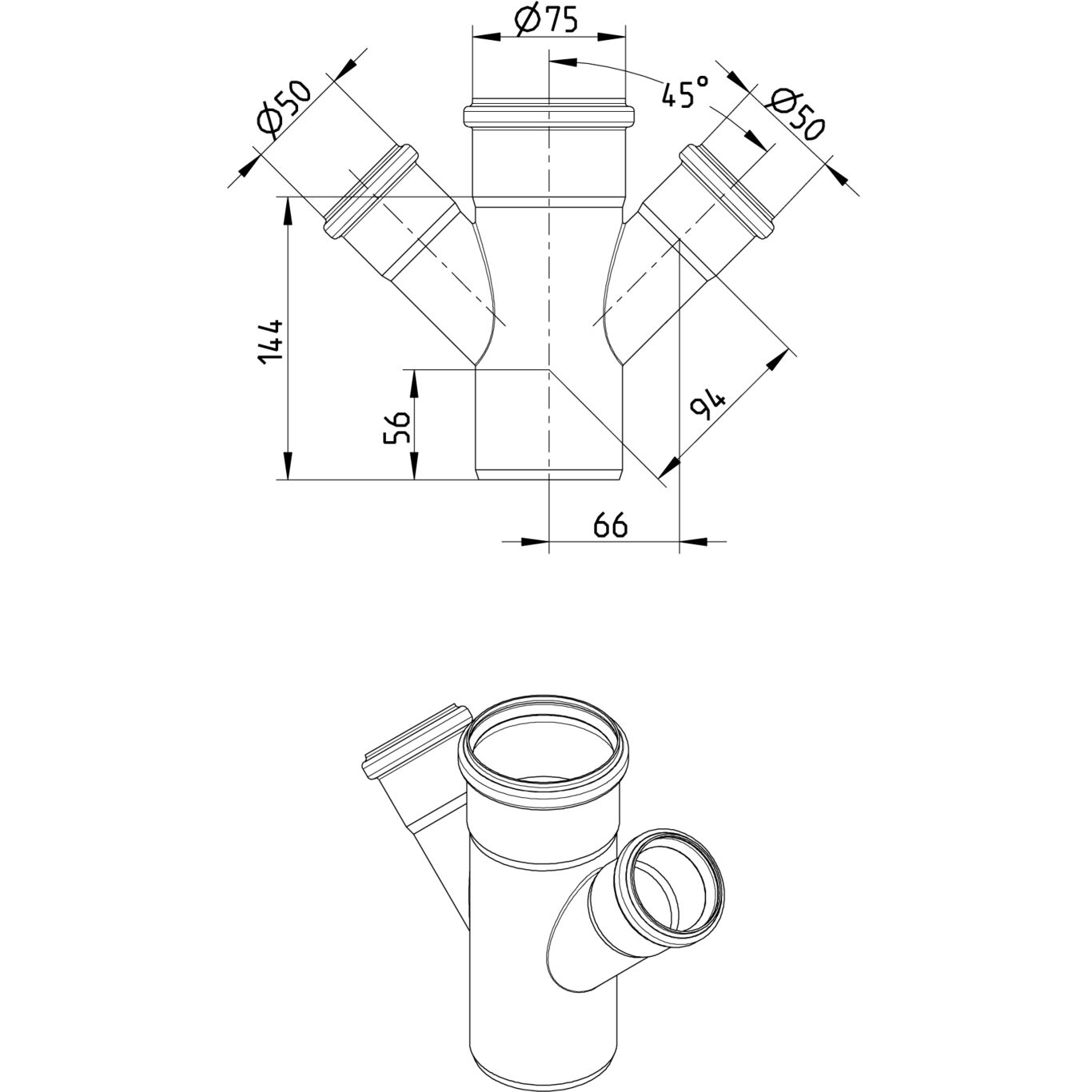

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 144 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,69 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24 Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02
