DOUBLE BRANCH 87.5° - (831.075.075)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.075.075
EAN no.: 5705499401844
VVS no.: 160231075
NRF no.: 2170112
LVI no.: 0244156

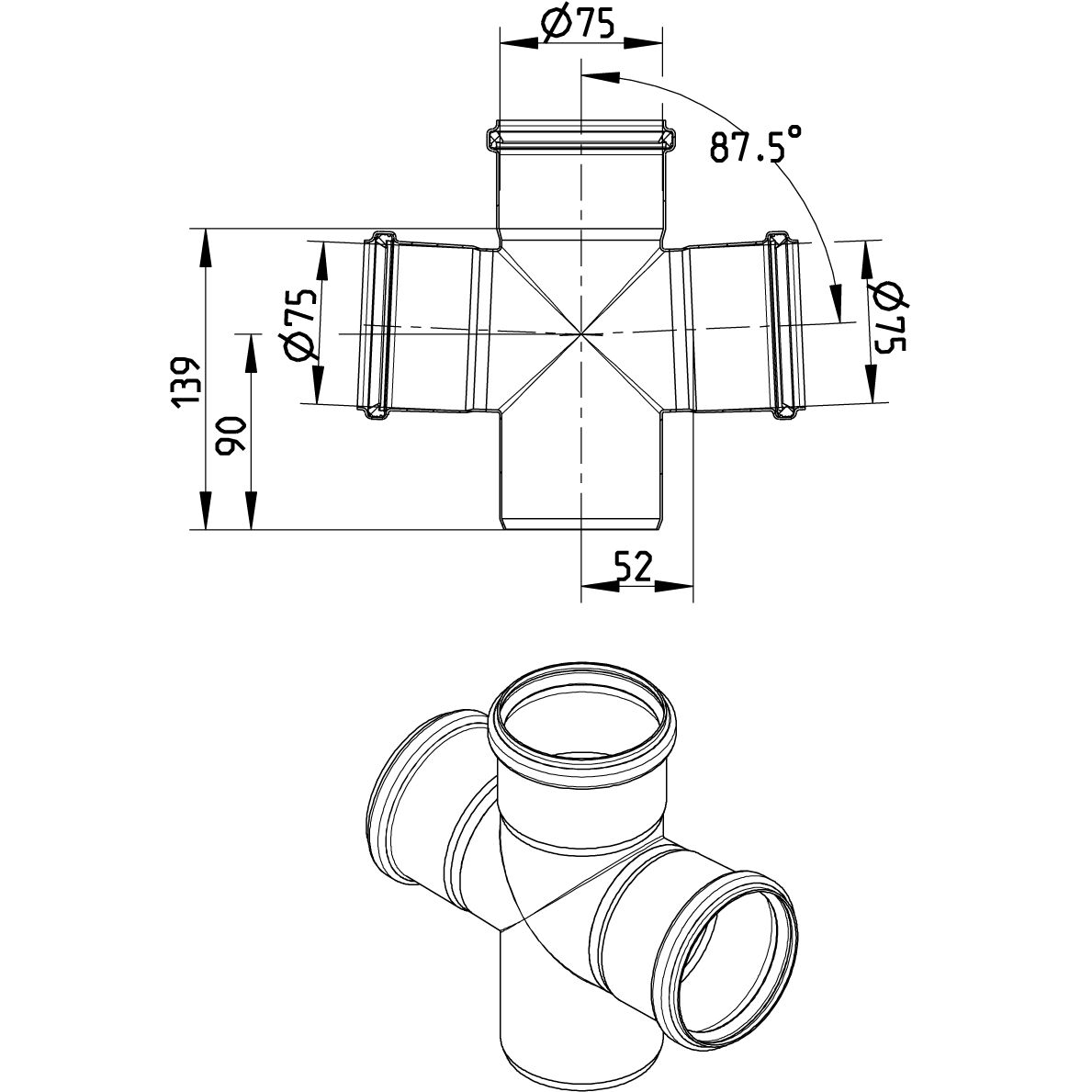

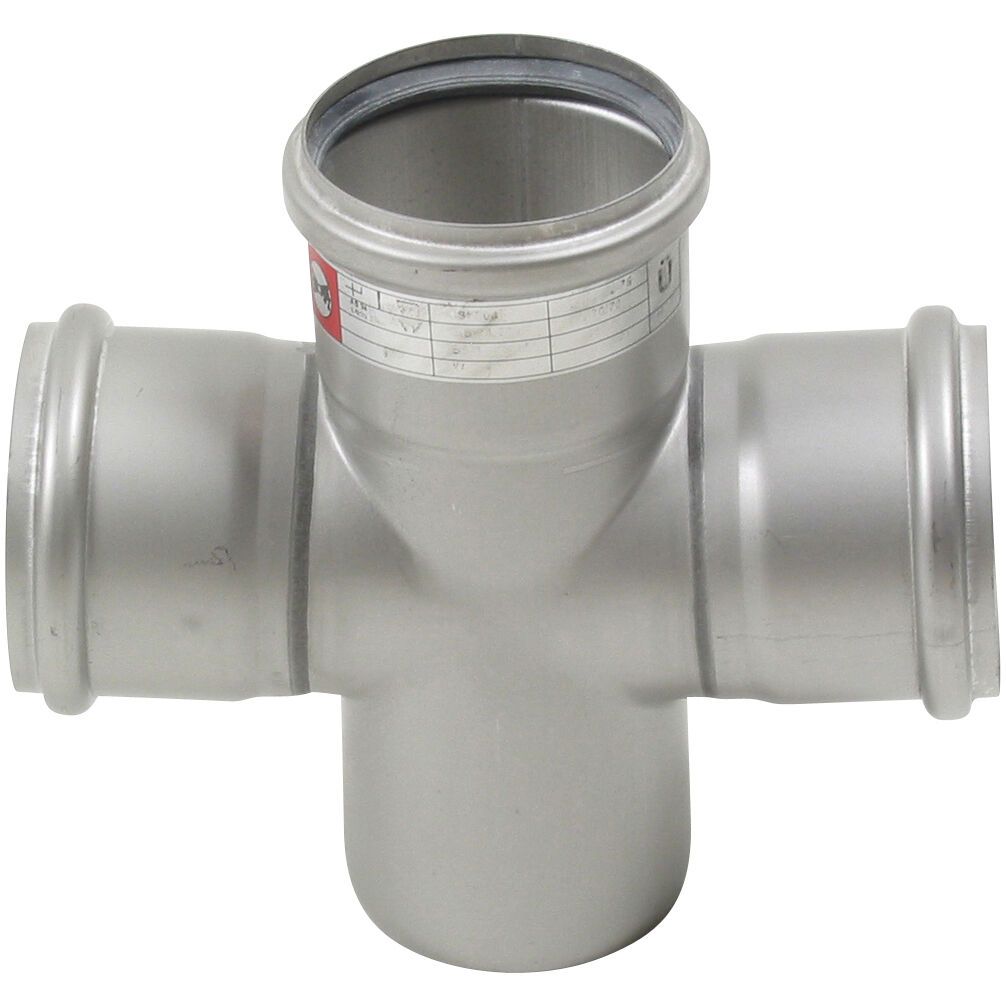

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,66 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24 UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 ABS - 23-2329630-PDA
