DOUBLE BRANCH 89° - (831.050.075 AS)

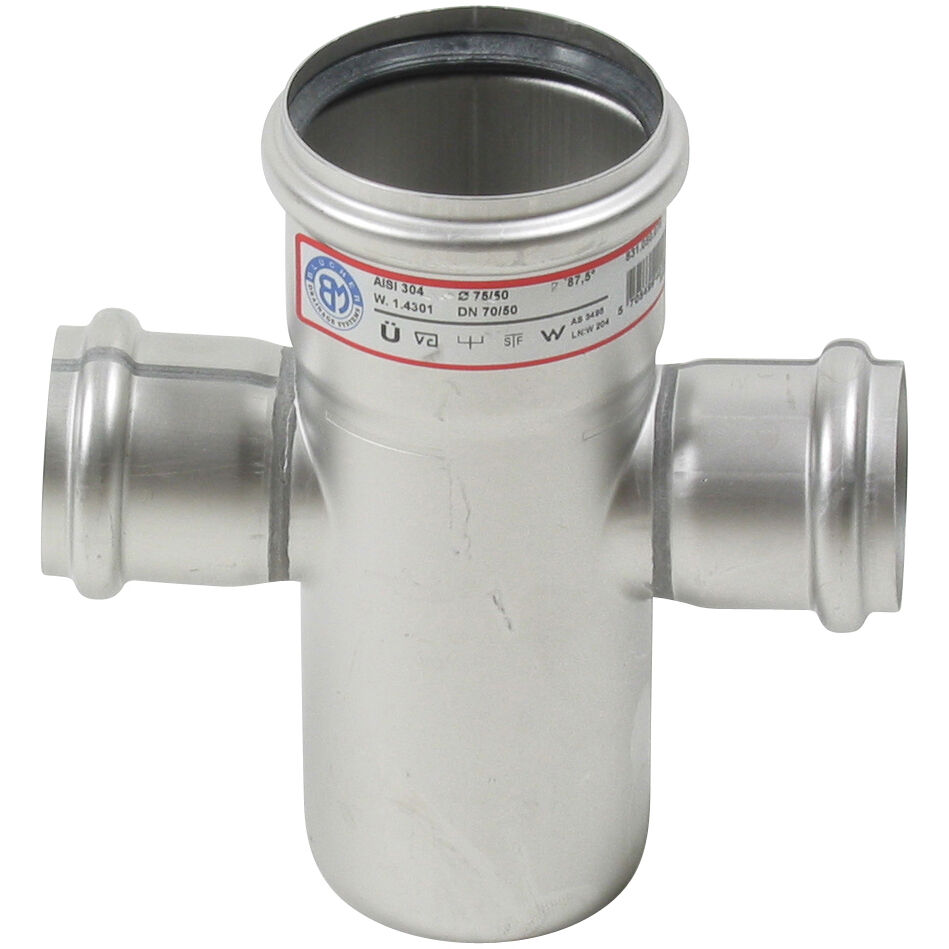

Product Image - Double branch-87.5-180

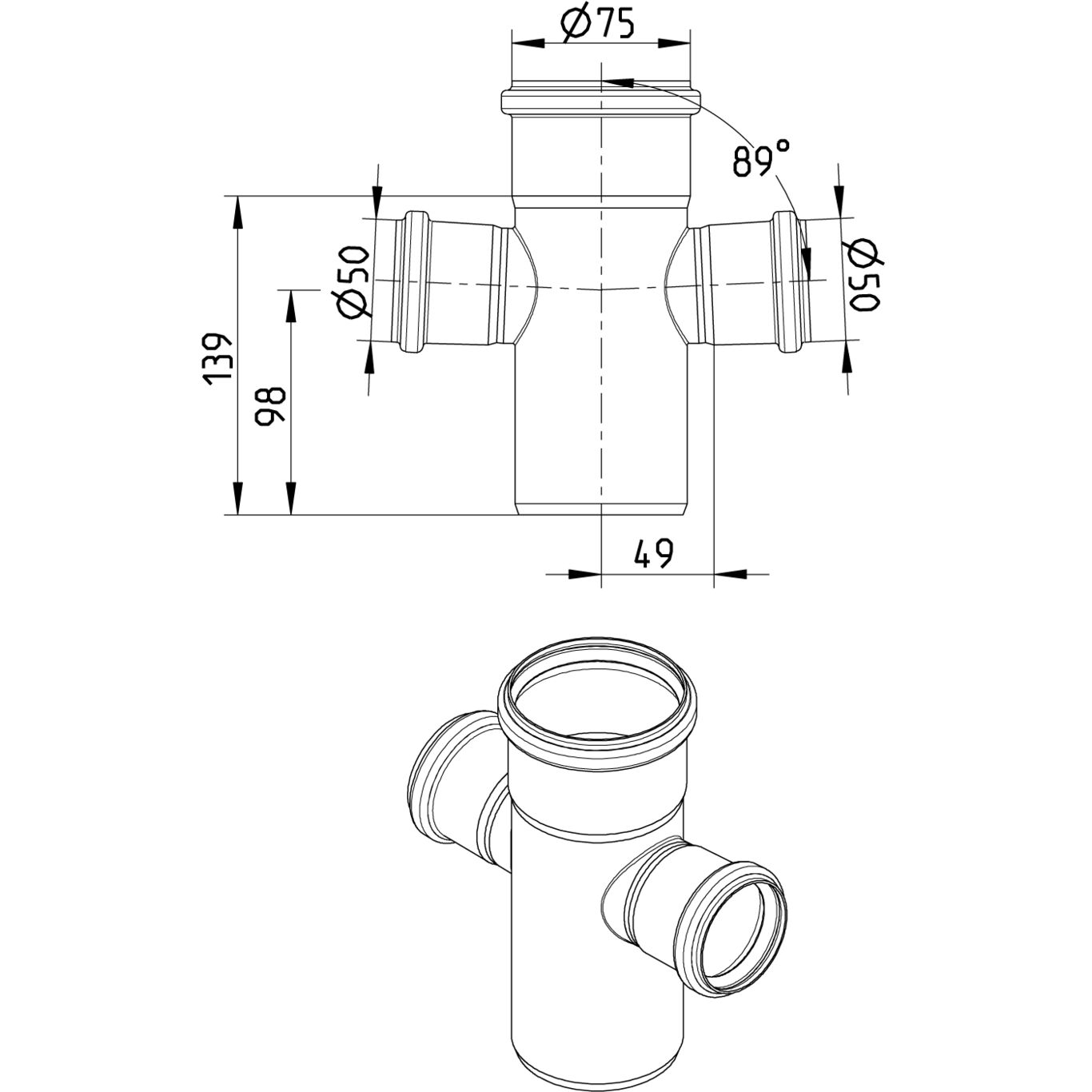

Line Drawing - Double branch-89-180
×

Part Of the Series: Double branch-89-180

Type no.: 831.050.075 AS

EAN no.: 5705499409048

NRF no.: 2172576

DOUBLE BRANCH 89°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°) 89
Length (mm) 139
Material AISI 316L
Material (EN) EN 1.4404
Outlet Diameter (mm) 75
Weight (kg) 0,54
