DOUBLE SWEPT BRANCH 87.5° - (879.110.110 S)
×
![]()
Part Of the Series: Double swept branch-87.5-90
Type no.: 879.110.110 S
EAN no.: 5705499403916
NRF no.: 2172818

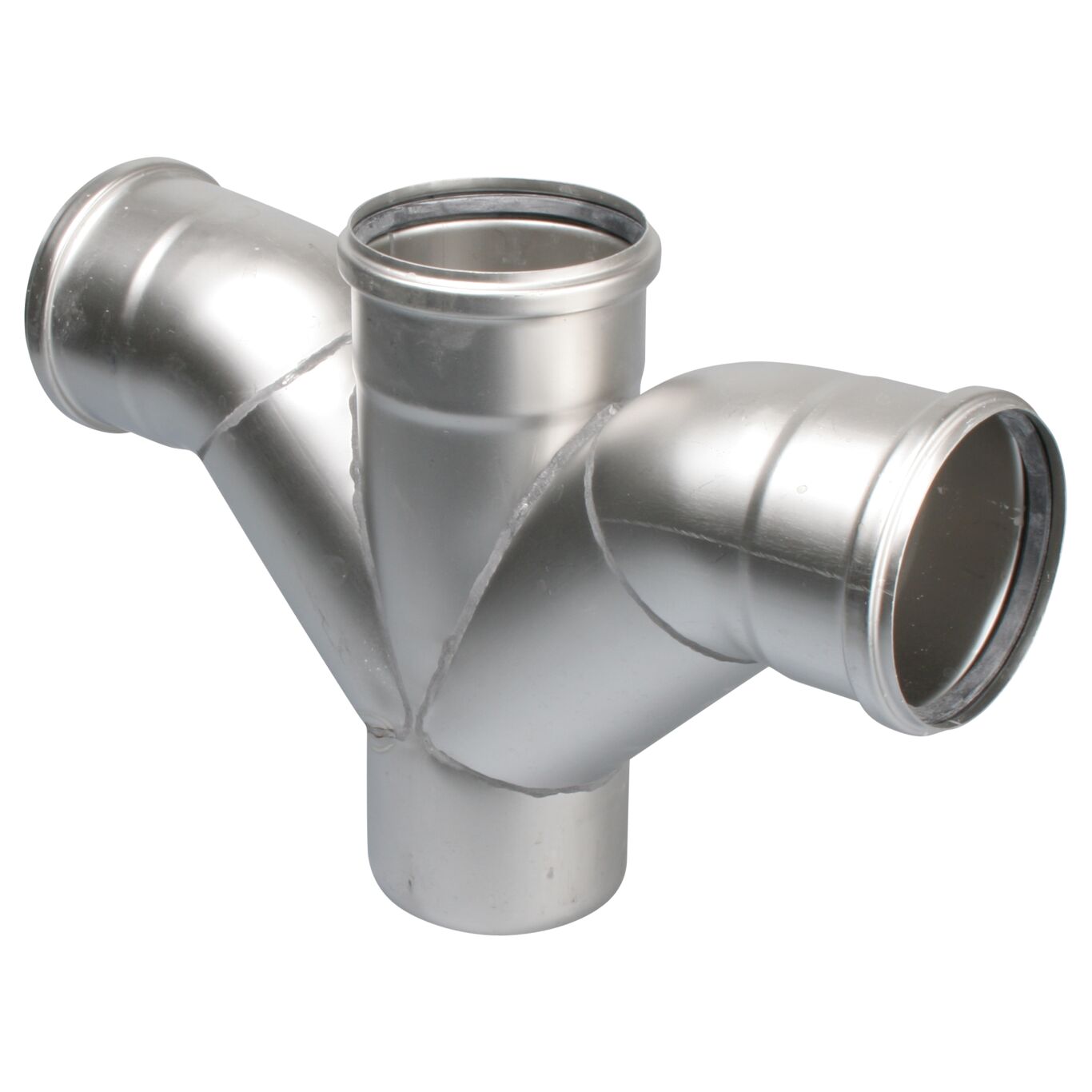

DOUBLE SWEPT BRANCH 87.5°

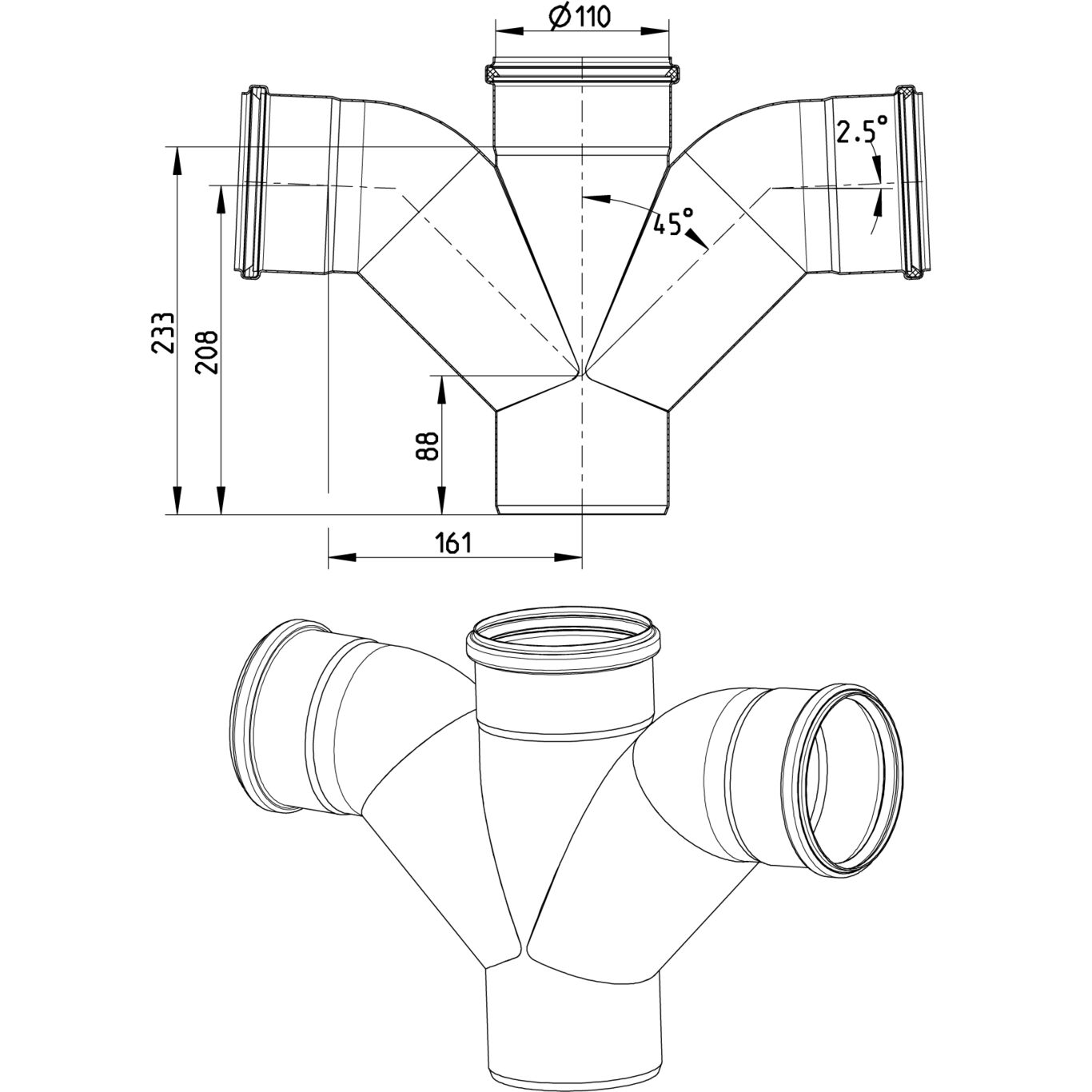

-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 233 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
