SWEPT BRANCH 87.5° - (839.050.110)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.050.110
EAN no.: 5705499402551
VVS no.: 160222106
RSK no.: 1550184
NRF no.: 2170094
LVI no.: 0245238

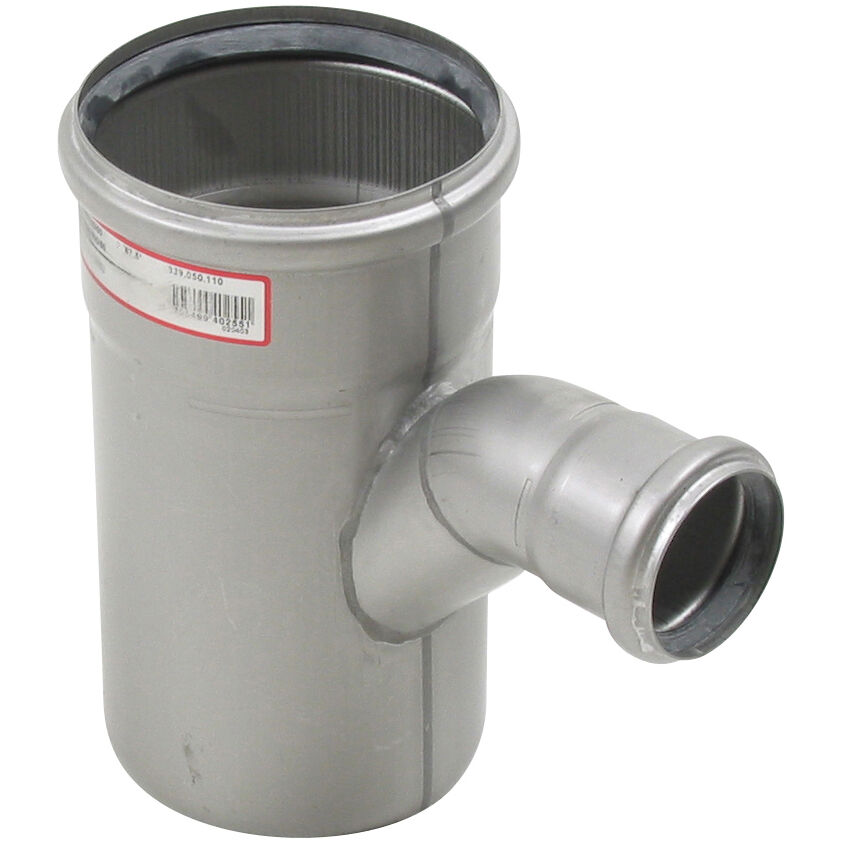

SWEPT BRANCH 87.5°

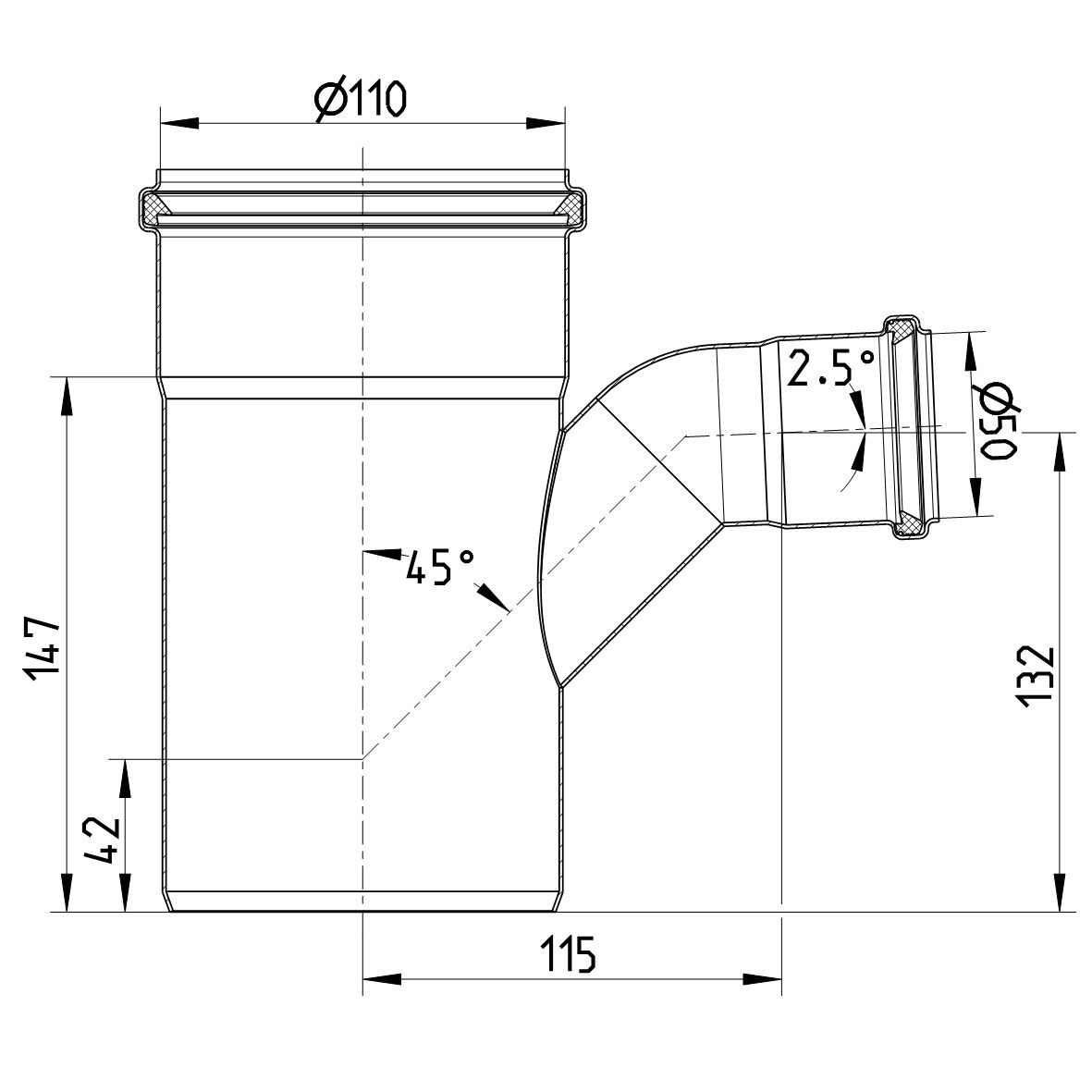

-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 147 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,81 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
