SWEPT BRANCH 87.5° - (839.110.110)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.110.110
EAN no.: 5705499402612
VVS no.: 160222110
RSK no.: 1550186
NRF no.: 2170101
LVI no.: 0245240

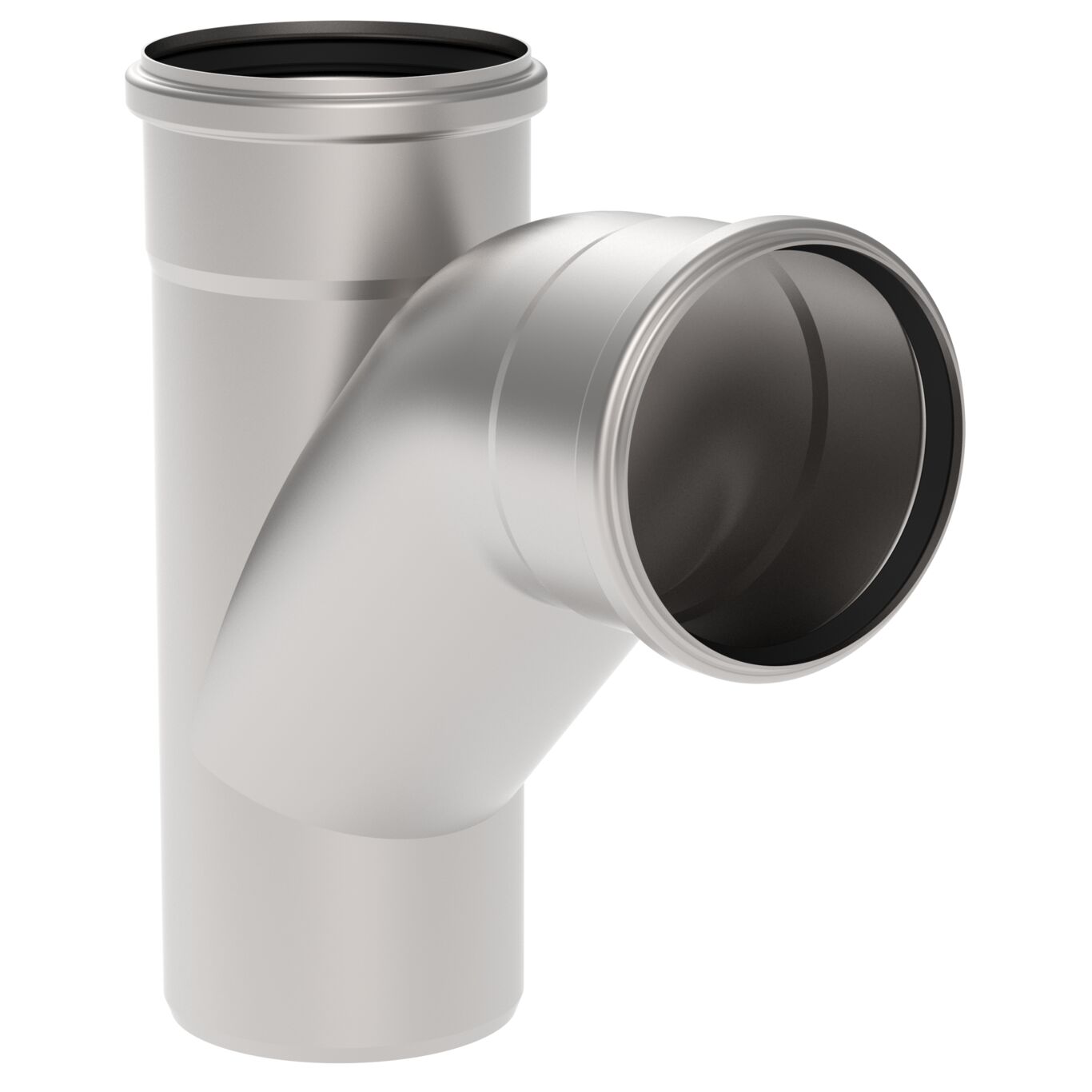

SWEPT BRANCH 87.5°

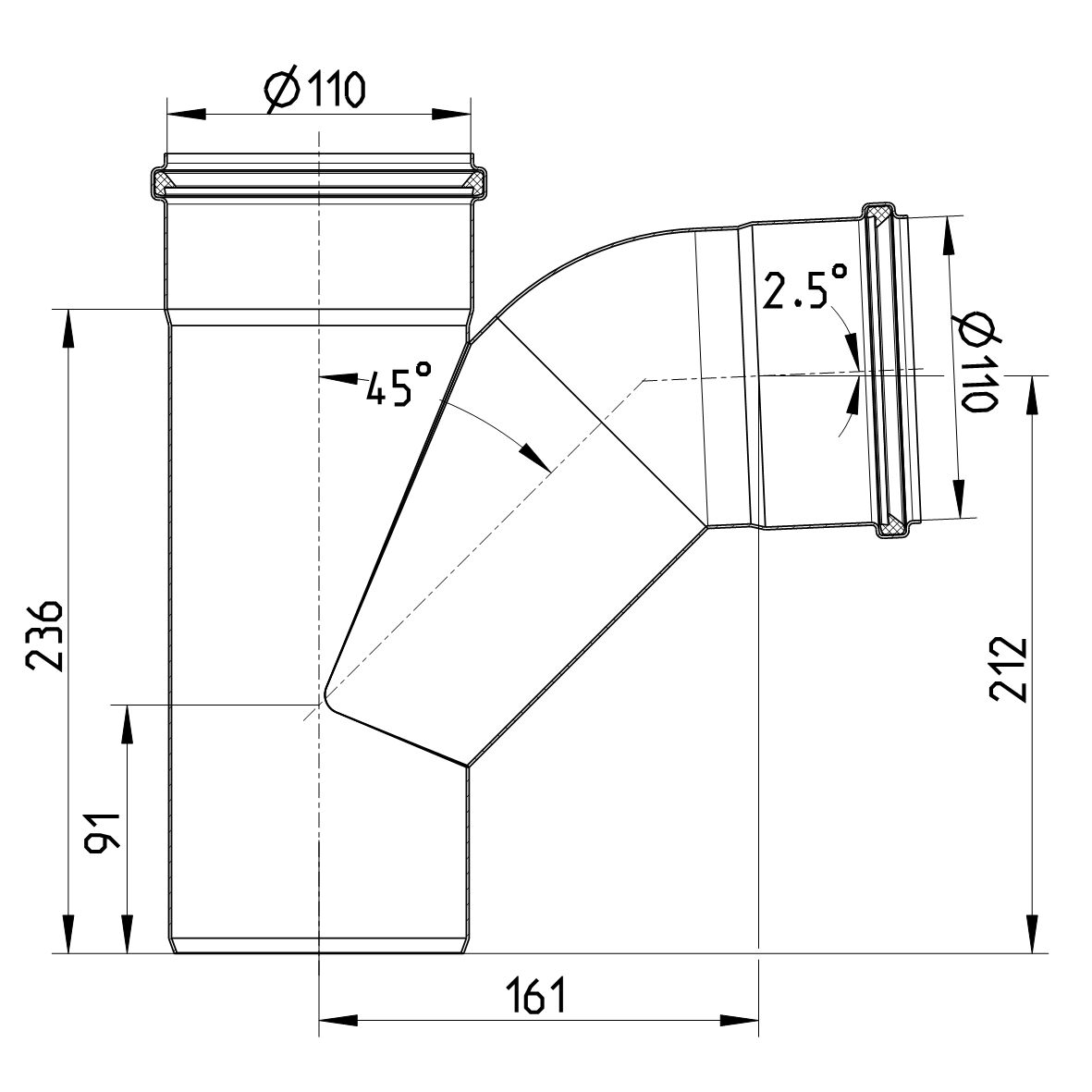

-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 236 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,64 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19350
