SWEPT BRANCH 89° - (848.050.050 AS)
×
![]()
Part Of the Series: Swept branch-89
Type no.: 848.050.050 AS
EAN no.: 5705499409635
NRF no.: 2172668
LVI no.: 0255248

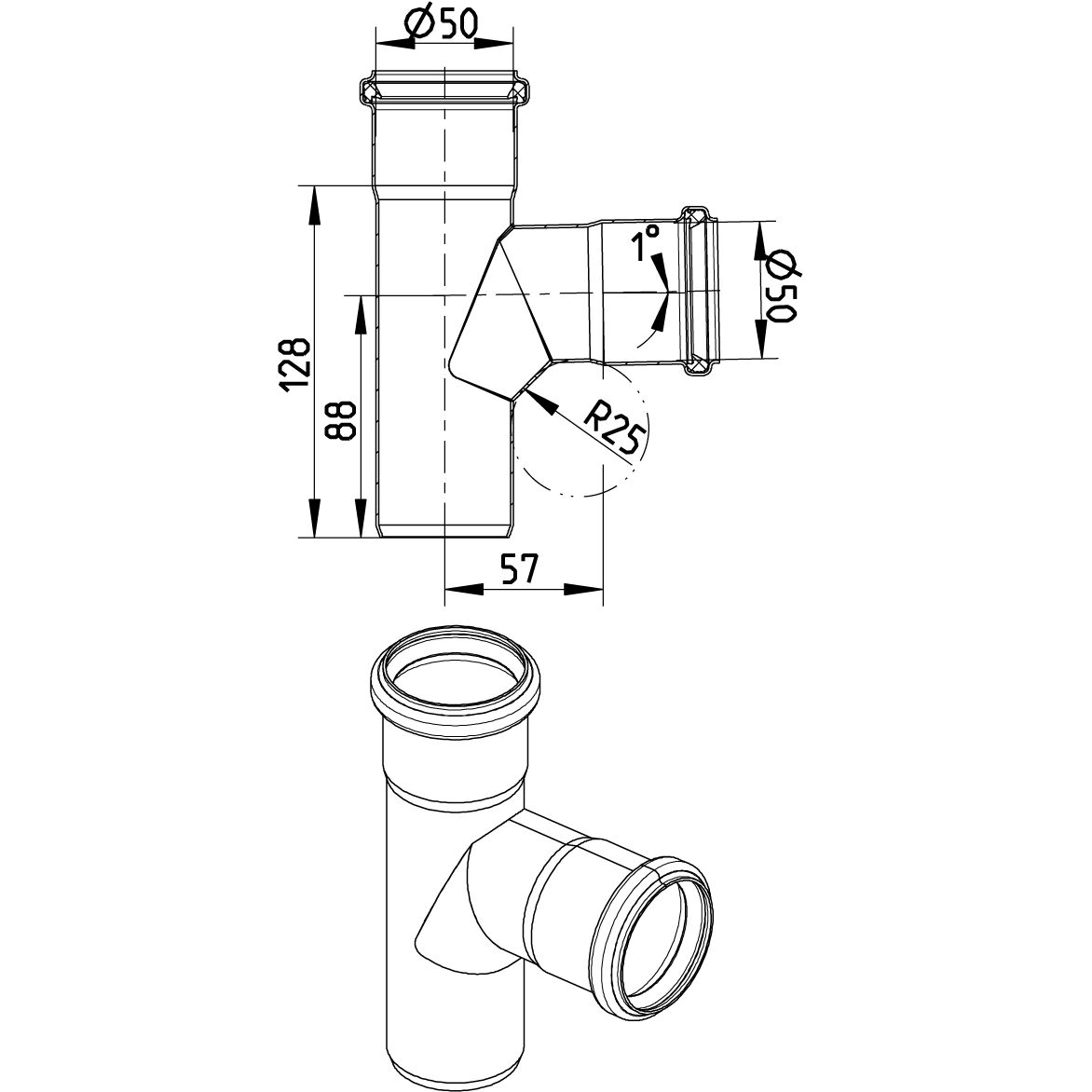

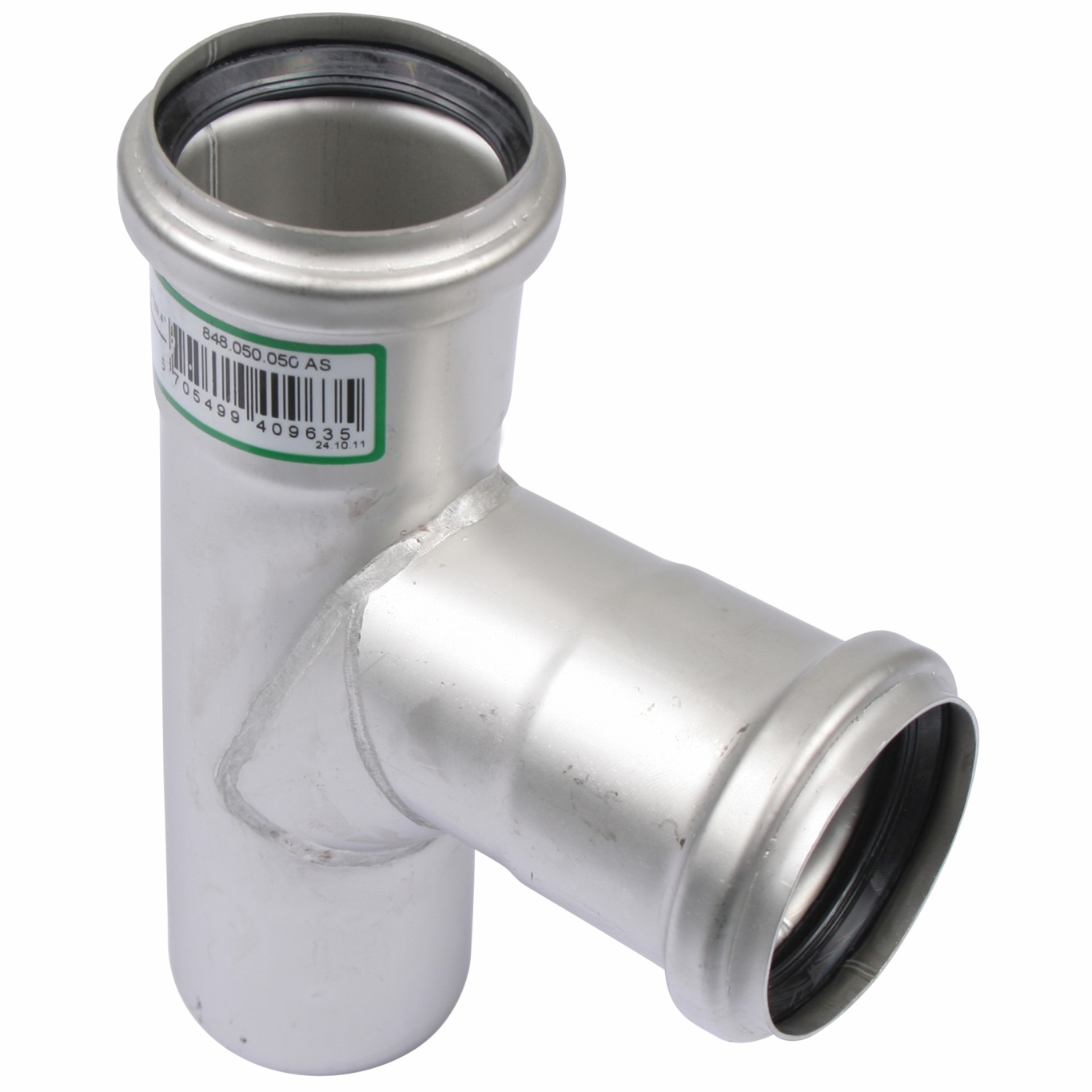

SWEPT BRANCH 89°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 128 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,43 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
