SADDLE CLAMP - (890.075.040)
×
![]()
Part Of the Series: Saddle clamp
Type no.: 890.075.040
EAN no.: 5705499104776
VVS no.: 154311311
RSK no.: 1551577
NRF no.: 3395076

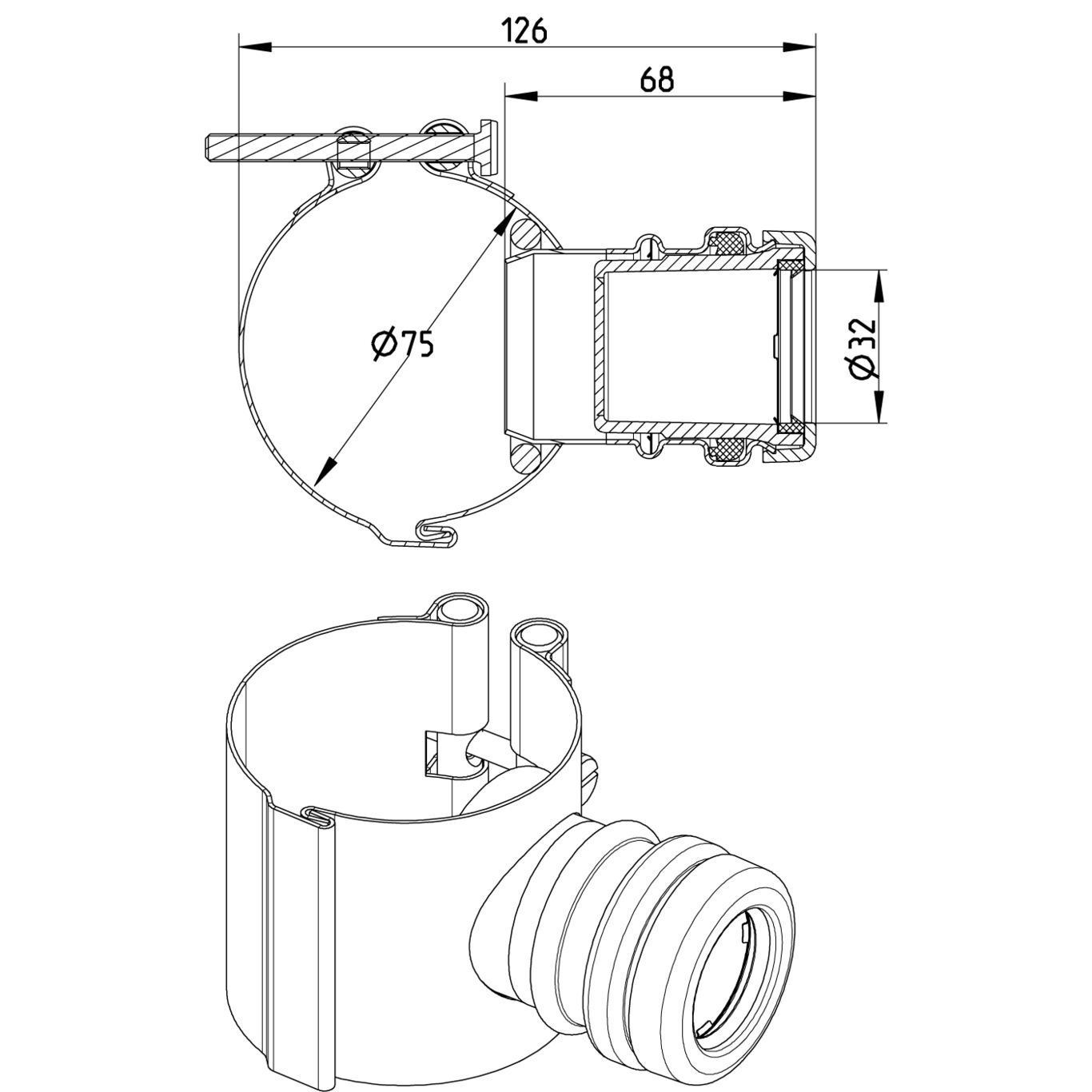

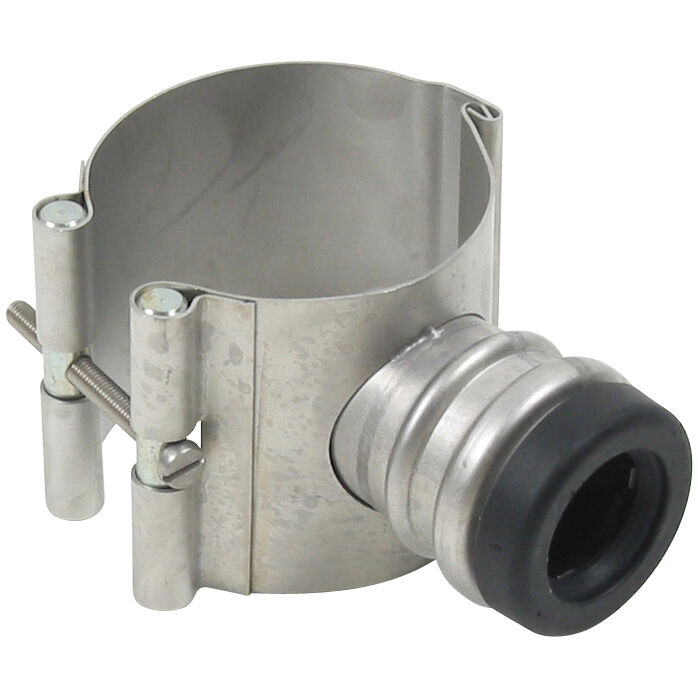

SADDLE CLAMP
-Diameter: Ø75mm
-Side inlet: Ø32/40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 70 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,48 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
