STRAIGHT PIPE WITH ONE SOCKET - (811.025.200 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.200 S
EAN no.: 5705499411539
VVS no.: 160134325
NRF no.: 2170717
LVI no.: 0250282

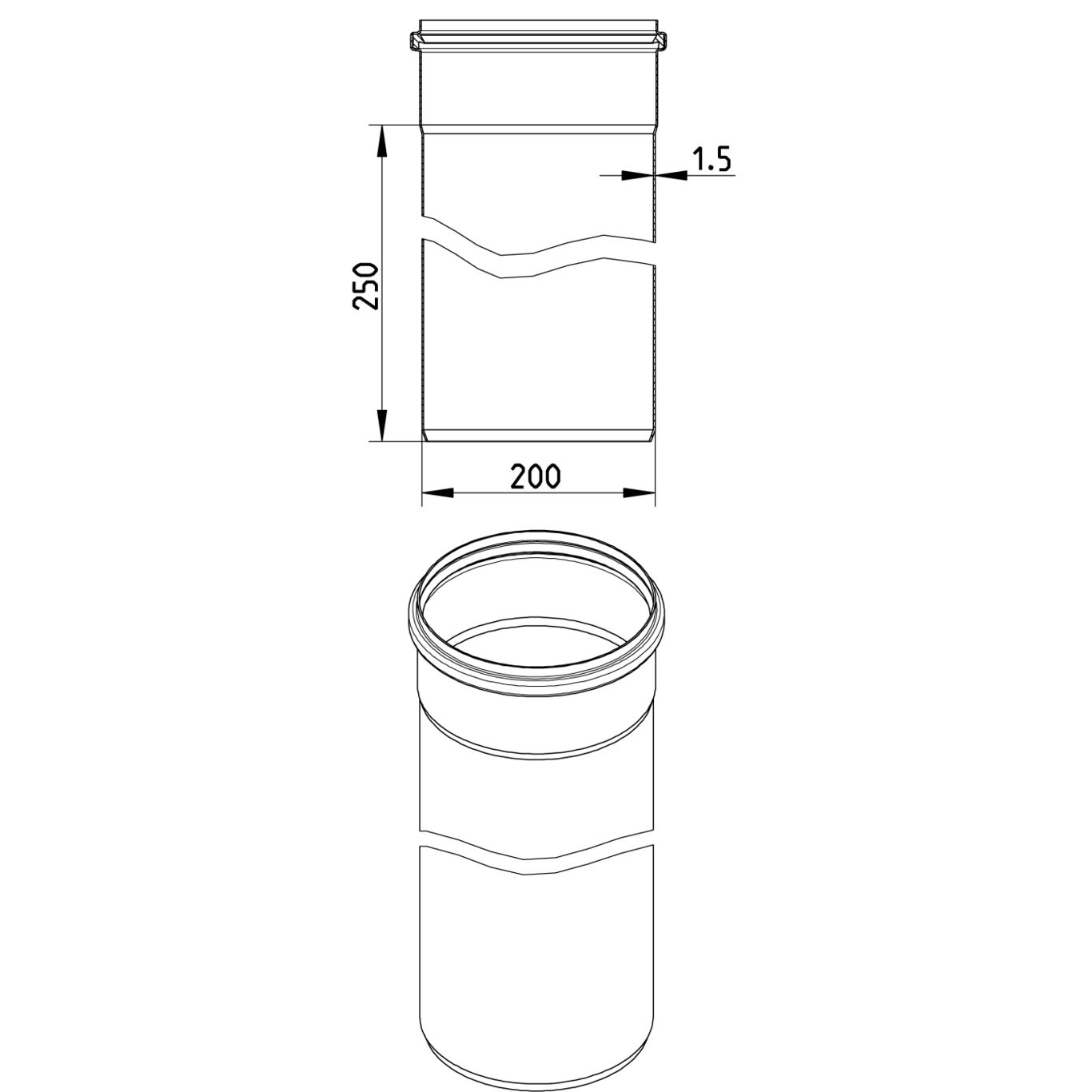

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 2,77 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA
