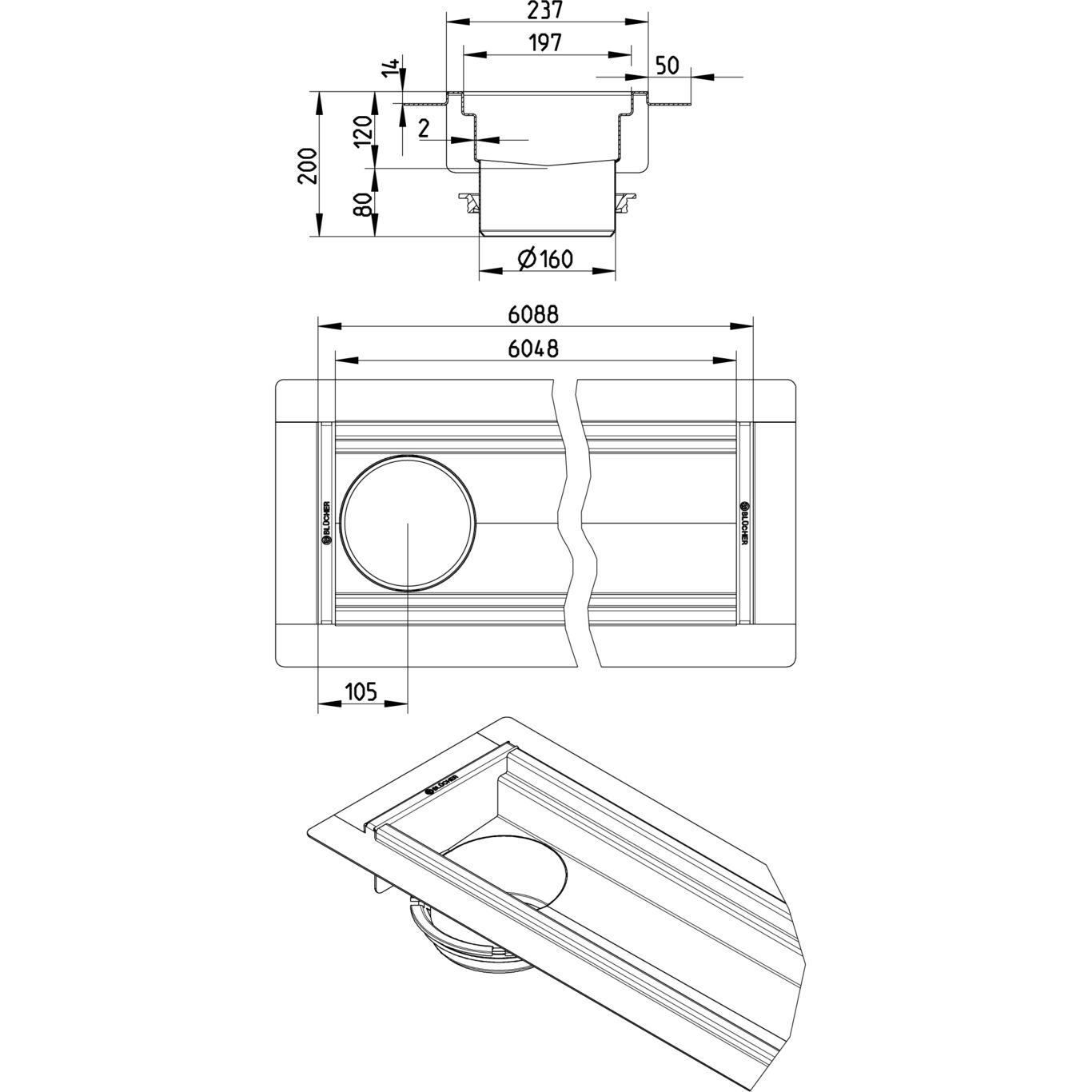

CHANNEL 200x6000 END OUTLET - (674DK060-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674DK060-00BA

EAN no.: 5705499131192

NRF no.: 3397137

LVI no.: 3304815

Size: 200x6000

Product Specification
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 200
Outlet Box No
Outlet Diameter (mm) 160
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 200x6000
Weight (kg) 52,43
