CHANNEL 400x6000 CENTER OUTLET - (672FK060-30BA)

Product Image - Channel-Vinyl

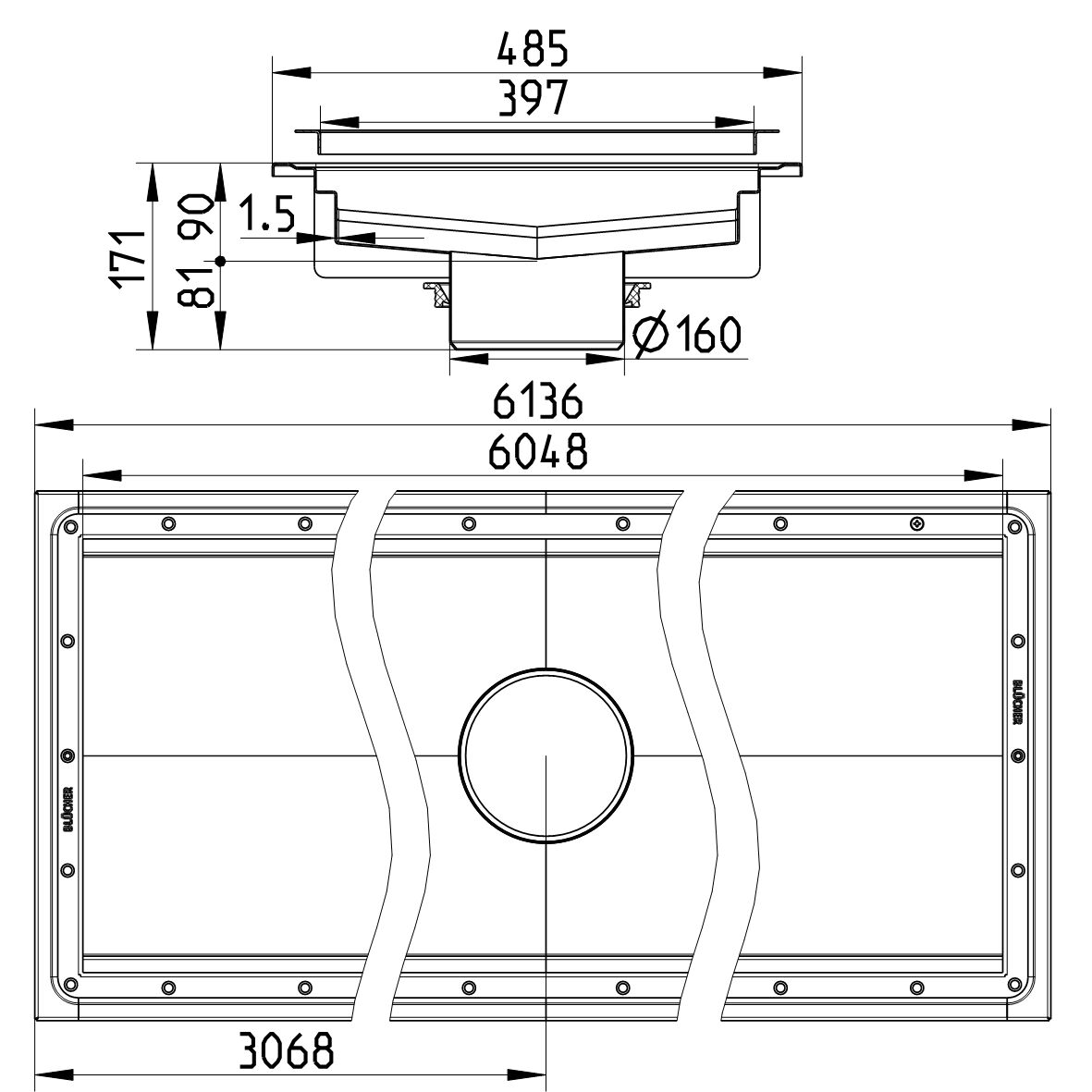

Line Drawing - Channel-Vinyl
×

Part Of the Series: Channel-Vinyl

Type no.: 672FK060-30BA

EAN no.: 5705499130744

Size: 400x6000

CHANNEL 400x6000 CENTER OUTLET
-Floor: vinyl
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301

Product Specification
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 170
Outlet Box No
Outlet Diameter (mm) 160
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 400x6000
Weight (kg) 56,76
