SHOWER CHANNEL ART DECO 900 - (184.090.000.10)
Part Of the Series: Shower channel-No membrane
Type no.: 184.090.000.10
EAN no.: 5705499139570
VVS no.: 155095009
RSK no.: 7129873
NRF no.: 3394668
LVI no.: 3305833
Size: 75x900

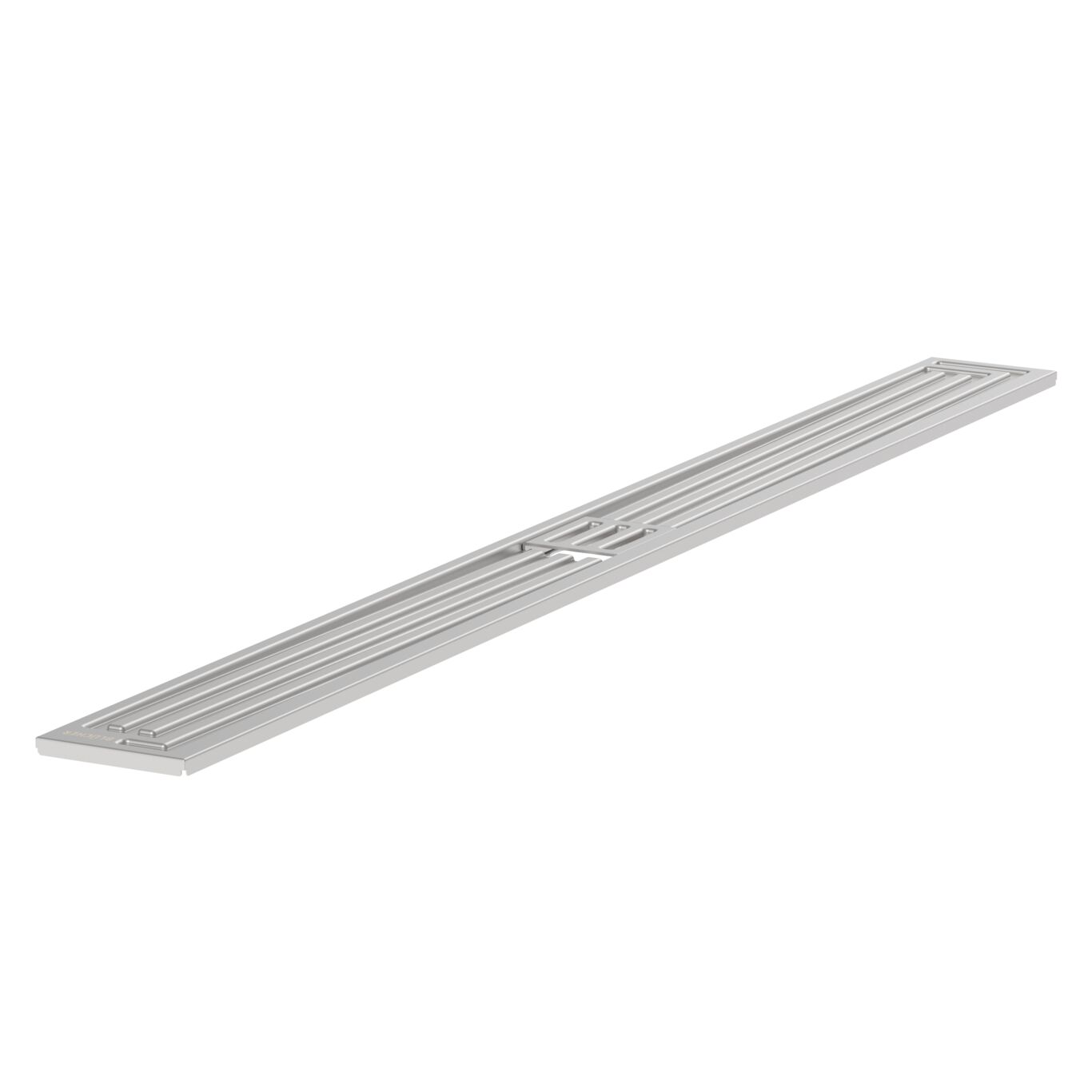

SHOWER CHANNEL ART DECO 900
- For use with Art Deco accessories for membranes
- For installation along wall
- Floor: concrete and tiled
- Frame: rectangular
- Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Outlet Box | No |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |

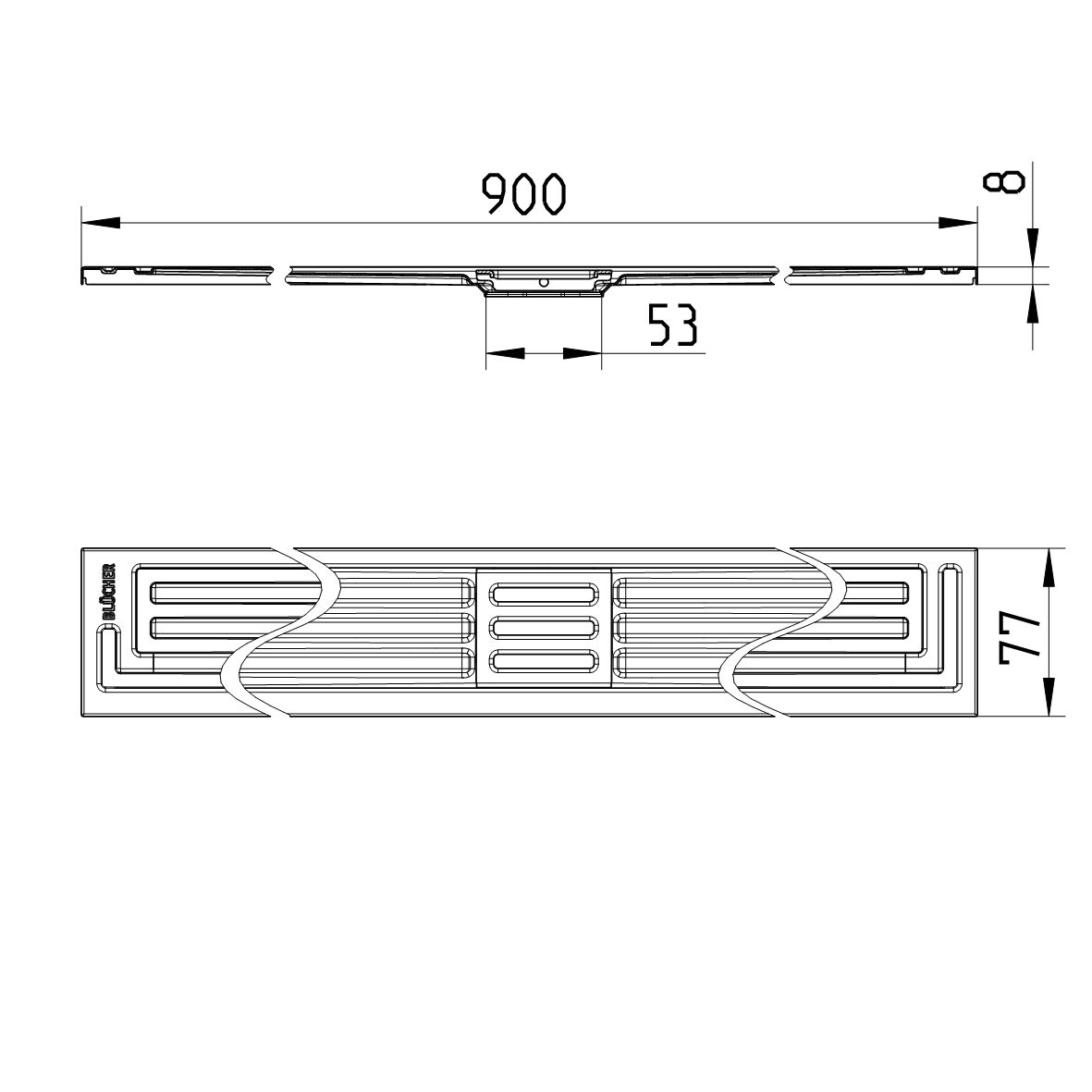

Size (mm) | 75x900 |
Weight (kg) | 0,59 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
