SLOT CHANNEL 8x2000 END OUTLET - (677AN020-00BAS)
×
![]()
Part Of the Series: Slot channel-Liquid membrane
Type no.: 677AN020-00BAS
EAN no.: 5705499128291
Size: 8x2000

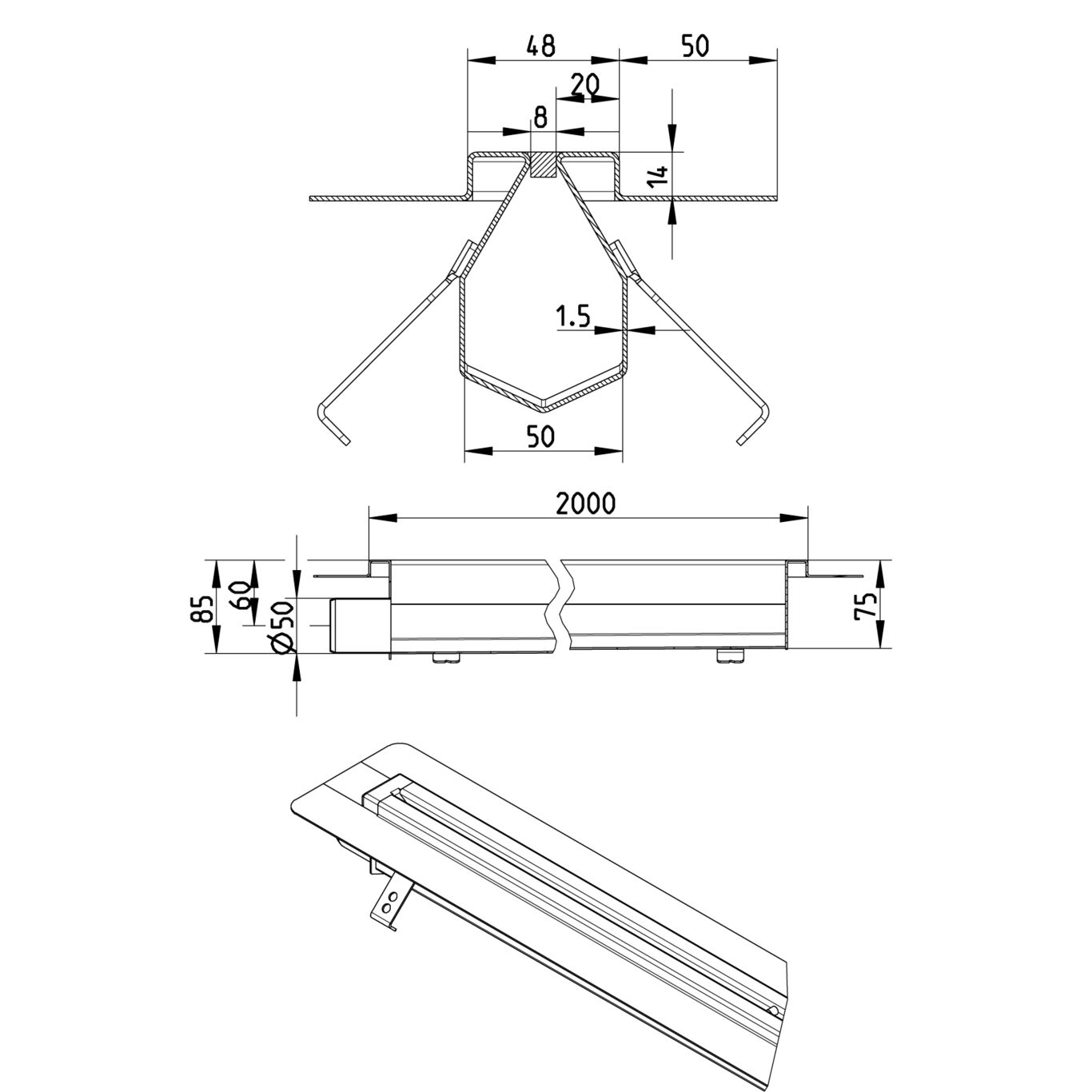

SLOT CHANNEL 8x2000 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 85 |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 8x2000 |
| Weight (kg) | 8,97 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
