MINI SHOWER DRAIN CIRCLE - (281.300.032)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 281.300.032
EAN no.: 5705499107388
VVS no.: 153492110
RSK no.: 7120259
NRF no.: 3394918
LVI no.: 3303877
Size: Ø155

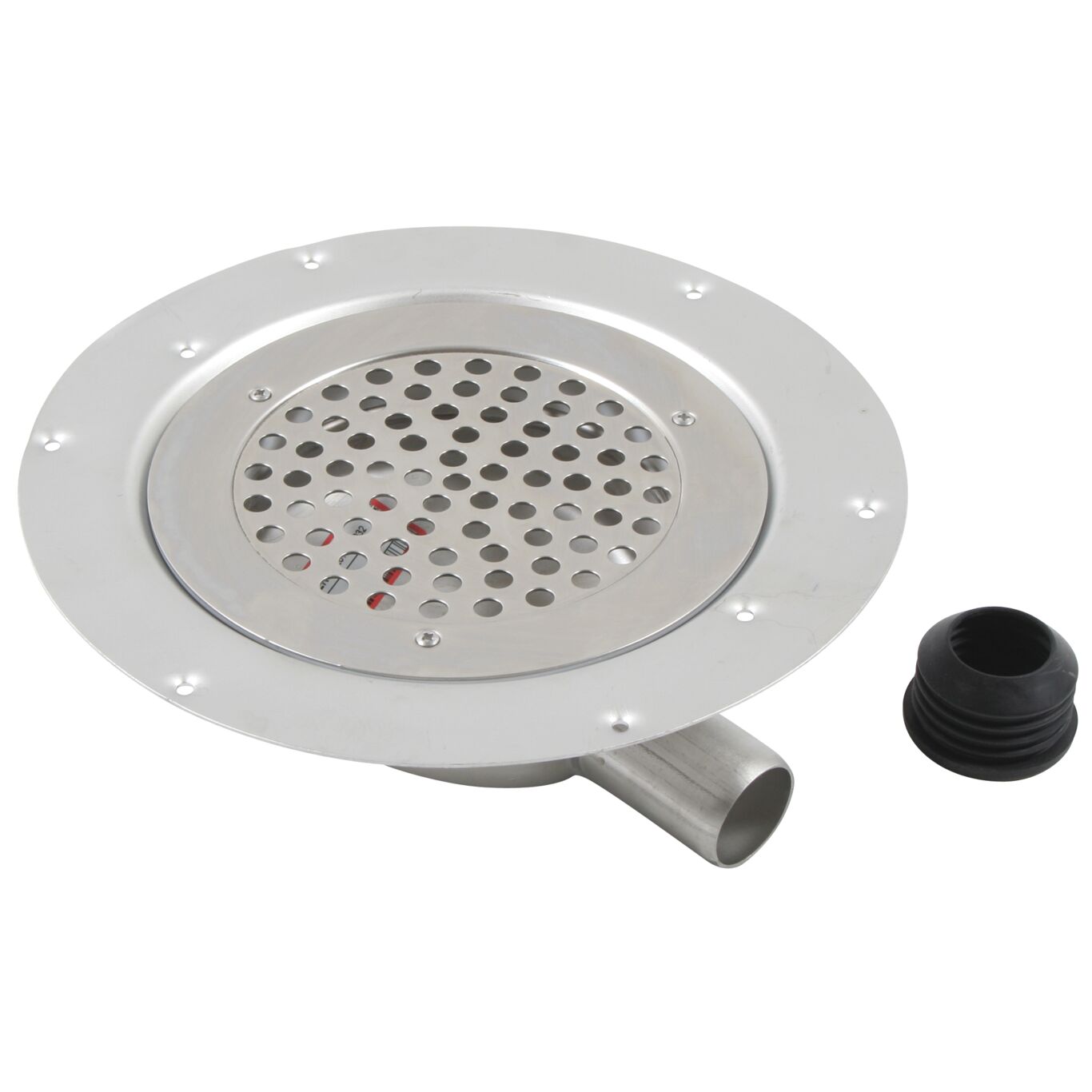

MINI SHOWER DRAIN CIRCLE
-Removable water trap cannot be used
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø32mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 67 |
| Number of Inlets | 0 |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 32 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 0,75 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
