UPPER PART CIRCLE - (150.320.100 S)
×
![]()
Part Of the Series: Upper part-No membrane-180
Type no.: 150.320.100 S
EAN no.: 5705499131888

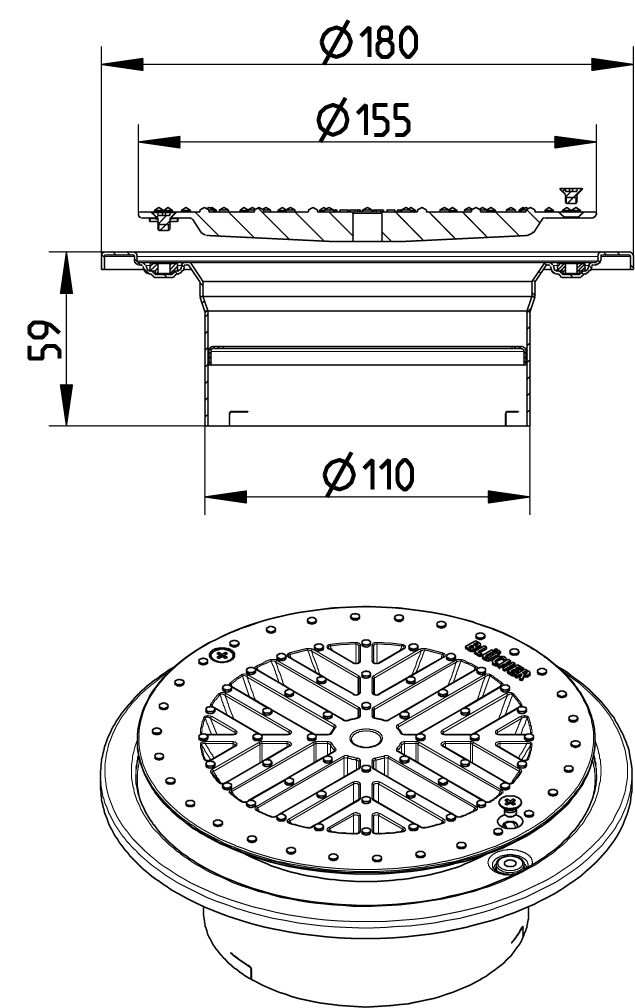

Size: Ø155

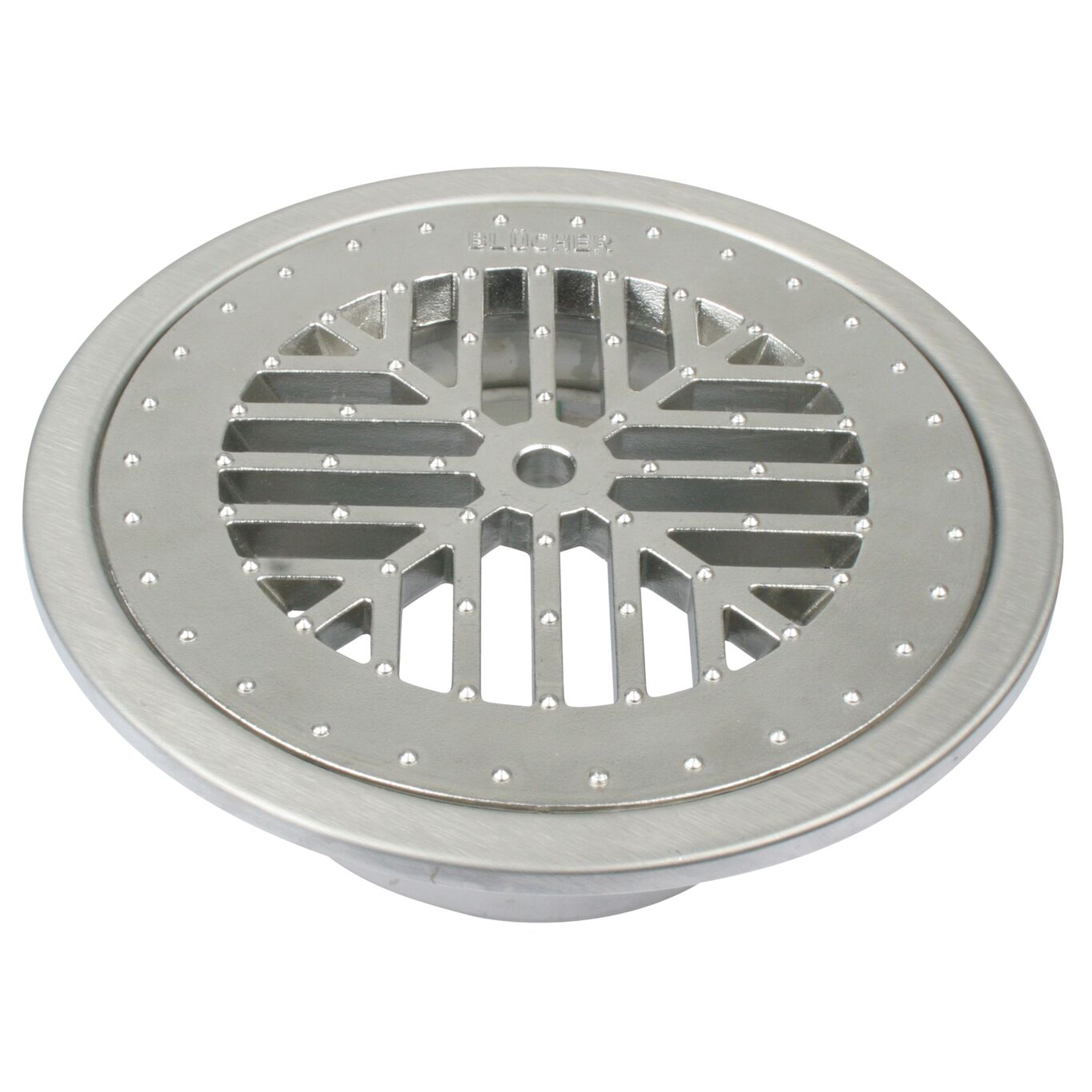

UPPER PART CIRCLE
-With supporting ring for water trap and HygienicPro grating
-Floor: resin
-Frame: Ø180mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 59 |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 0,83 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
