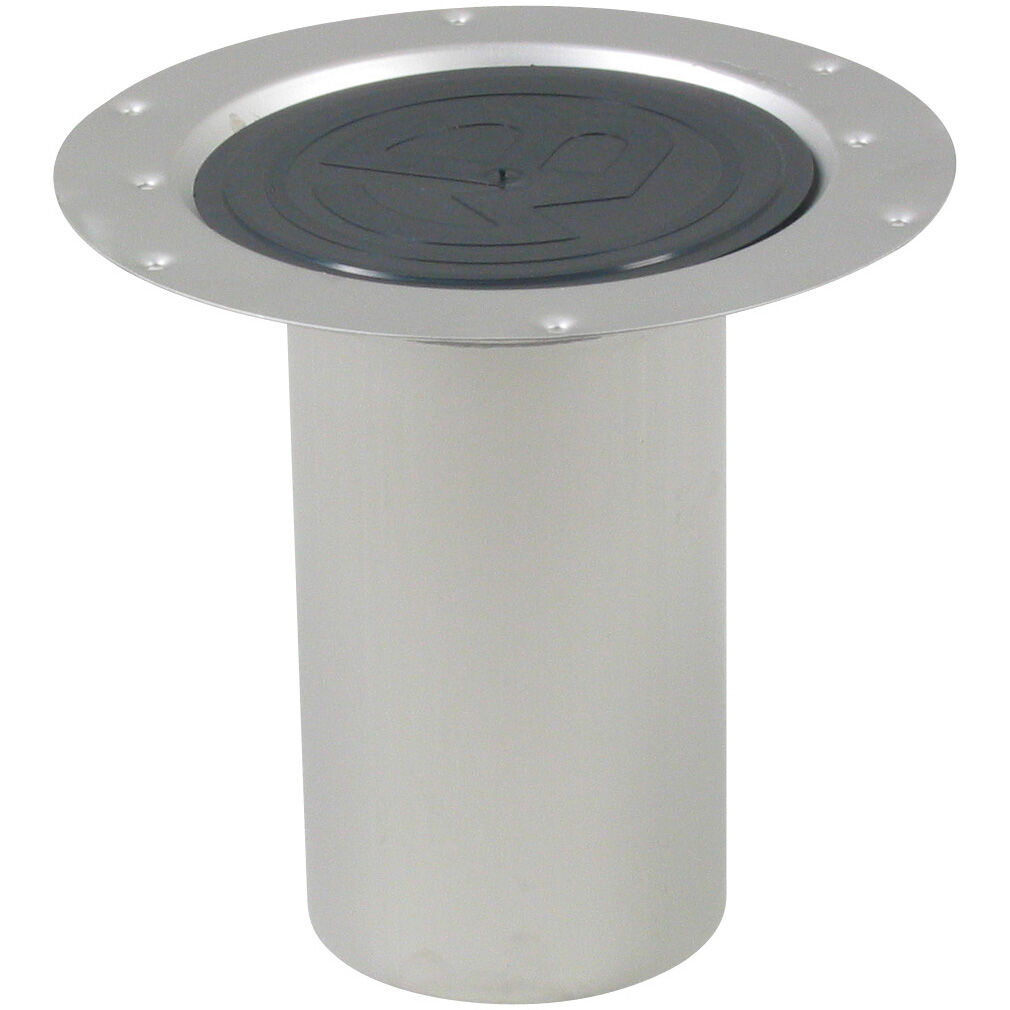

UPPER PART CIRCLE, LONG - (210.300.001 S)
×
![]()
Part Of the Series: Upper part-Vinyl-155
Type no.: 210.300.001 S
EAN no.: 5705499117998
VVS no.: 153614750
LVI no.: 3303896
Size: Ø155
UPPER PART CIRCLE, LONG
-No supporting ring
-Floor: vinyl
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |

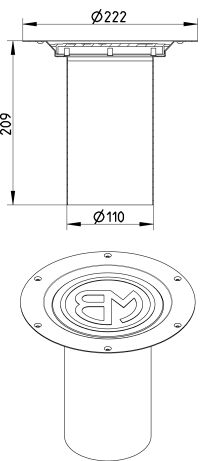

| Minimum Height (mm) | 209 |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 0,81 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
