UPPER PART - (710.402.000 S)
×
![]()
Part Of the Series: Upper part-No membrane-200
Type no.: 710.402.000 S
EAN no.: 5705499108132
VVS no.: 153018116
LVI no.: 3303806

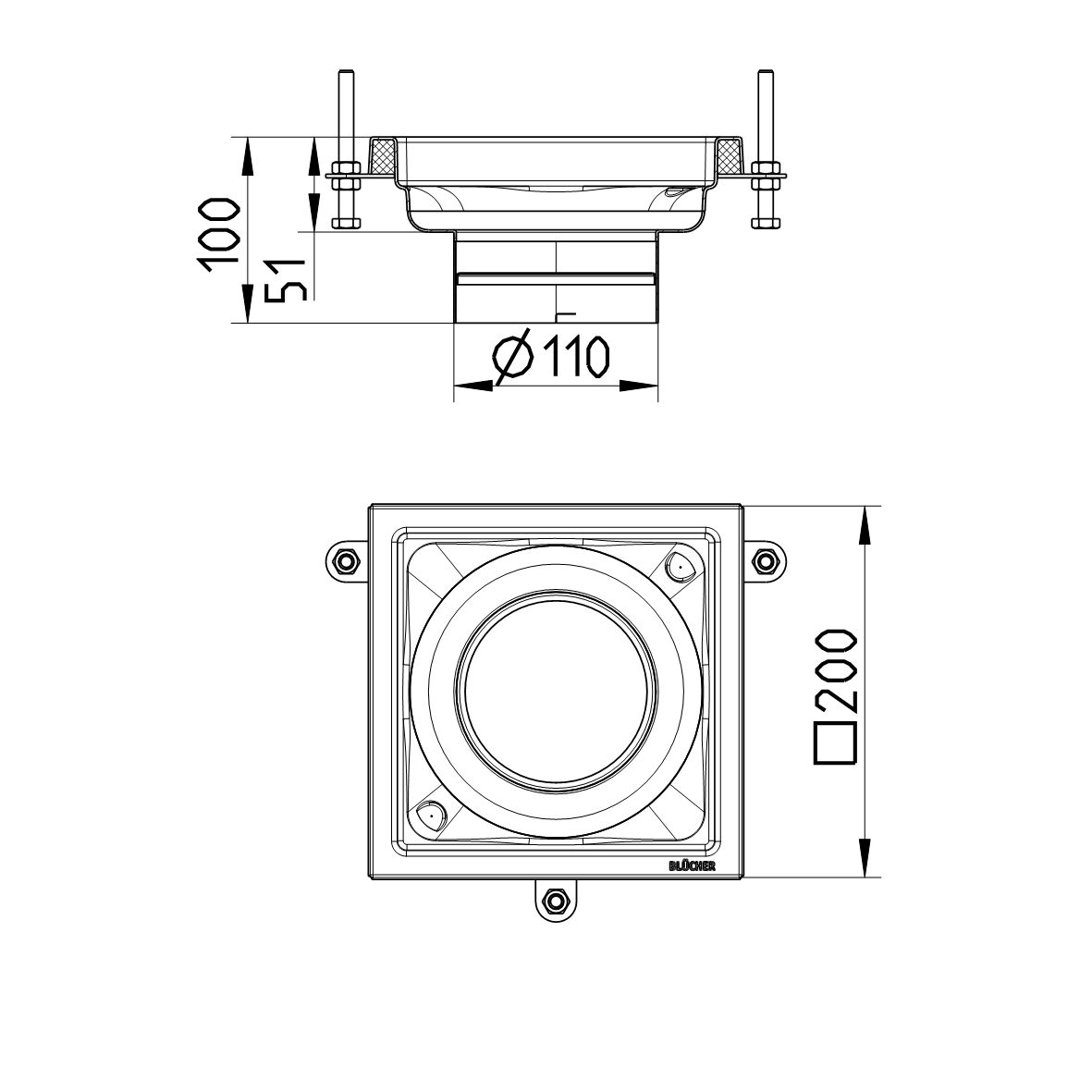

Size: 200x200
UPPER PART
-With supporting ring for water trap
-Floor: concrete and tiled
-Frame: 200x200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 1,19 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
