LADDER GRATING CHANNEL - (697.125.150.50)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.125.150.50
EAN no.: 5705499103465
VVS no.: 154255015
NRF no.: 3397162
Size: 150x500

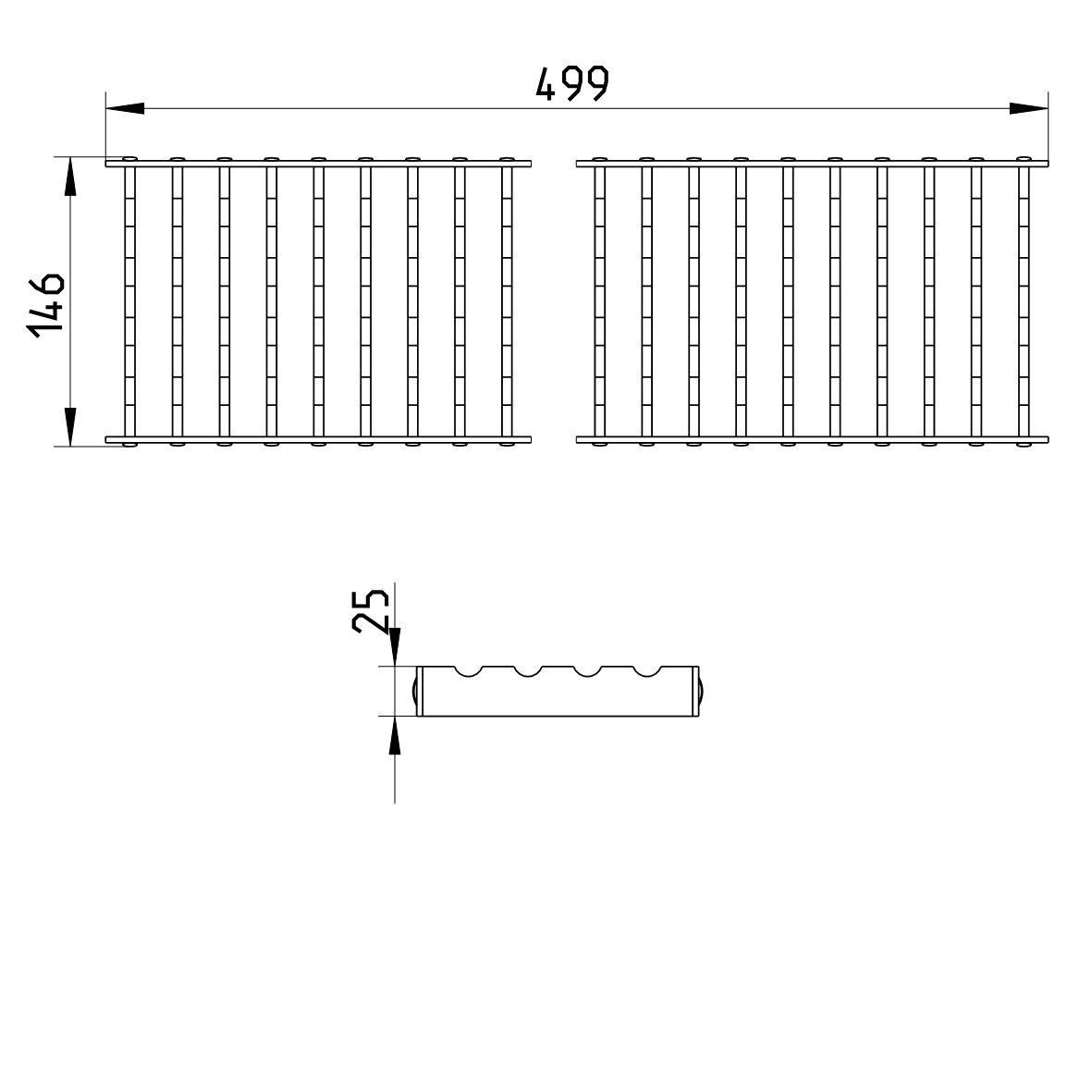

LADDER GRATING CHANNEL
-25mm height
-Grating: 145x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (10000) |
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (20.000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 3,30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
