LADDER GRATING CHANNEL, NON-TILT - (697.127.150.50 S)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.127.150.50 S
EAN no.: 5705499001945
Size: 150x500
LADDER GRATING CHANNEL, NON-TILT
-25mm height

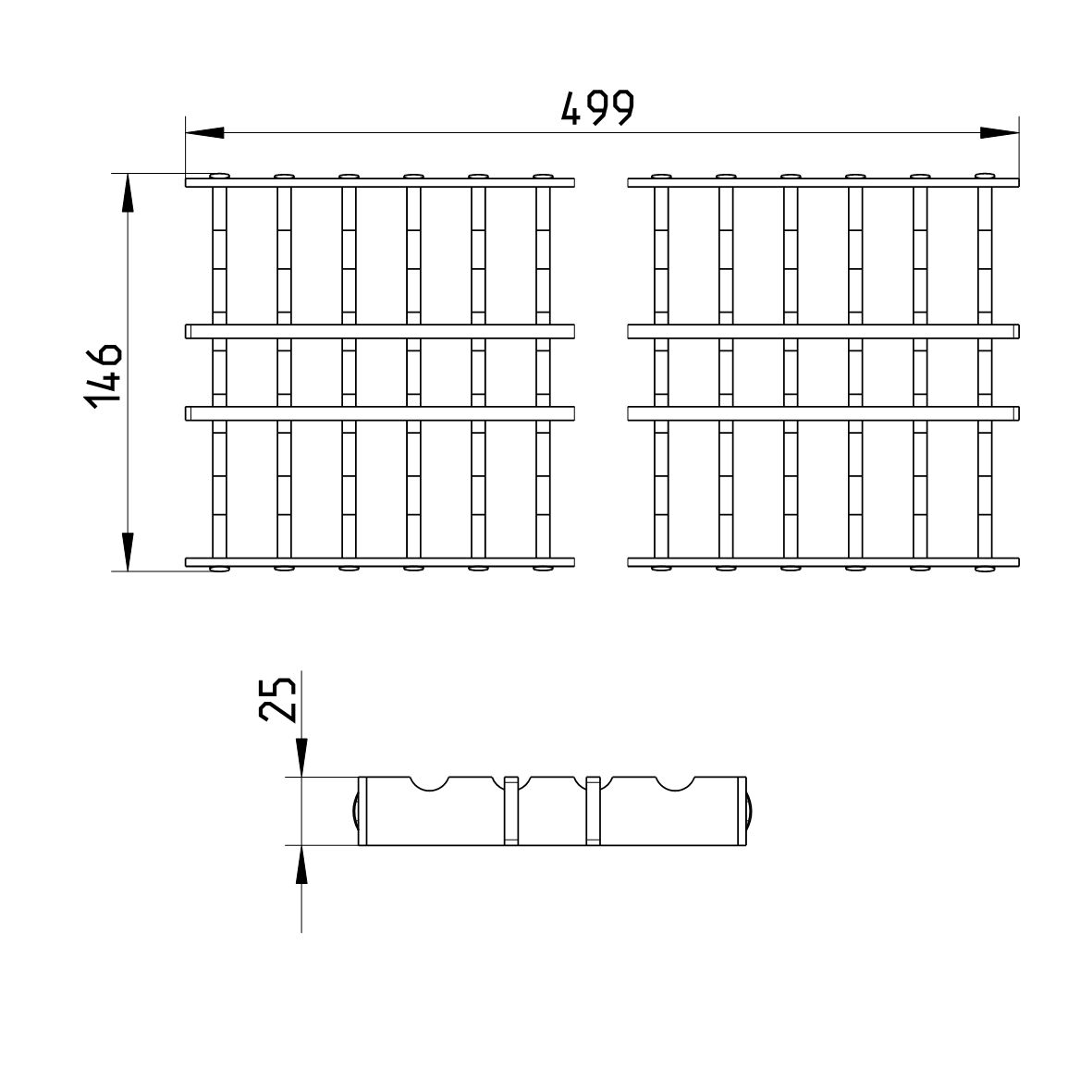

-Grating: 145x499mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (20.000) |
| Load class EN1433(lbs) | C250 (44092) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 4,07 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
