MESH GRATING CHANNEL - (696.223.144.49)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 696.223.144.49
EAN no.: 5705499124415
RSK no.: 7121856
NRF no.: 3397138
LVI no.: 3304954
Size: 150x500

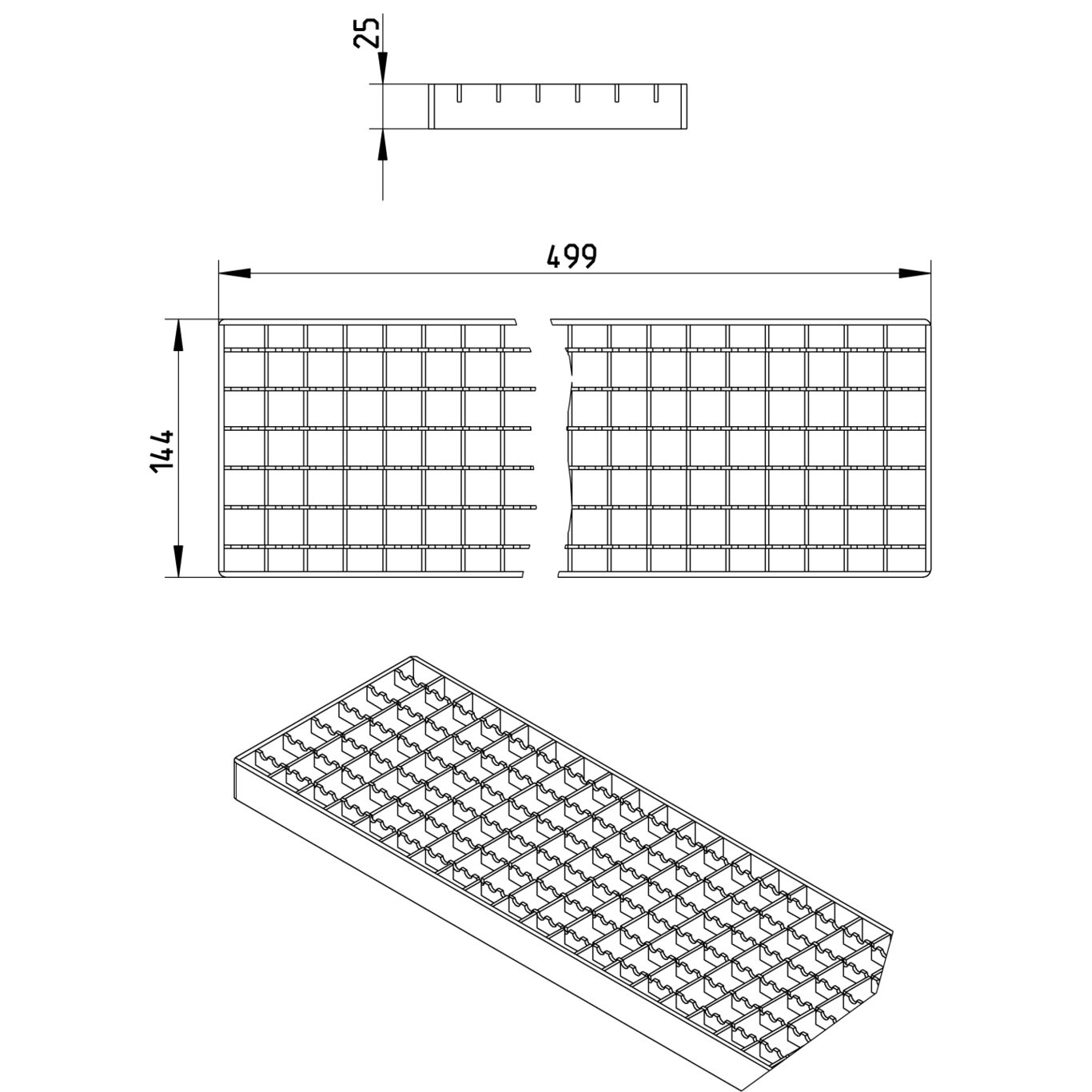

MESH GRATING CHANNEL
-Grating: 144x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (3500) |
| Load Class EN1433 | B125 |
| Load Class EN1433 (kg) | B125 (9.000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 2,24 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
