SLOT GRATING CHANNEL - (697.200.150.99)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.200.150.99
EAN no.: 5705499115499
NRF no.: 3397172
Size: 150x1000

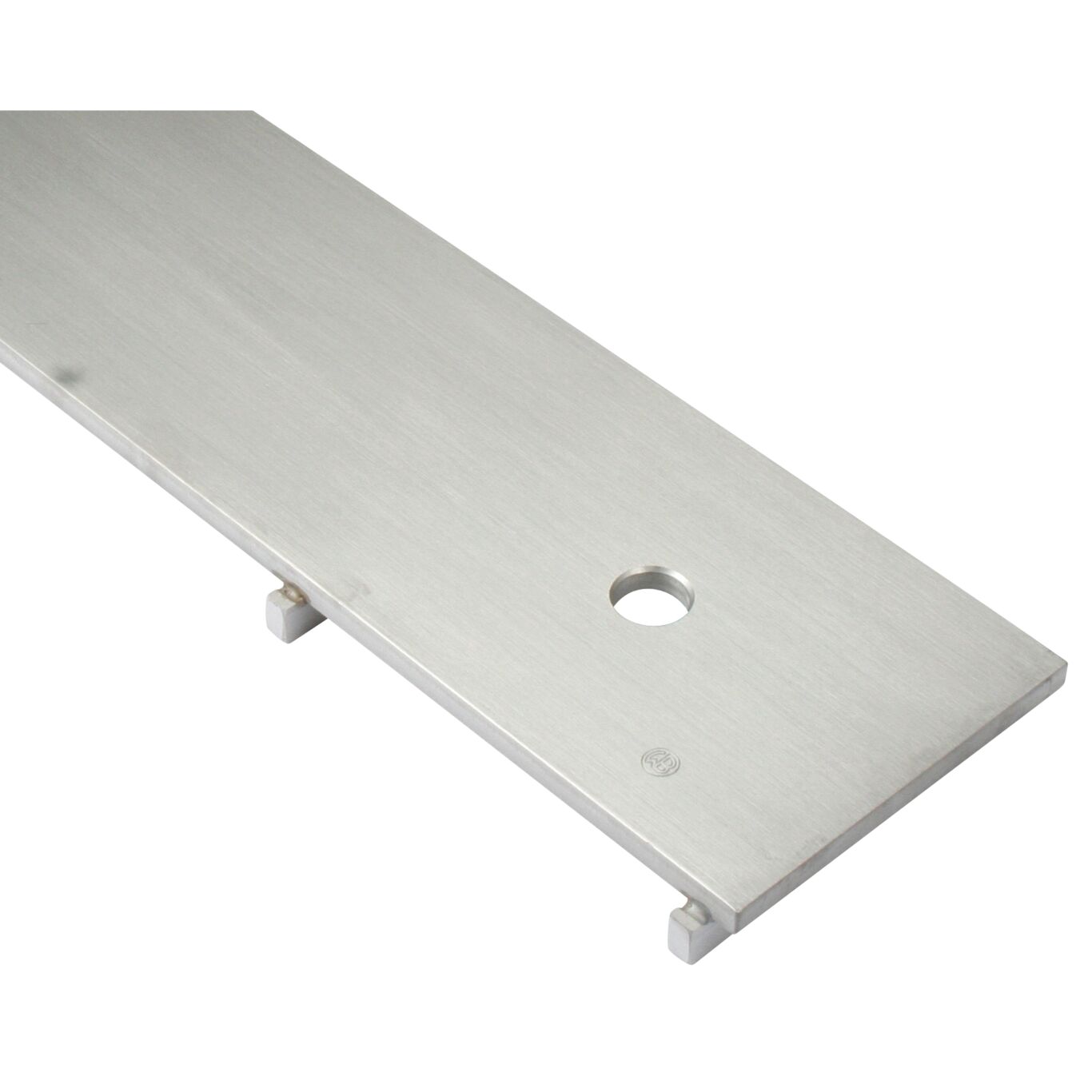

SLOT GRATING CHANNEL

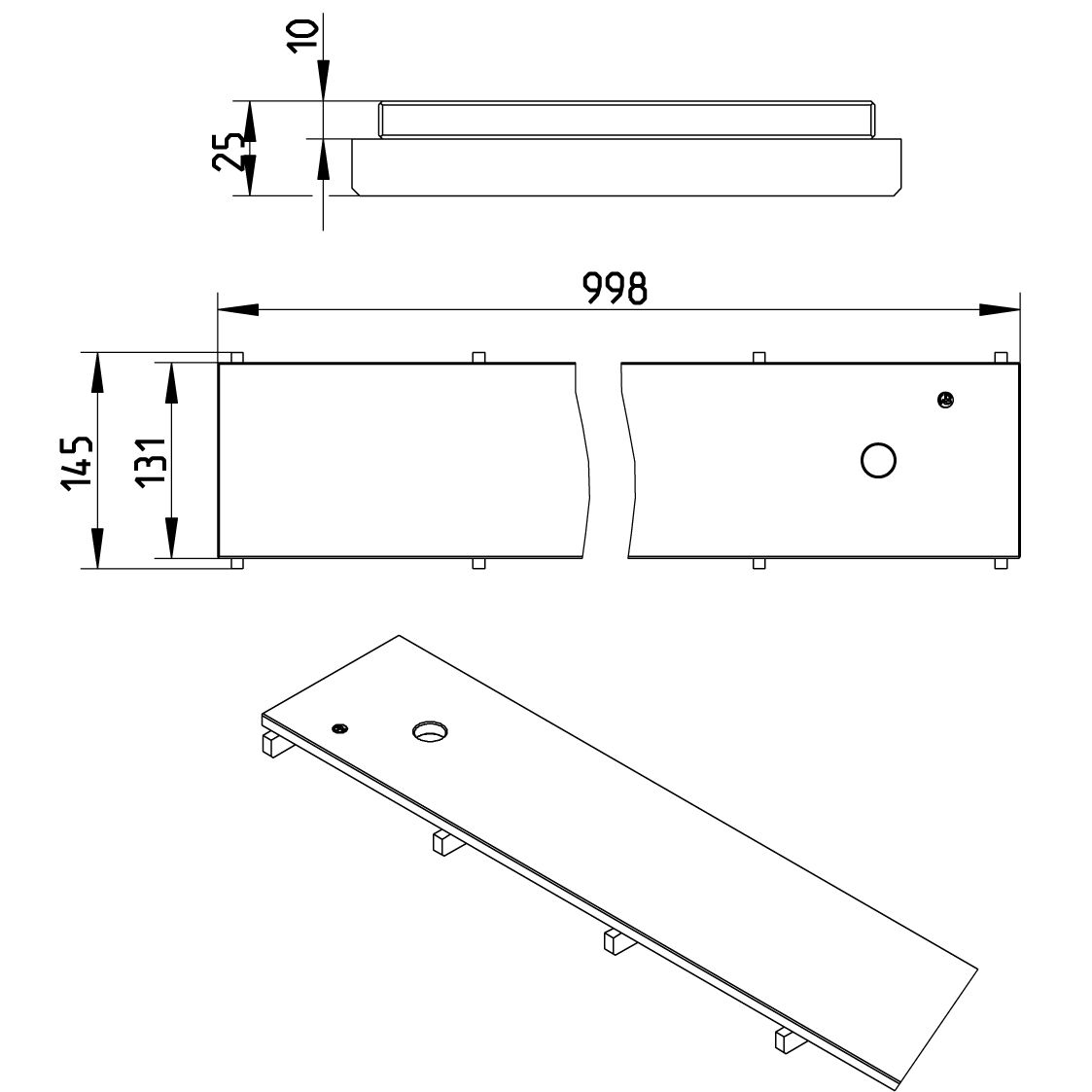

-Grating: 145x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (14000) |
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (20.000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x1000 |
| Weight (kg) | 11,24 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
