MESH GRATING CHANNEL - (696.223.194.49 S)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 696.223.194.49 S
EAN no.: 5705499124484
Size: 200x500
MESH GRATING CHANNEL

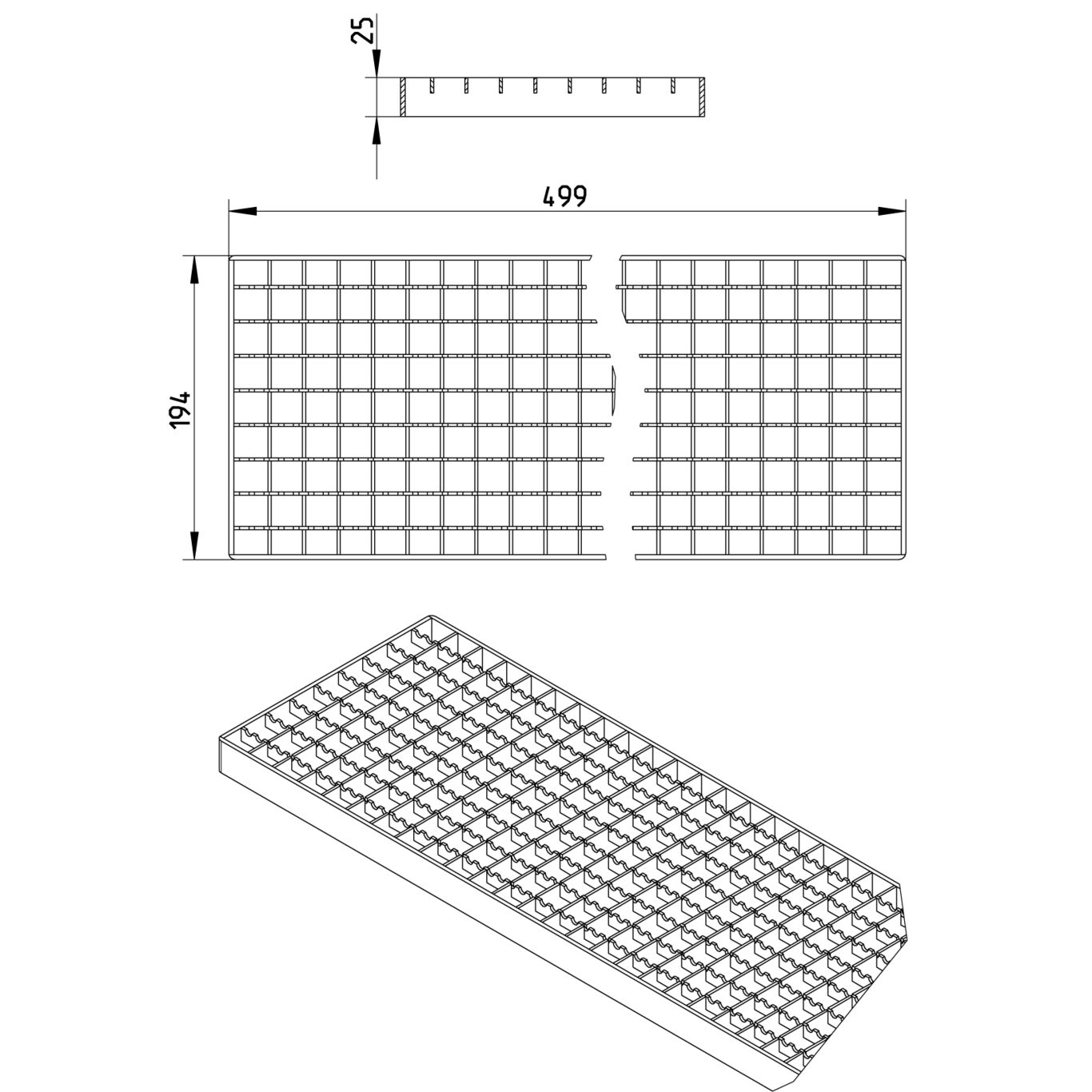

-Grating: 194x499mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (4000) |
| Load Class EN1433 | A15 |
| Load Class EN1433 (kg) | A15 (4.000) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x500 |
| Weight (kg) | 2,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
