MESH GRATING CHANNEL - (696.223.294.49)
×
![]()
Part Of the Series: Grating-Channel-300
Type no.: 696.223.294.49
EAN no.: 5705499131505
RSK no.: 7120424
NRF no.: 3397143
LVI no.: 3303408
Size: 300x500
MESH GRATING CHANNEL

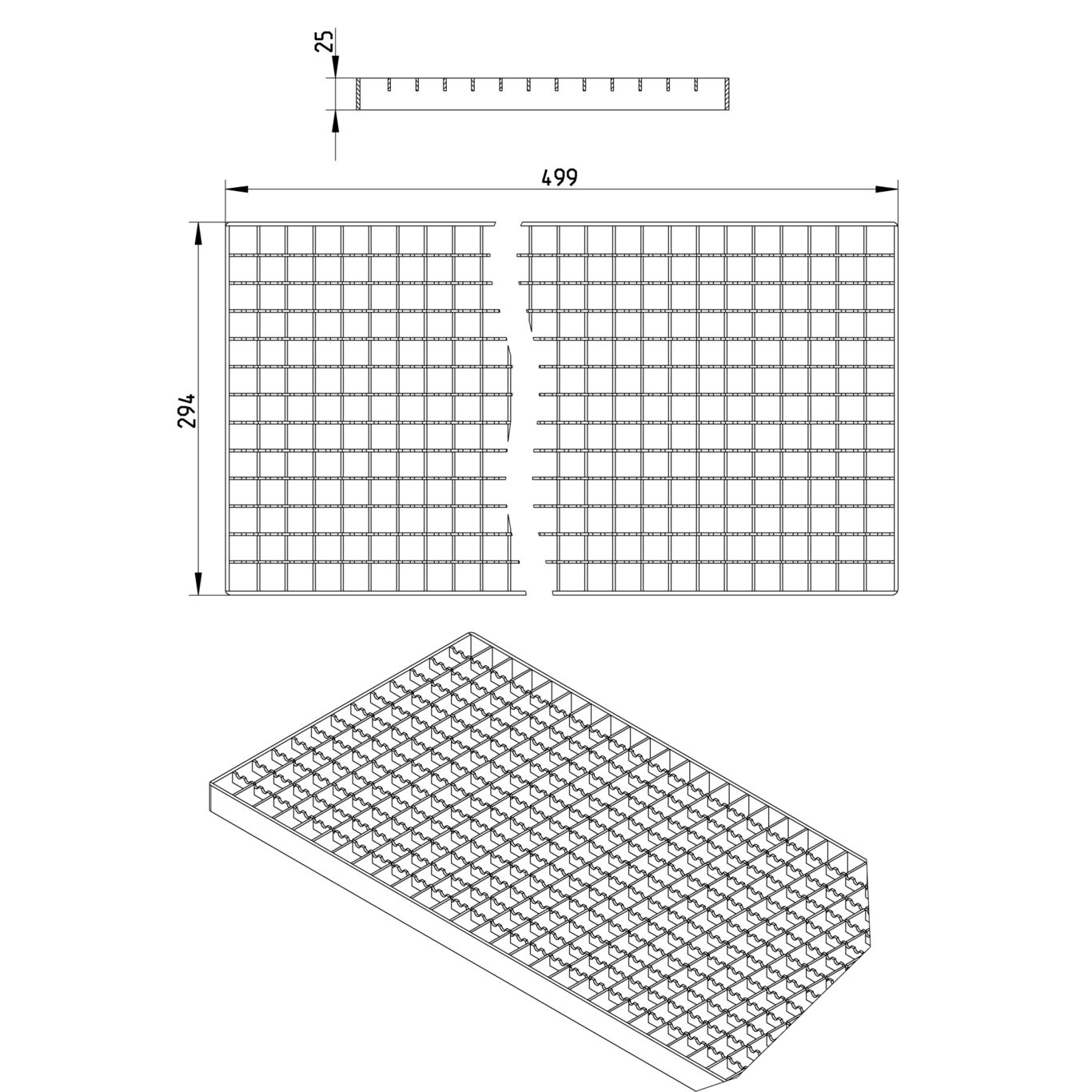

-Grating: 294x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (2000) |
| Load Class EN1433 | A15 |
| Load Class EN1433 (kg) | A15 (4.000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 300x500 |
| Weight (kg) | 4,05 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
