GRATING SQUARE ATHENS - (610.155.427)
×
![]()
Part Of the Series: Grating-Drain-145
Type no.: 610.155.427
EAN no.: 5705499122848
VVS no.: 153864240
RSK no.: 7121712
NRF no.: 3394824
Size: 140x140

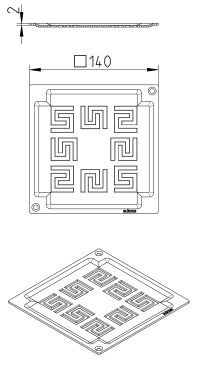

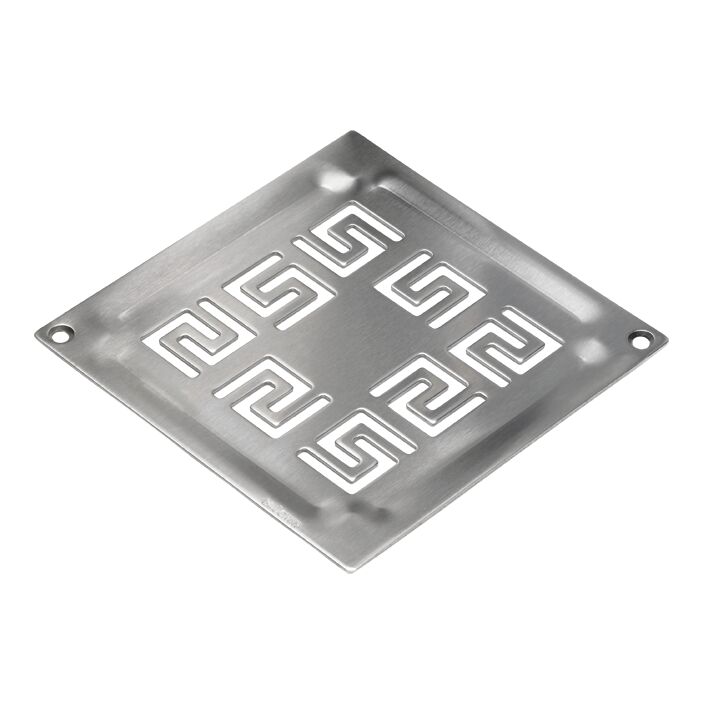

GRATING SQUARE ATHENS
-With screw lock
-Grating: 140x140mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 3 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 140x140 |
| Weight (kg) | 0,26 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
