GRATING SQUARE HYGIENIC-PRO - (610.155.501)
×
![]()
Part Of the Series: Grating-Drain-145
Type no.: 610.155.501
EAN no.: 5705499128376
RSK no.: 7122016
LVI no.: 3305783
Size: 140x140

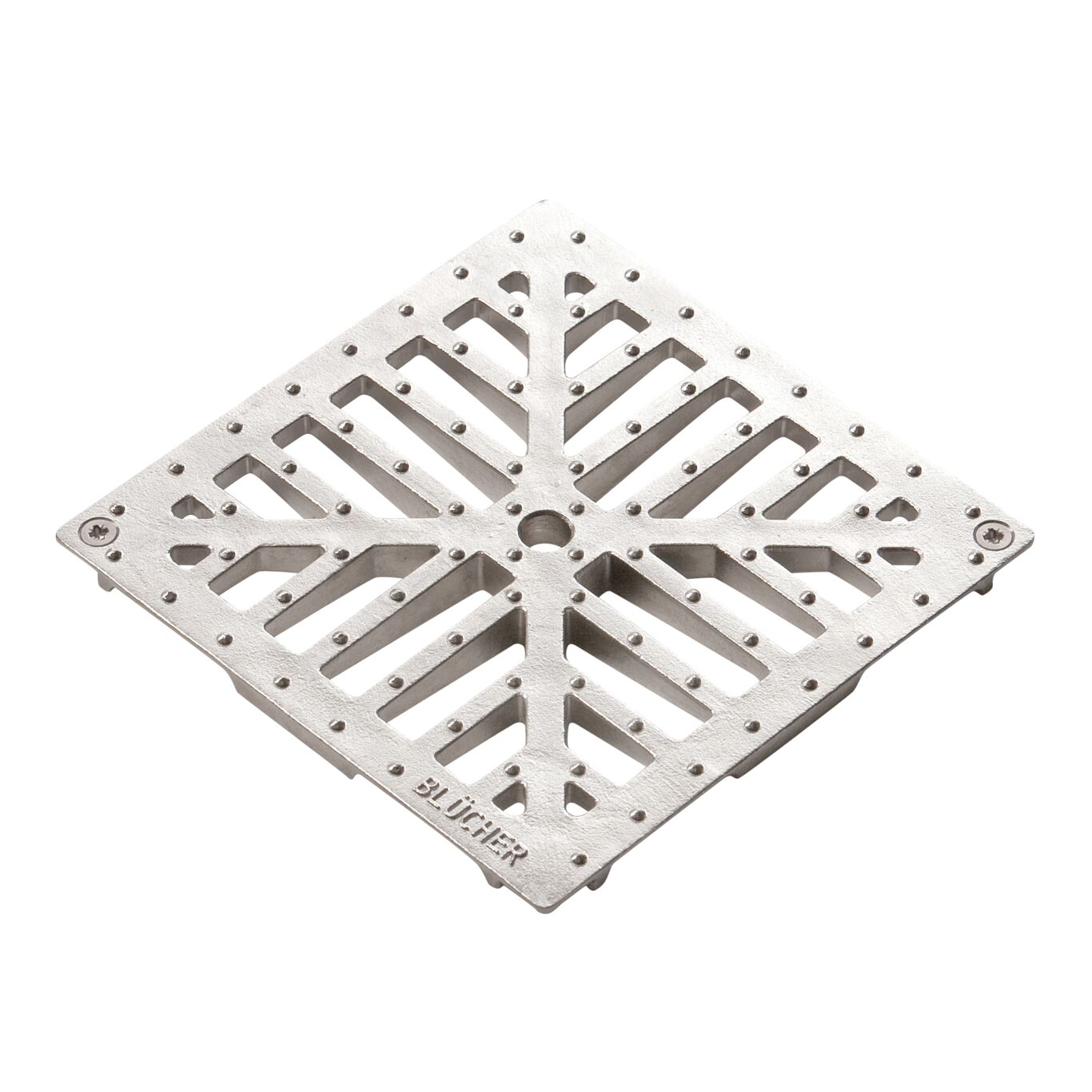

GRATING SQUARE HYGIENIC-PRO
-With screw lock
-Grating: 140x140mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (3000) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 12 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 140x140 |
| Weight (kg) | 0,65 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
