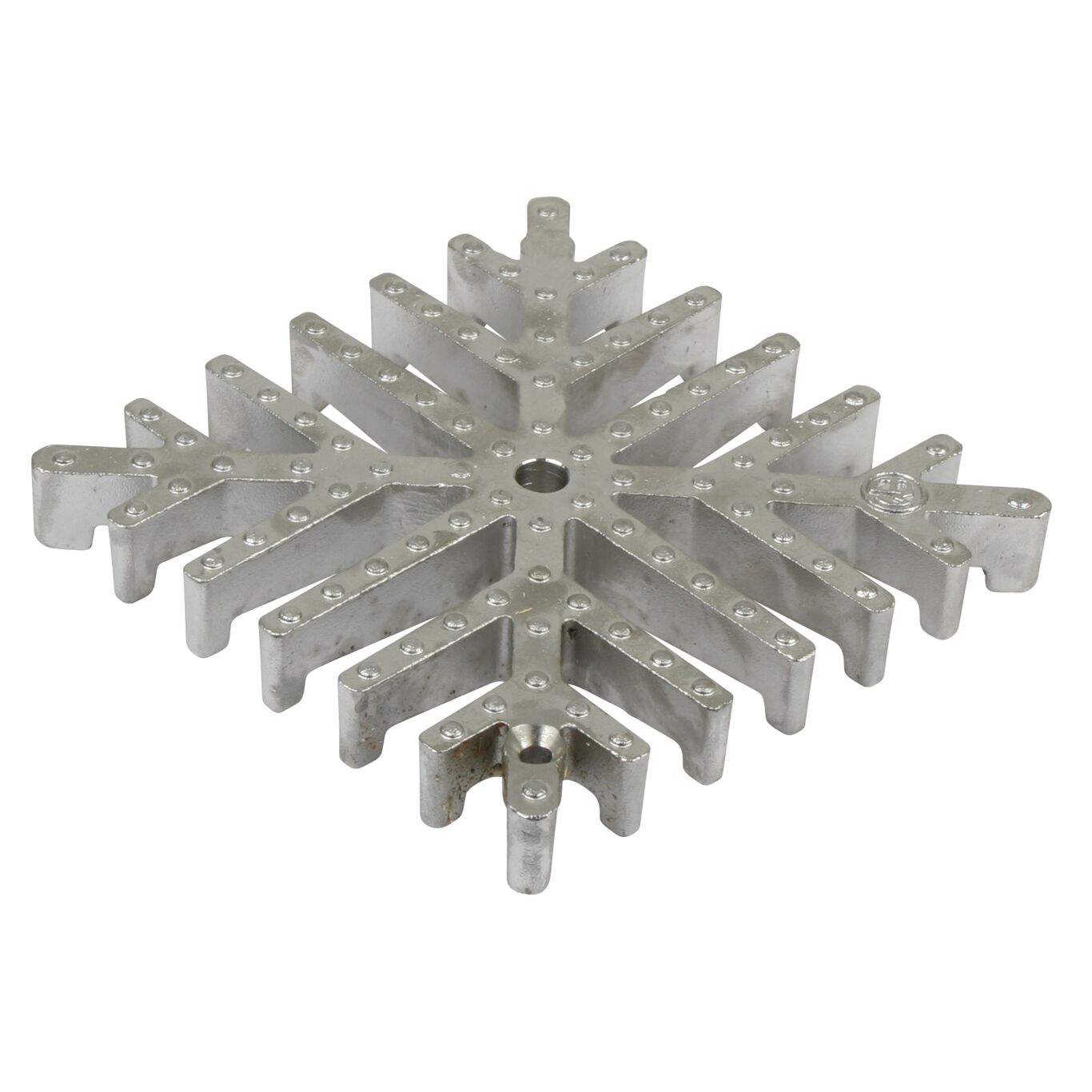

HYGIENICPRO GRATING SQUARE - (790.168.001.60)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.001.60
EAN no.: 5705499113563
RSK no.: 7125521
LVI no.: 3305798
Size: 200x200
HYGIENICPRO GRATING SQUARE
-With screw lock
-Grating: 170x170mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (7000) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 24 |
| Non-slip | R10 |
| Number of Screws | 1 |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 2,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
