MESH GRATING COMPACT DRAIN - (696.243.167.167)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 696.243.167.167
EAN no.: 5705499140323
Size: 200x200
MESH GRATING COMPACT DRAIN

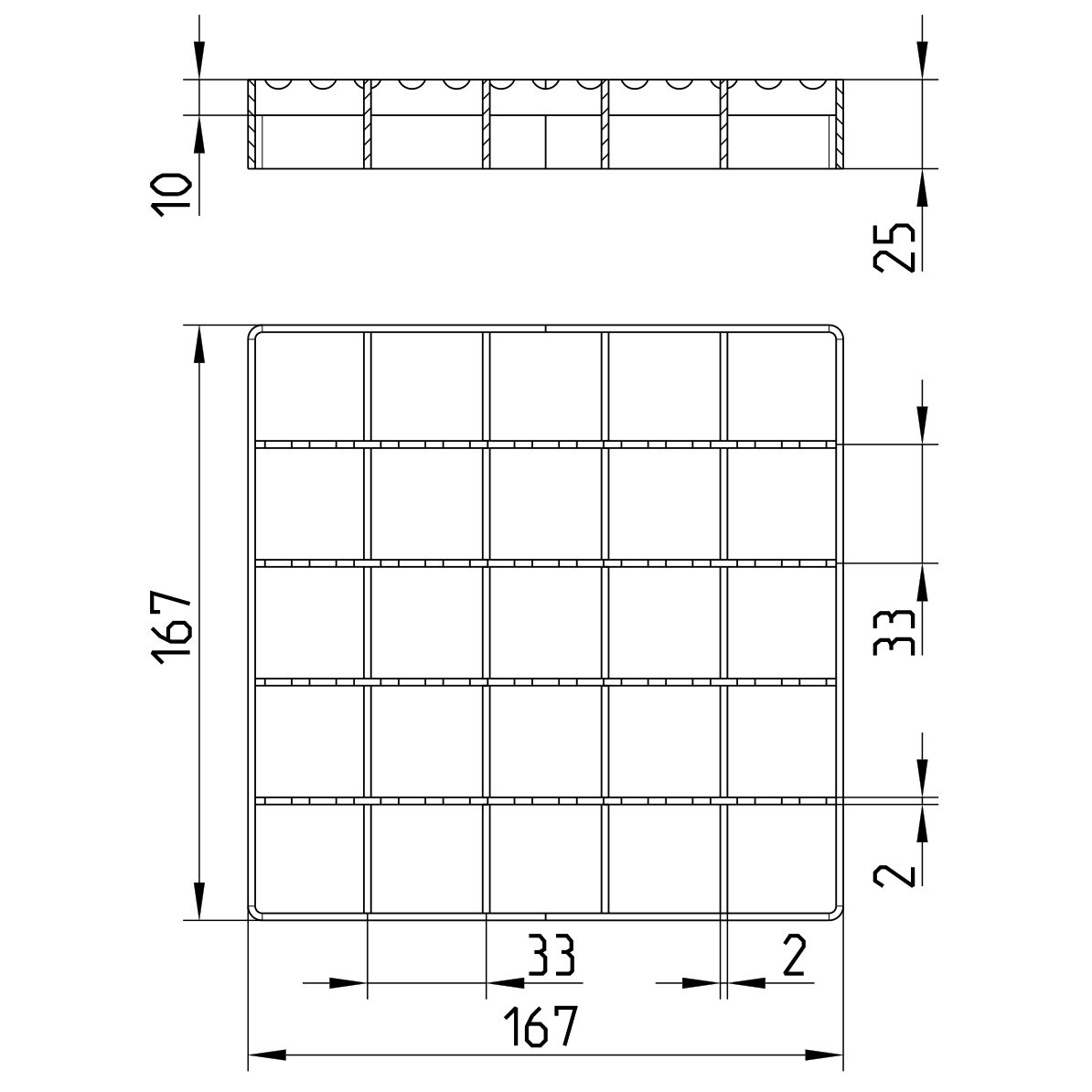

-Grating: 167x167mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1500) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Non-slip | R12 |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 0,60 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
