LADDER GRATING CIRCLE - (790.173.000.28)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.28
EAN no.: 5705499128628
RSK no.: 7123464
NRF no.: 3397192
Size: Ø195

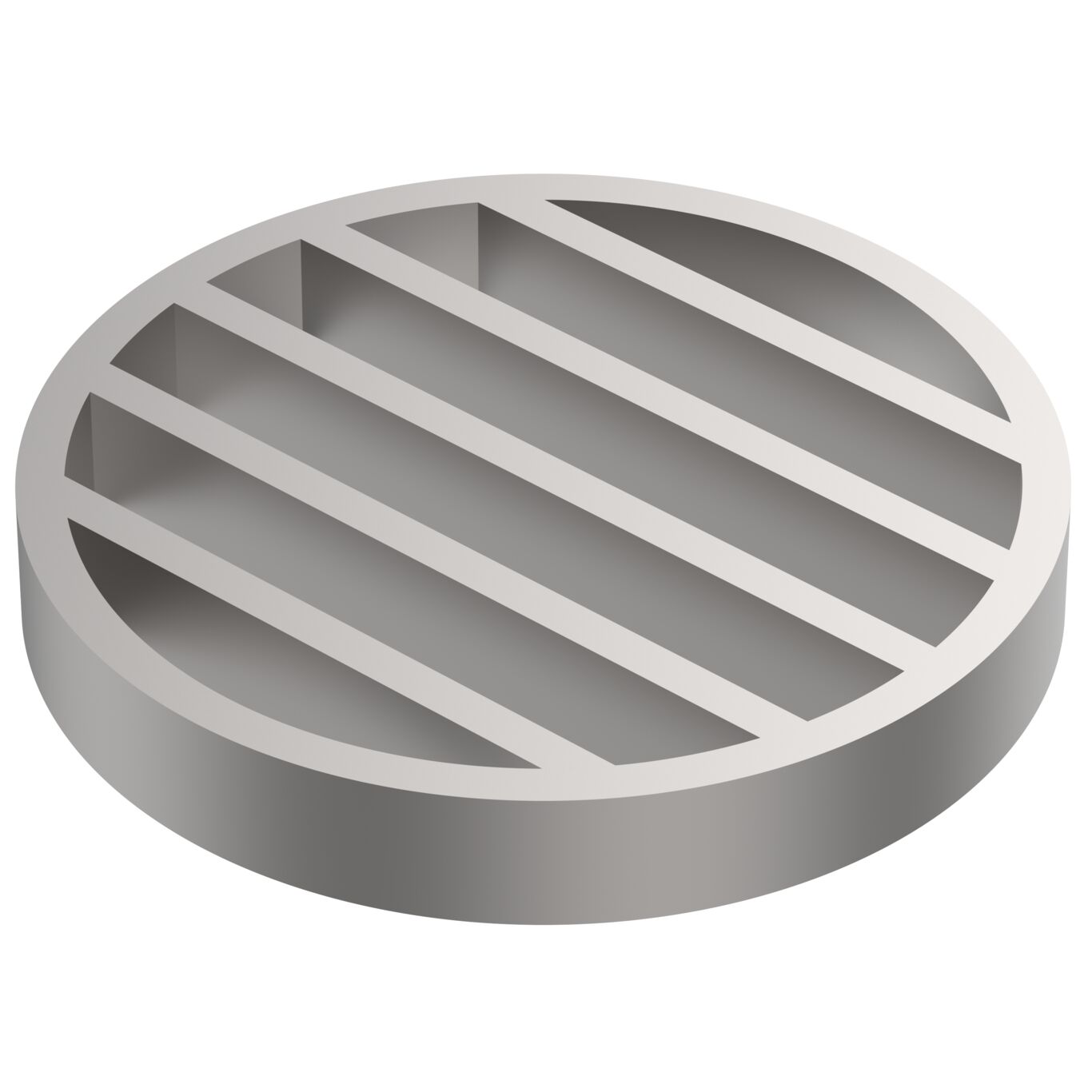

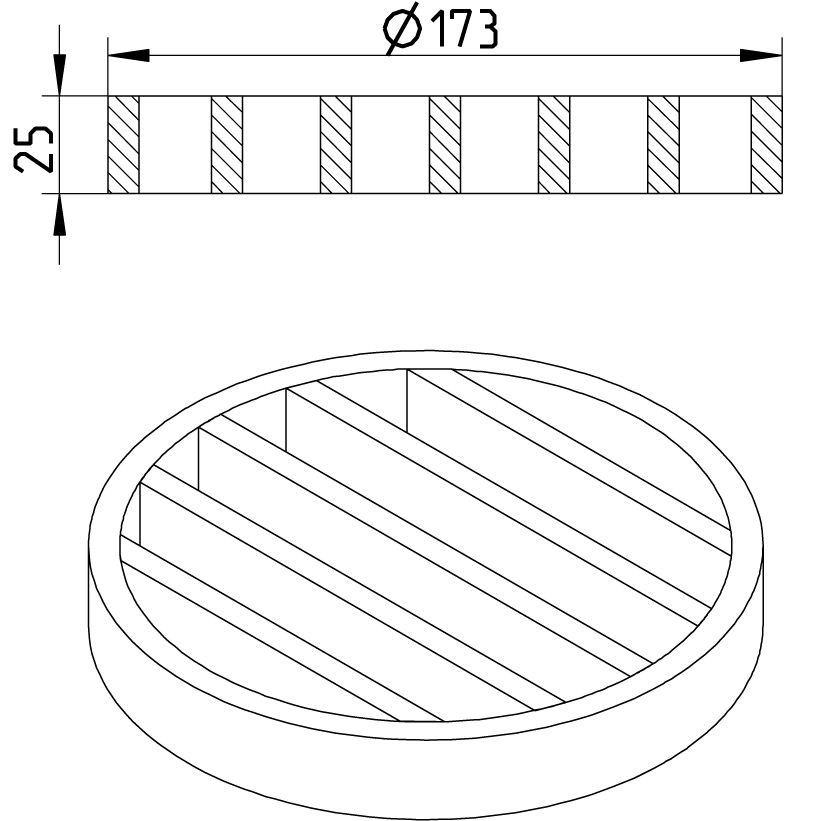

LADDER GRATING CIRCLE
-8mm material, fully welded
-Grating: Ø173mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | N250 |
| Load Class EN1253 (kg) | N250 (16666) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø195 |
| Weight (kg) | 3,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
