SLOT GRATING CIRCLE - (790.173.000.10)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.10
EAN no.: 5705499113587
RSK no.: 7123460
NRF no.: 3397191
LVI no.: 3304053
Size: Ø195

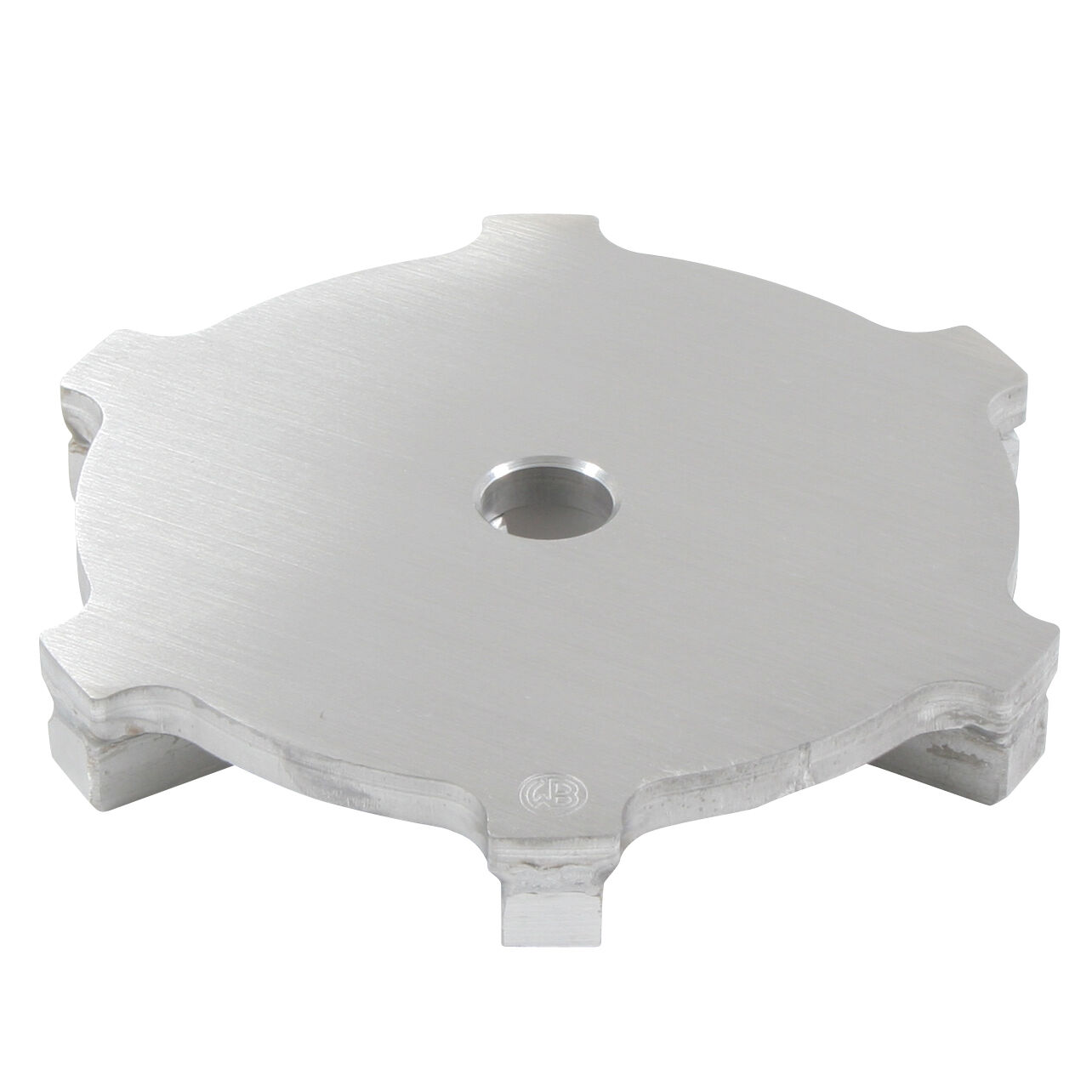

SLOT GRATING CIRCLE
-Grating: Ø173mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (10000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø195 |
| Weight (kg) | 2,02 |
-
Approval Information
For approval information, please refer to the below approval certificates.
