LADDER GRATING SQUARE - (790.218.000.25 S)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.25 S
EAN no.: 5705499001969
Size: 250x250
LADDER GRATING SQUARE

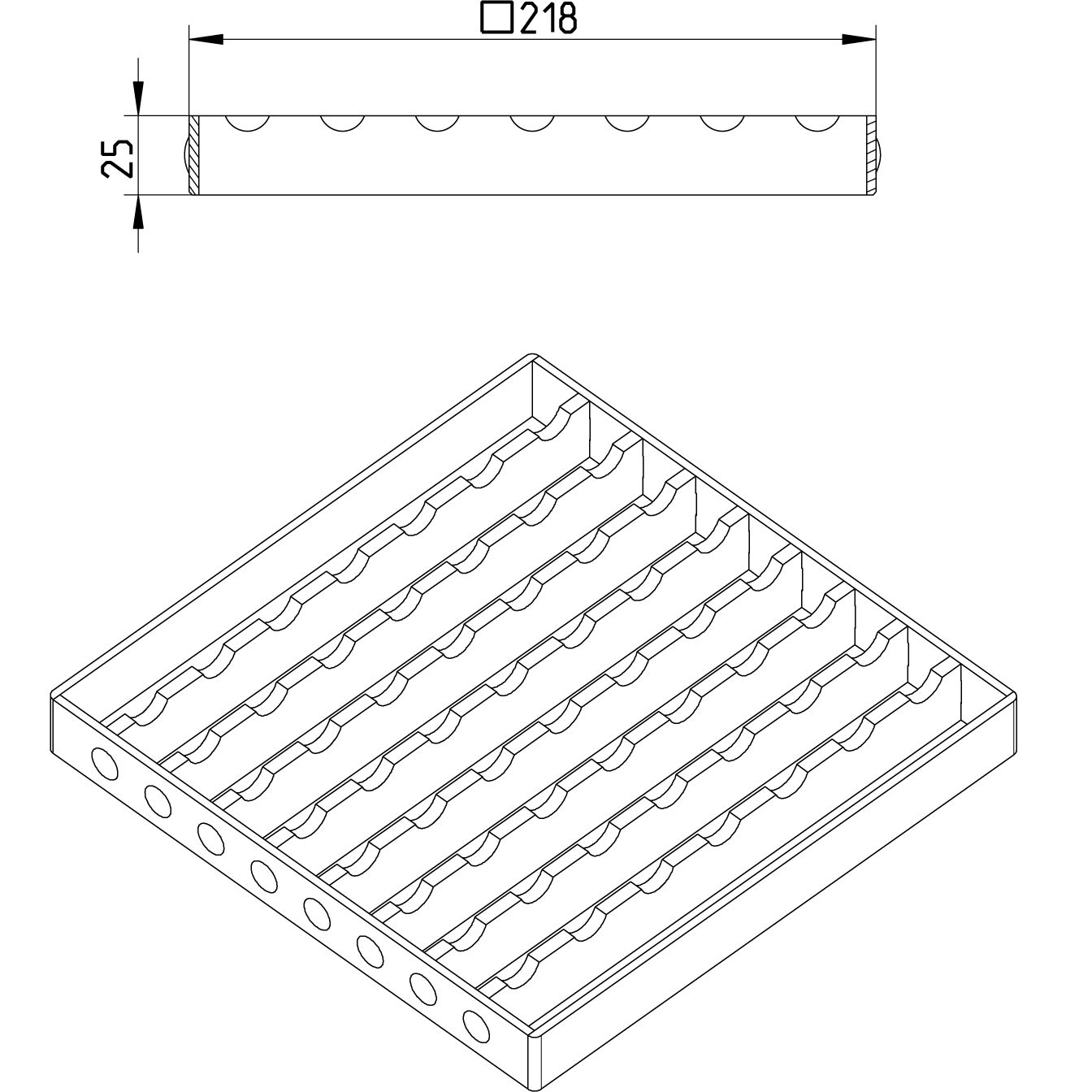

-Grating: 218x218mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1433 | A15 |
| Load Class EN1433 (kg) | A15 (4.000) |
| Load class EN1433(lbs) | A15 (8818) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 250x250 |
| Weight (kg) | 2,05 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
