SLOT GRATING SQUARE - (790.218.000.10)
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.10
EAN no.: 5705499128710
Size: 250x250

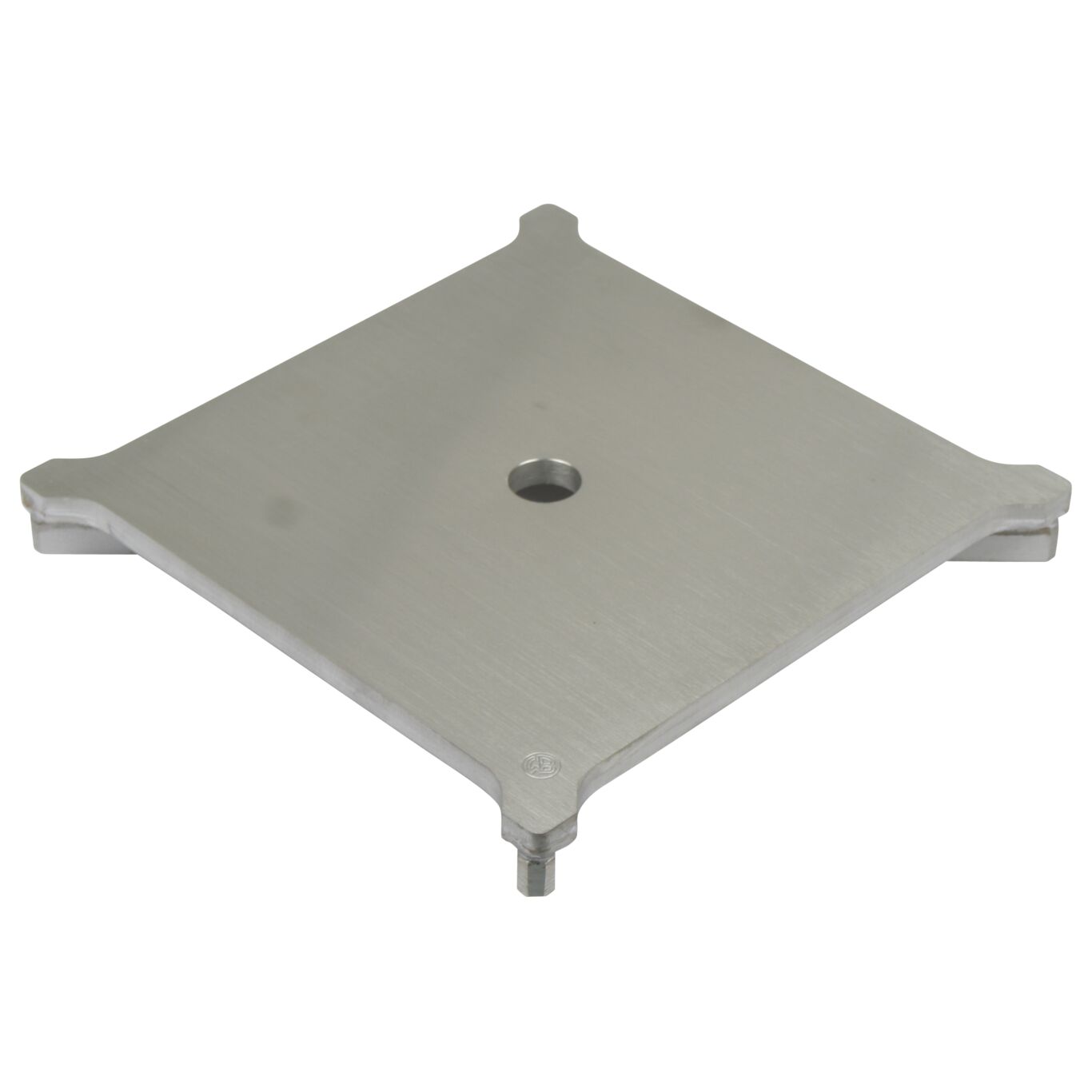

SLOT GRATING SQUARE

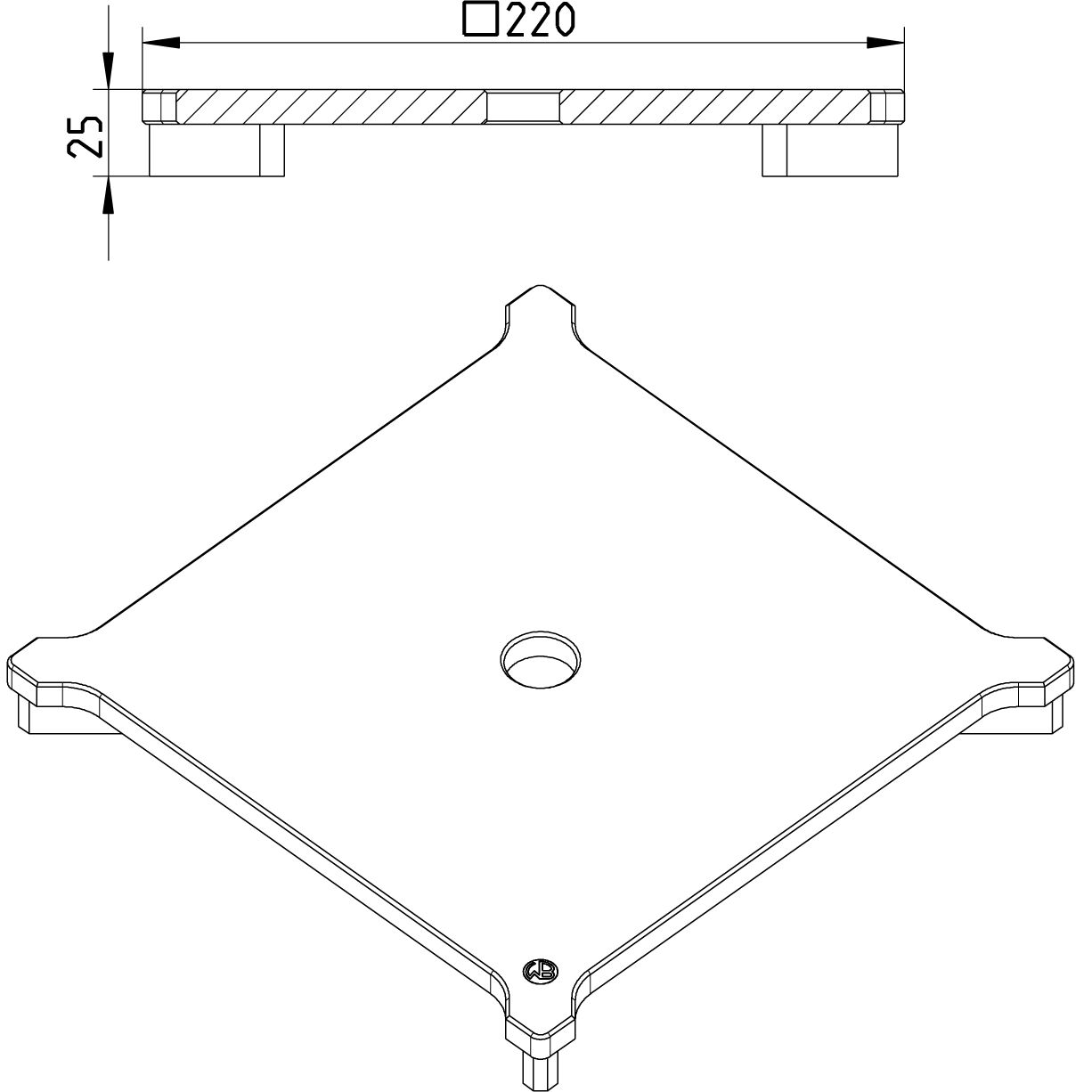

-Grating: 220x220mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Load Class EN1253 | R50 |
Load Class EN1253 (kg) | R50 (5000) |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 25 |
Non-slip | R10 |
Number of Screws | 0 |
Shape | Square |
Size (mm) | 250x250 |
Weight (kg) | 3,44 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
